Figure 7-77 and Figure 7-78 show the DQS and DQ/DM routing.

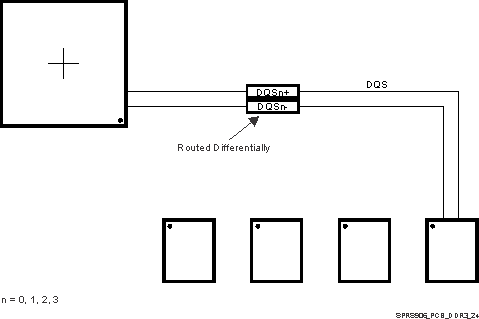

Figure 7-77 DQS Routing With Any Number of Allowed DDR3 Devices

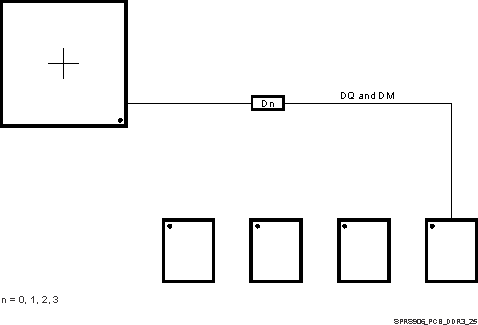

Figure 7-78 DQ/DM Routing With Any Number of Allowed DDR3 Devices
