Figure 7-59 shows the topology of the CK net classes and Figure 7-60 shows the topology for the corresponding ADDR_CTRL net classes.

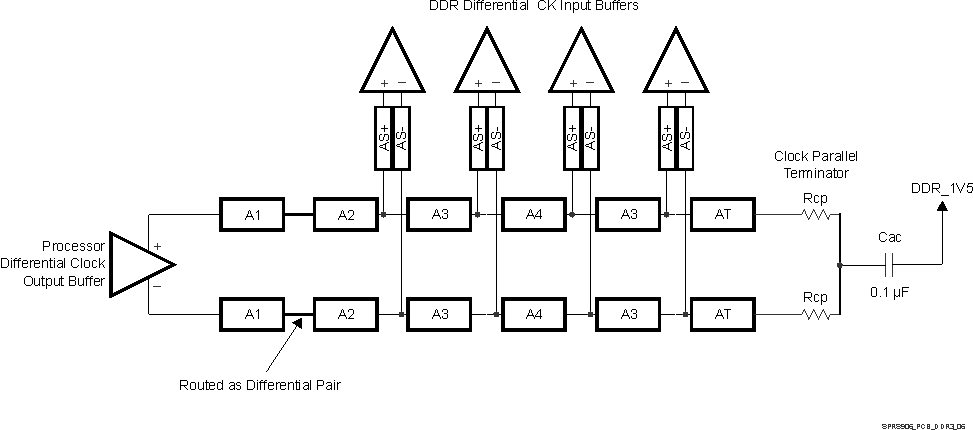

Figure 7-59 CK Topology for Four x8 DDR3 Devices

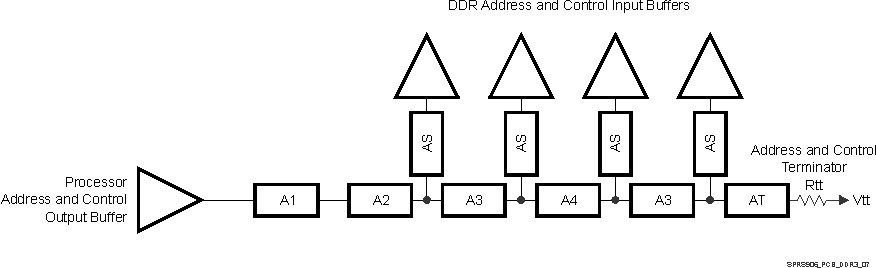

Figure 7-60 ADDR_CTRL Topology for Four x8 DDR3 Devices
