ZHCS986B May 2012 – December 2018 TLV320DAC3203
PRODUCTION DATA.
- 1 特性
- 2 應用
- 3 描述
- 4 修訂歷史記錄
- 5 Pin Configuration and Functions
-
6 Specifications
- 6.1 Absolute Maximum Ratings
- 6.2 ESD Ratings
- 6.3 Recommended Operating Conditions
- 6.4 Thermal Information
- 6.5 Electrical Characteristics, Bypass Outputs
- 6.6 Electrical Characteristics, Microphone Interface
- 6.7 Electrical Characteristics, Audio Outputs
- 6.8 Electrical Characteristics, LDO
- 6.9 Electrical Characteristics, Misc.
- 6.10 Electrical Characteristics, Logic Levels
- 6.11 Typical Timing Characteristics — Audio Data Serial Interface Timing (I2S)
- 6.12 Typical DSP Timing Characteristics
- 6.13 I2C Interface Timing
- 6.14 SPI Interface Timing (See )
- 6.15 Typical Characteristics
-
7 Detailed Description
- 7.1 Overview
- 7.2 Functional Block Diagram
- 7.3 Feature Description
- 7.4 Device Functional Modes
- 7.5 Register Maps
- 8 Application and Implementation
- 9 Power Supply Recommendations
- 10Layout
- 11器件和文檔支持
- 12機械、封裝和可訂購信息
封裝選項
機械數據 (封裝 | 引腳)
散熱焊盤機械數據 (封裝 | 引腳)
- RGE|24
訂購信息
6.15 Typical Characteristics

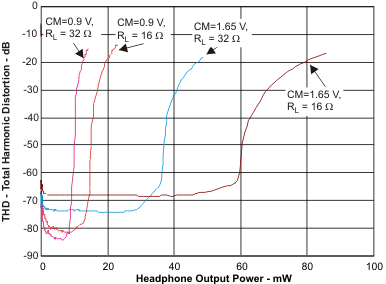

Figure 7. Total Harmonic Distortion vs Headphone Output Power

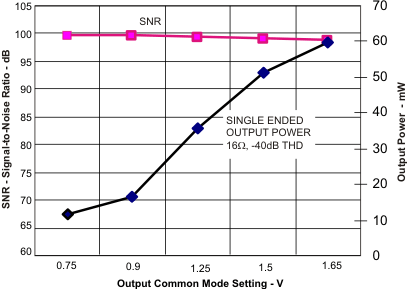

Figure 9. Headphone SNR and SE Output Power vs Output Common Mode Setting

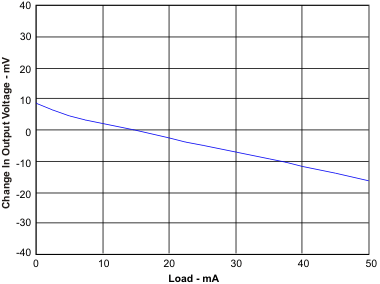

Figure 11. LDO Load Response

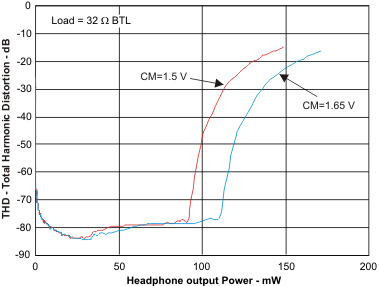

Figure 8. Total Harmonic Distortion vs Headphone Output Power

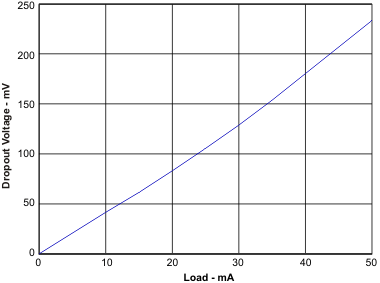

Figure 10. LDO Dropout Voltage vs Load Current

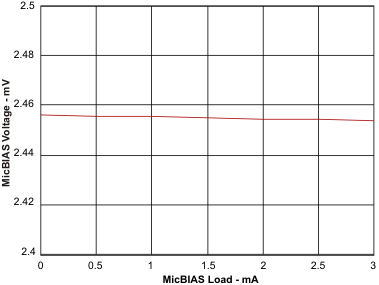

Figure 12. MICBIAS Mode 2, CM = 0.9 V, LDOIN OP Stage vs MICBIAS Load Current
