6.14 SPI Interface Timing (See Figure 6)
All specifications at 25°C, DVdd = 1.8V| IOVDD=1.8V | IOVDD=3.3V | UNITS | |||||||
|---|---|---|---|---|---|---|---|---|---|
| MIN | TYP | MAX | MIN | TYP | MAX | ||||
| tsck | SCLK Period | 100 | 50 | ns | |||||
| tsckh | SCLK Pulse width High | 50 | 25 | ns | |||||
| tsckl | SCLK Pulse width Low | 50 | 25 | ns | |||||
| tlead | Enable Lead Time | 30 | 20 | ns | |||||
| tlag | Enable Lag Time | 30 | 20 | ns | |||||
| td;seqxfr | Sequential Transfer Delay | 40 | 20 | ns | |||||
| ta | Slave DOUT access time | 40 | 20 | ns | |||||
| tdis | Slave DOUT disable time | 40 | 25 | ns | |||||
| tsu | DIN data setup time | 15 | 10 | ns | |||||
| th;DIN | DIN data hold time | 15 | 10 | ns | |||||
| tv;DOUT | DOUT data valid time | 45 | 25 | ns | |||||
| tr | SCLK Rise Time | 4 | 4 | ns | |||||
| tf | SCLK Fall Time | 4 | 4 | ns | |||||

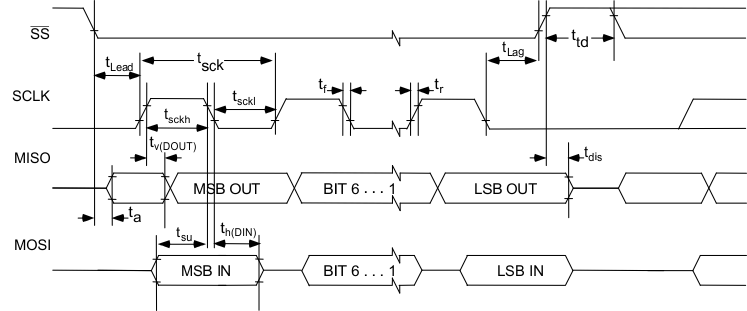

Figure 6. SPI Interface Timing Diagram
