8.2.2.2 Application Curves
The graphs given below show the gain, input and output return loss and OIP3 of the design shown in Figure 8-1.

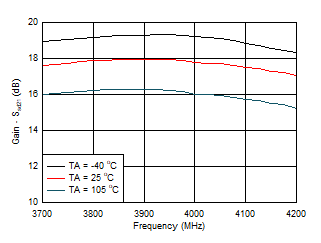

Figure 8-6 Gain
vs Frequency
A.

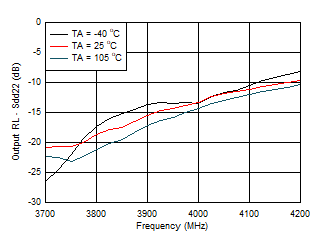

Figure 8-8 Output Return Loss vs Frequency
A.

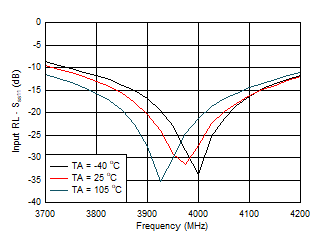

Figure 8-7 Input
Return Loss vs Frequency
A.
B.

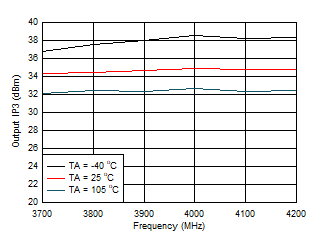

Figure 8-9 Output IP3 vs Frequency and Temperature| POUT/TONE = 2 dBm, 10-MHz tone spacing |
