8.2.1.3 Application Curves
The graphs given below show the gain, input return loss and output return loss of the design with different AFE terminations.

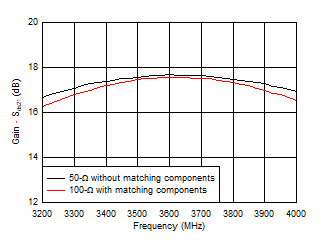

Figure 8-2 Gain vs Frequency for Different Terminations
A.

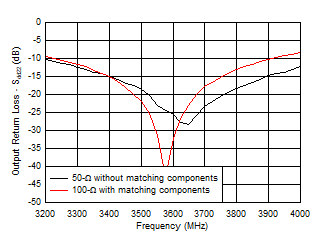

Figure 8-4 Output Return Loss vs Frequency for Different Terminations

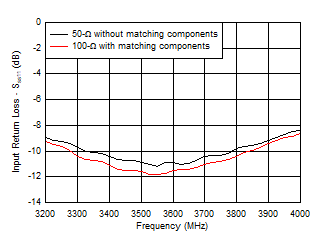

Figure 8-3 Input Return Loss vs Frequency for Different Terminations
