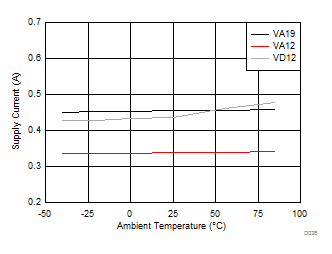

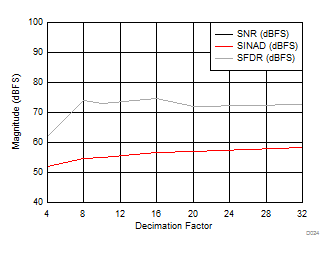

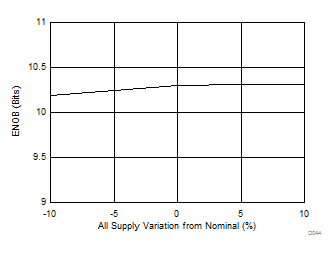

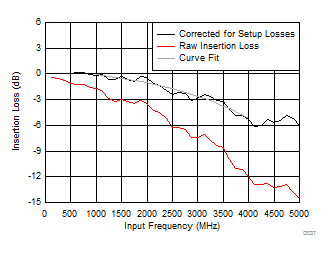

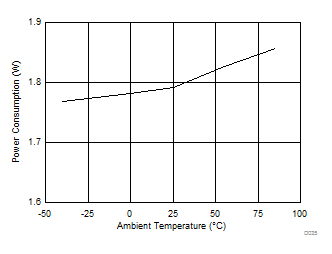

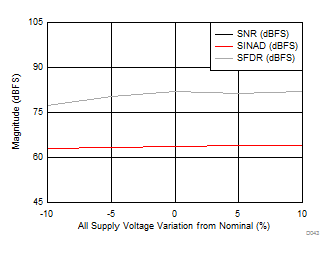

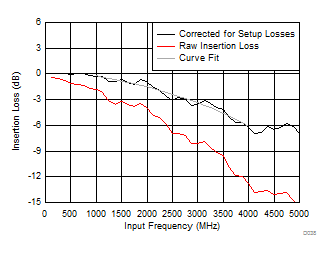

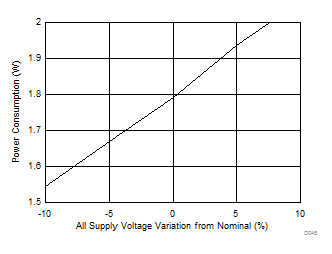

6.9 Typical Characteristics
Unless otherwise noted, these specifications apply for V(VA12) = V(VD12) = 1.2 V, V(VA19) = 1.9 V, VIN FSR (AC coupled) = Default setting, differential AC-coupled sinewave input clock, ƒ(DEVCLK) = 4 GHz at 0.5 VPP with 50% duty cycle, R(RBIAS) = 3.3 kΩ ±0.1%, after a Foreground mode calibration with Timing Calibration enabled. TA = 25°C. VI = –1 dBFS.
| FIN = 608 MHz |
| Decimate by 16 mode | FIN = 608 MHz |
| FIN = 608 MHz |
| Decimate by 16 mode | FIN = 608 MHz |
| FIN = 608 MHz |
| Decimate by 16 mode | FIN = 608 MHz |
| Decimate by 16 mode | FIN = 608 MHz |
| Foreground calibration mode |
Figure 19. Decimate by 4 - Stopband Response
Figure 21. Decimate by 8 - Stopband Response

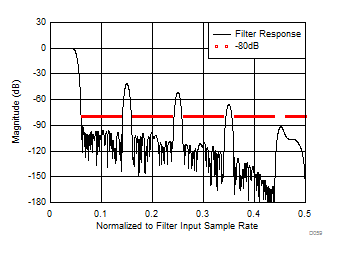

Figure 23. Decimate by 10 - Stopband Response

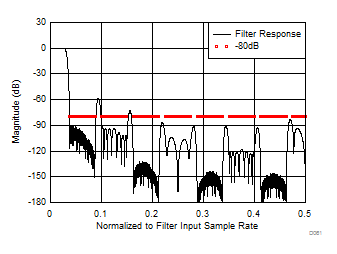

Figure 25. Decimate by 16 - Stopband Response

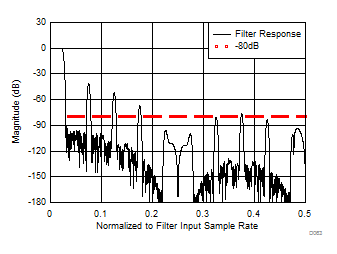

Figure 27. Decimate by 20 - Stopband Response

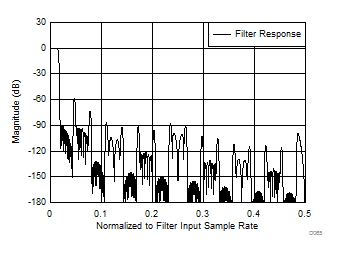

Figure 29. Decimate by 32 - Stopband Response
| FIN = 2483 MHz |
| Decimate by 16 mode | FIN = 608 MHz |
| FIN = 2483 MHz |
| Decimate by 16 mode | FIN = 608 MHz |
| Decimate by 16 mode | FIN = 608 MHz |
| FIN = 608 MHz |
| Decimate by 16 mode | FIN = 608 MHz |
| Background calibration mode |

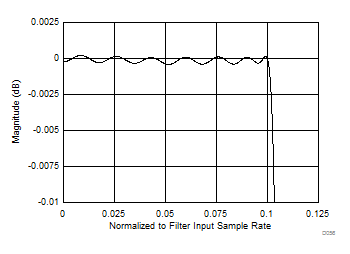

Figure 20. Decimate by 4 - Passband Response
Figure 22. Decimate by 8 - Passband Response

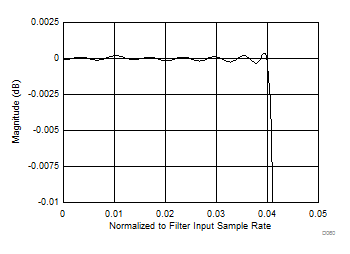

Figure 24. Decimate by 10 - Passband Response
Figure 26. Decimate by 16 - Passband Response

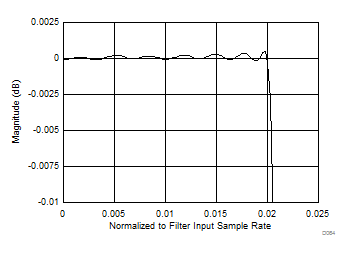

Figure 28. Decimate by 20 - Passband Response
Figure 30. Decimate by 32 - Passband Response
