6.8 Switching Characteristics
Unless otherwise noted, these specifications apply for V(VA12) = V(VD12) = 1.2 V, V(VA19) = 1.9 V, VIN FSR (AC coupled) = Default setting, differential AC-coupled sinewave input clock, ƒ(DEVCLK) = 4 GHz at 0.5 VPP with 50% duty cycle, R(RBIAS) = 3.3 kΩ ±0.1%, after a foreground mode calibration with timing calibration enabled. Typical values are at TA = 25°C.| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| SERIAL DATA OUTPUTS | ||||||
| Serialized output bit rate | 1 | 10 | Gbps | |||
| Serialized output bit rate | DDR = 0, P54 = 0 | ƒS | ||||
| DDR = 0, P54 = 1 | 1.25 × ƒS | |||||
| DDR = 1, P54 = 0 | 2 × ƒS | |||||
| DDR = 1, P54 = 1 | 2.5 × ƒS | |||||
| tTLH | LH transition time — differential | 10% to 90%, 8 Gbps | 35 | ps | ||
| tTHL | HL transition time — differential | 10% to 90%, 8 Gbps | 35 | ps | ||
| UI | Unit interval | 8 Gbps serial rate | 125 | ps | ||
| DDJ | Data dependent jitter | 8 Gbps serial rate | 11.3 | ps | ||
| RJ | Random Jitter | 8 Gbps serial rate | 1.4 | ps | ||
| SERIAL INTERFACE | ||||||
| t(OZD) | SDO tri-state to driven | See Figure 2 | 5 | ns | ||
| t(ODZ) | SDO driven to tri-state | 2.5 | 5 | ns | ||
| t(OD) | SDO output delay | 20 | ns | |||
Figure 1. JESD204 Synchronization

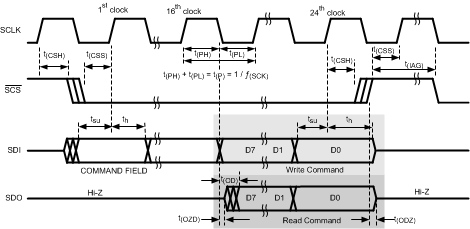

Figure 2. Serial Interface Timing
