SDAA192 November 2025 UCC33020 , UCC33020-Q1 , UCC33410 , UCC33410-Q1 , UCC33420 , UCC33420-Q1
2.7 EMI Results
Figure 2-24 CISPR 25 CE Pout=1W

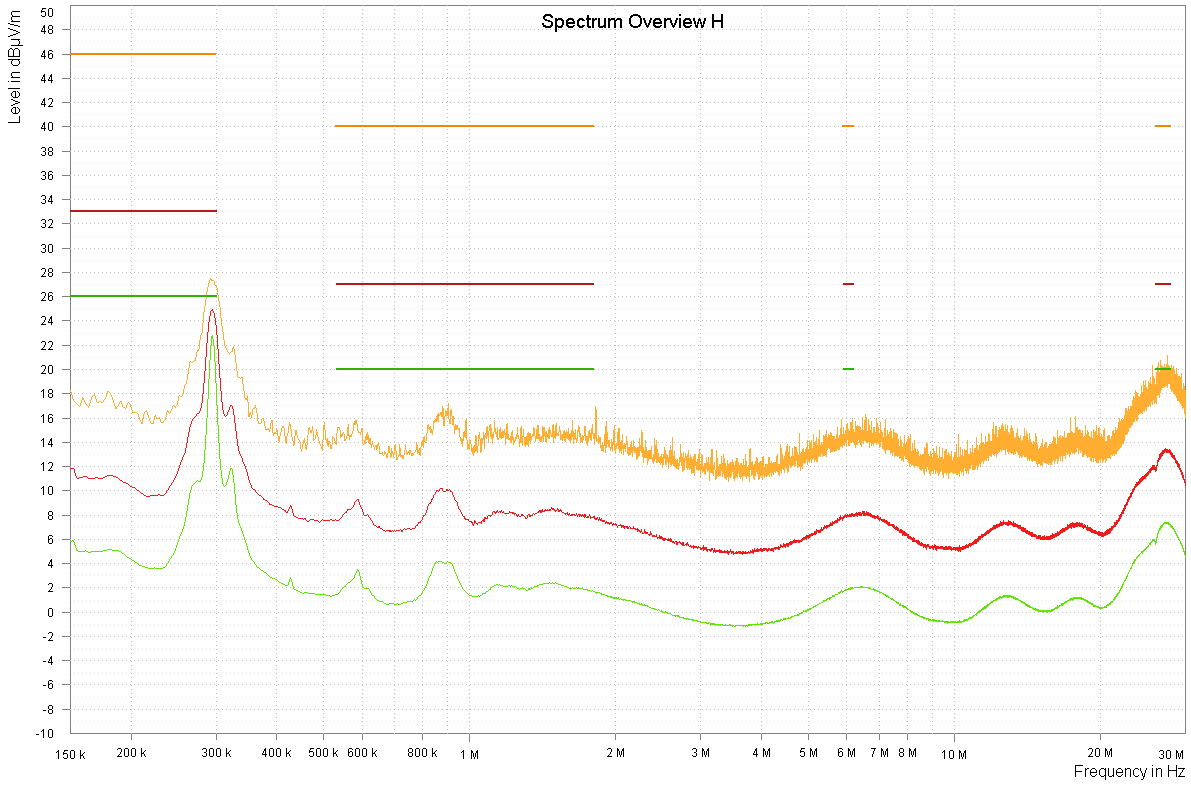

Figure 2-25 CISPR 25 RE Monopole Pout=1W

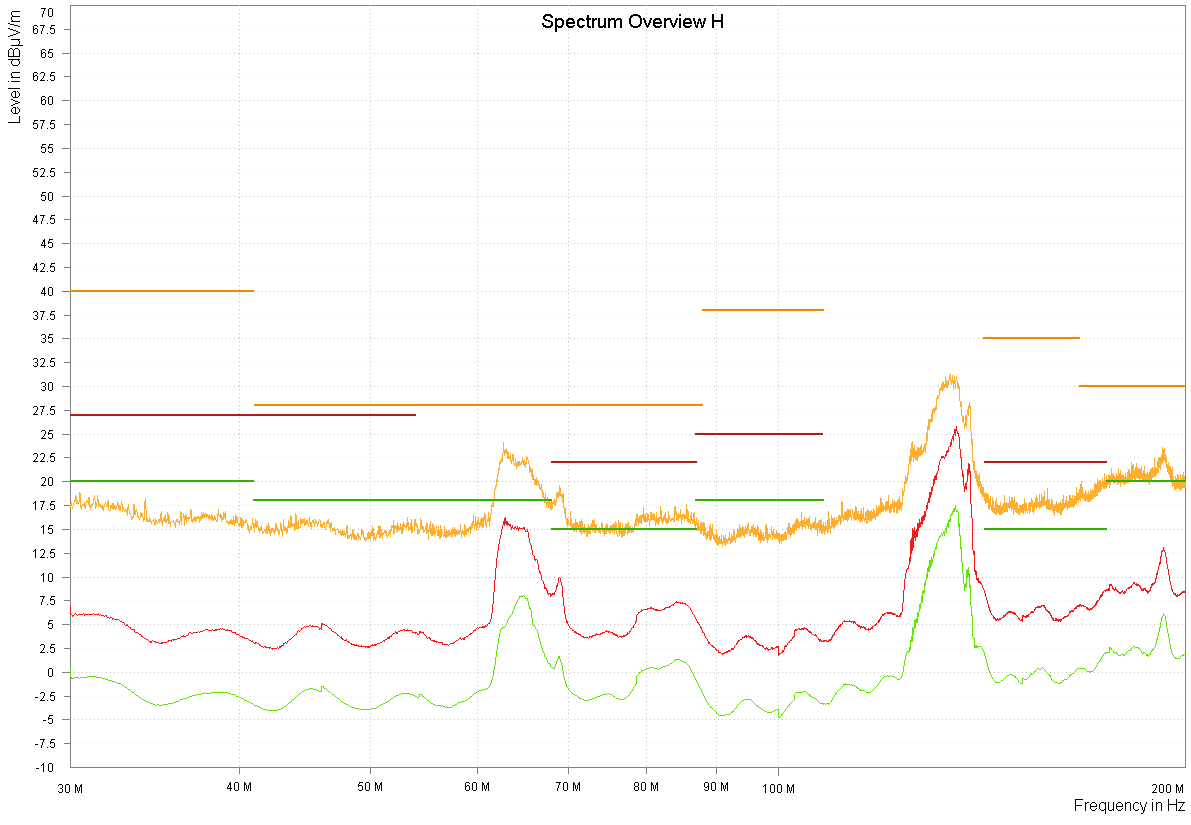

Figure 2-26 CISPR 25 RE Bicon Pout=1W

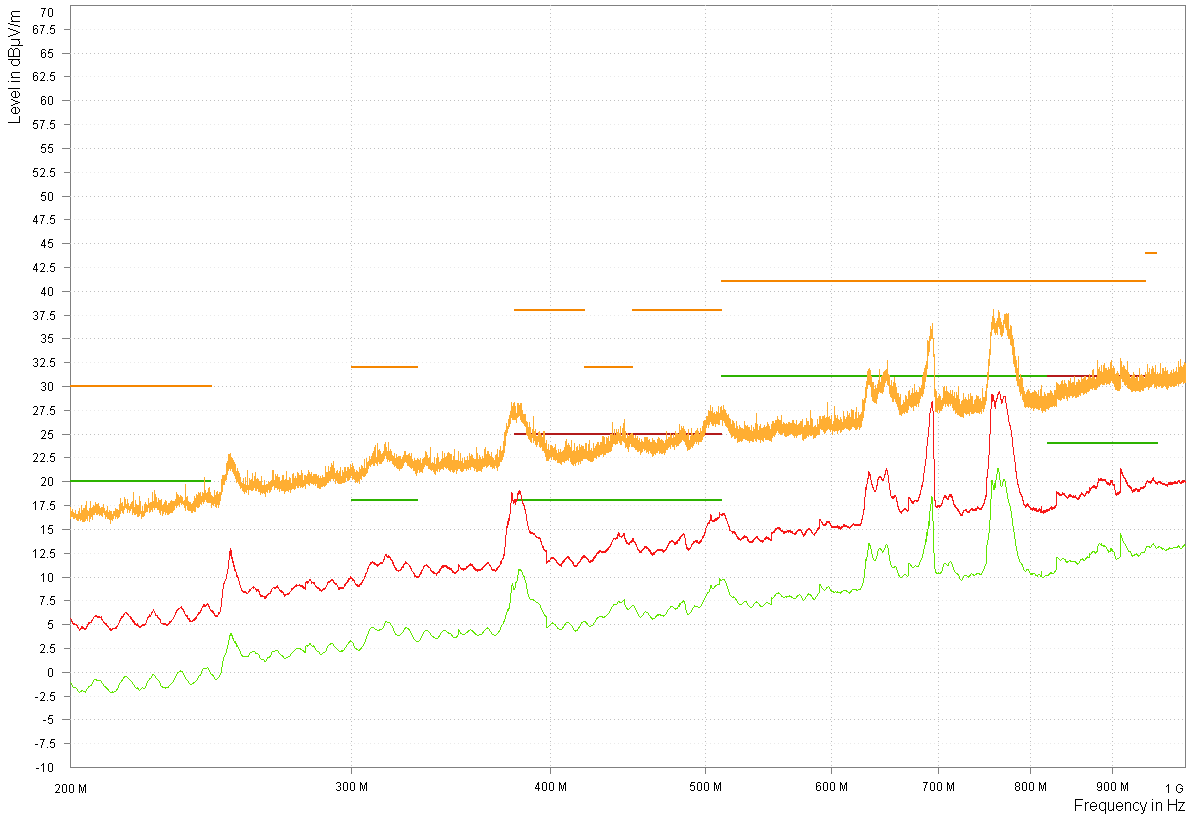

Figure 2-27 CISPR 25 RE LPA Pout=1W

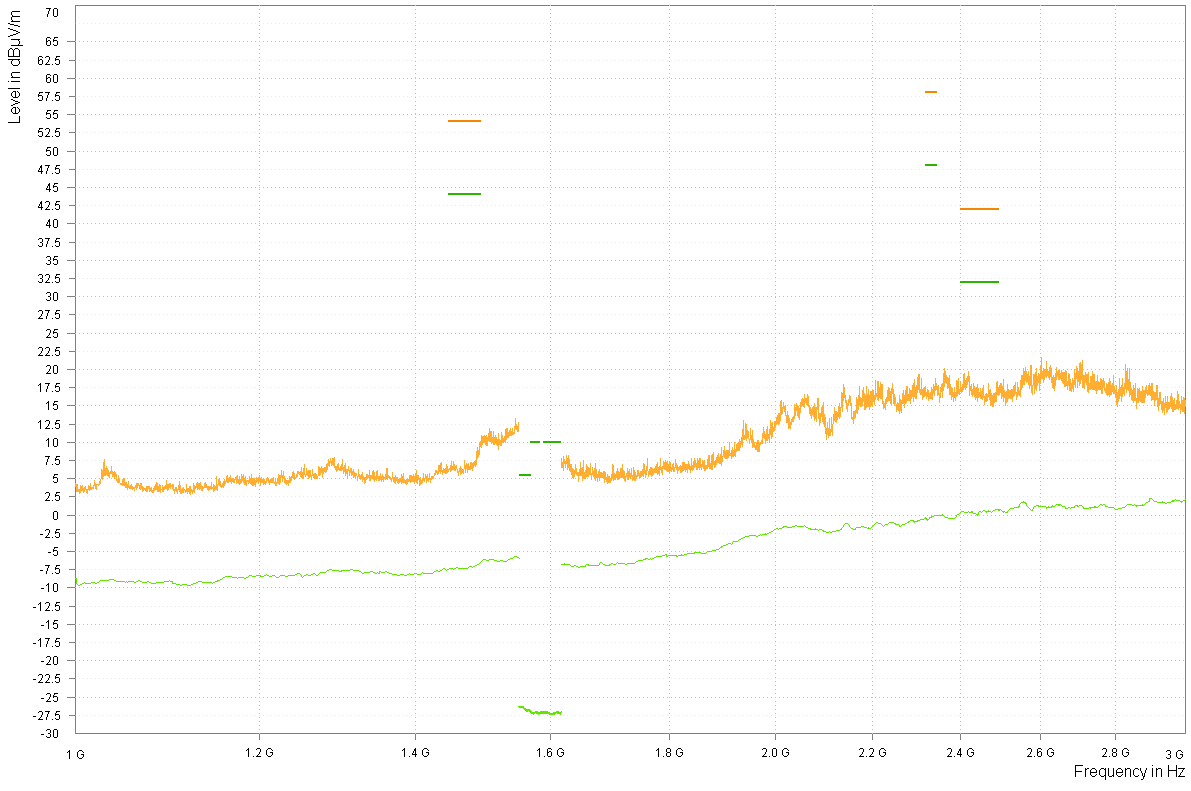

Figure 2-28 CISPR 25 RE Horn Pout=1W
