7 Parameter Measurement Information

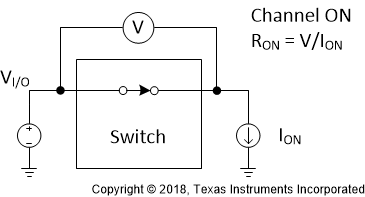

Figure 7. On Resistance
Figure 8. Off Leakage
Figure 9. On Leakage
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 3 ns, tf = 3 ns.
2. CL includes probe and jig capacitance.

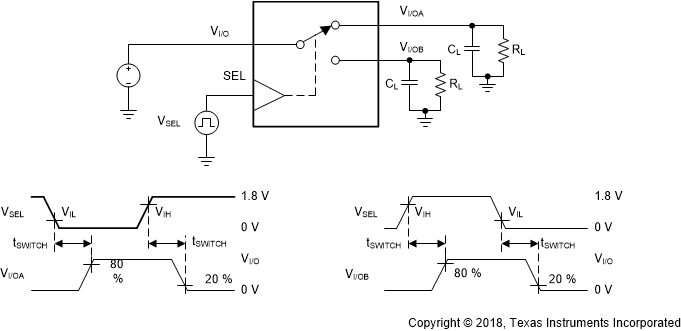

Figure 10. tSWITCH timing
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 3 ns, tf = 3 ns.
2. CL includes probe and jig capacitance.

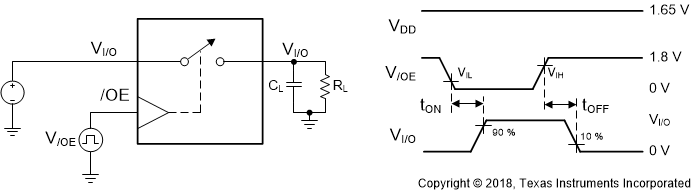

Figure 11. tON and tOFF Timing for OE

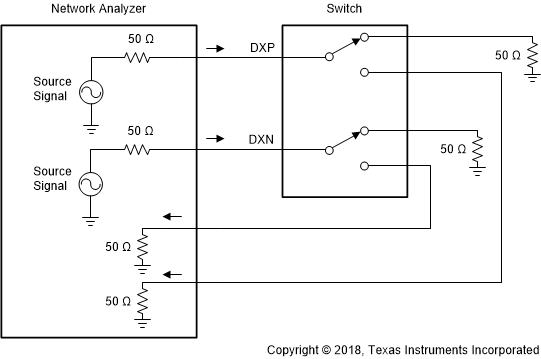

Figure 12. Off Isolation

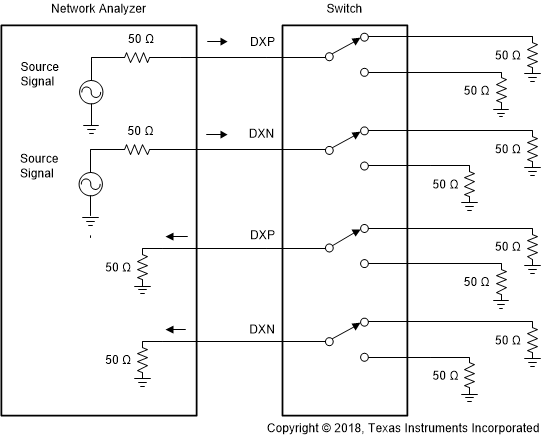

Figure 13. Crosstalk

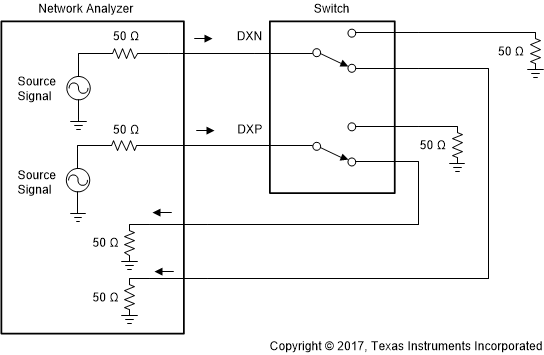

Figure 14. BW and Insertion Loss
Figure 15. tPD, tSKEW(INTRA) and tSKEW Setup
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 100 ps, tf = 100 ps.
2. CL includes probe and jig capacitance.

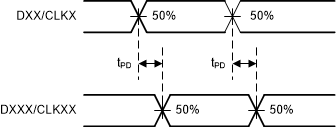

Figure 16. tPD
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 100 ps, tf = 100 ps.
2. CL includes probe and jig capacitance.

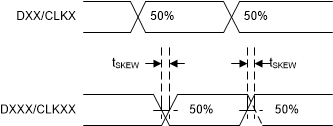

Figure 17. tSKEW
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 100 ps, tf = 100 ps.
2. CL includes probe and jig capacitance.
3. tSK(INTER) is the max skew between all channels. Diagram exaggerates tSK(INTER) to show measurement technique

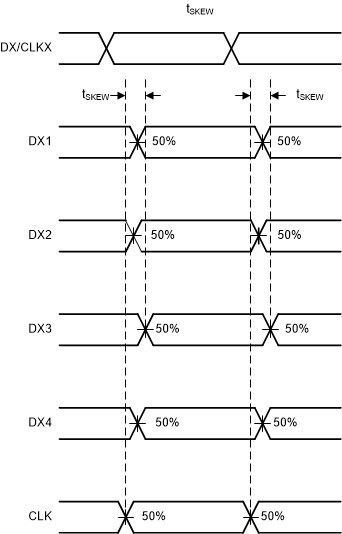

Figure 18. tSKEW
1. All input pulses are supplied by generators having the following characteristics: PRR ≤ 10 MHz, ZO = 50 Ω , tr = 3 ns, tf = 3 ns.
2. CL includes probe and jig capacitance.

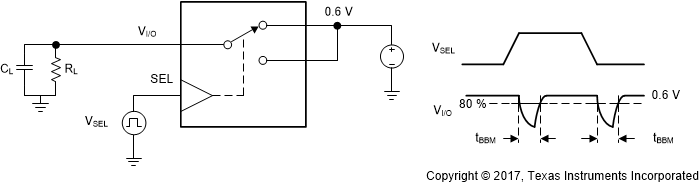

Figure 19. tBBM
