8.3.3 White LED Applications

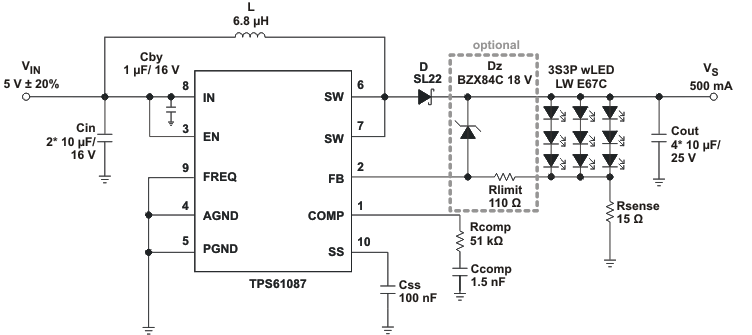

Figure 20. Simple Application (5 V Input Voltage) (fS = 650 kHz) for wLED Supply (3S3P) (With Optional Clamping Zener Diode)

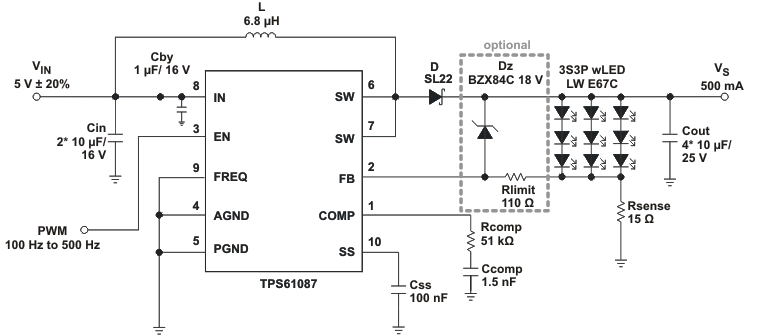

Figure 21. Simple Application (5 V Input Voltage) (fS = 650 kHz) for wLED Supply (3S3P) With Adjustable Brightness Control Using a PWM Signal on the Enable Pin
(With Optional Clamping Zener Diode)

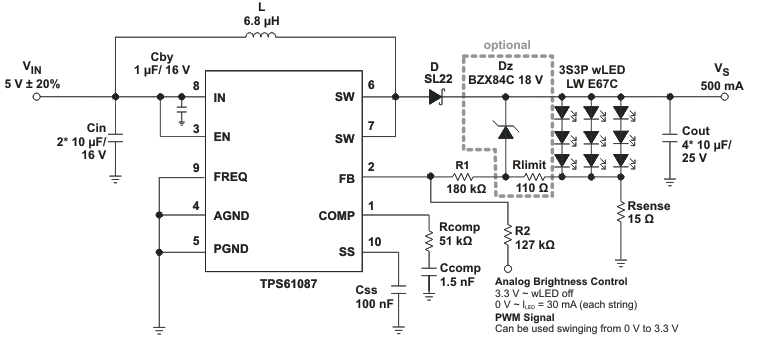

Figure 22. Simple Application (5 V Input Voltage) (fS = 650 kHz) for wLED Supply (3S3P) With Adjustable Brightness Control Using an Analog Signal on the Feedback Pin
(With Optional Clamping Zener Diode)
