6.6 Typical Characteristics
The typical characteristics are measured with the inductors 7447789003 3.3 µH (high frequency) or 74454068 6.8 µH (low frequency) from Wurth and the rectifier diode SL22.Table 1. Table of Graphs
| FIGURE | |||
|---|---|---|---|

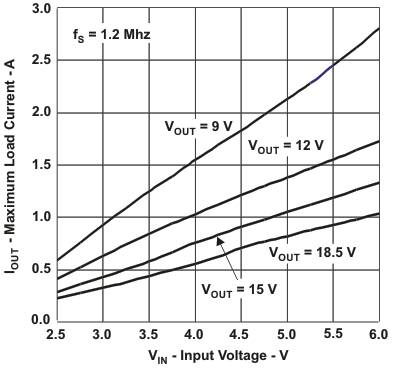

| IOUT(max) | Maximum load current | vs. Input voltage at High frequency (1.2 MHz) | Figure 1 |

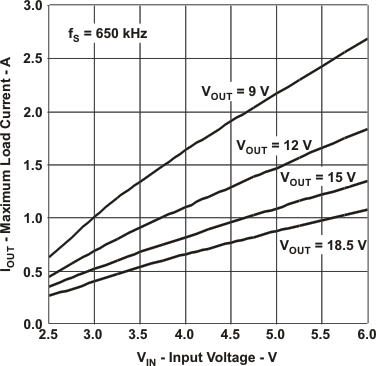

| IOUT(max) | Maximum load current | vs. Input voltage at Low frequency (650 kHz) | Figure 2 |

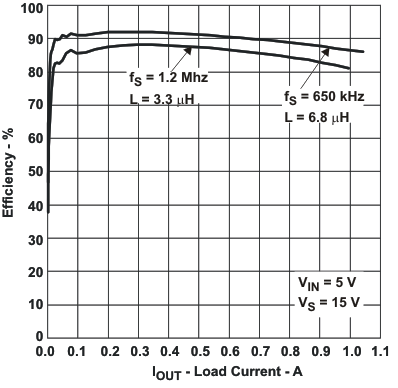

| η | Efficiency | vs. Load current, VS = 15 V, VIN = 5 V | Figure 3 |

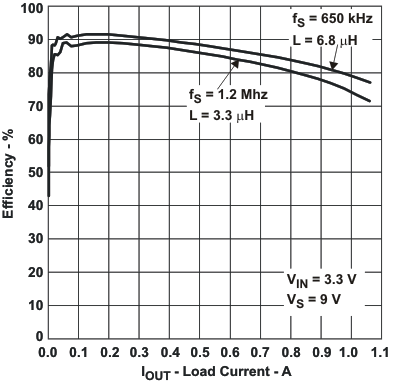

| η | Efficiency | vs. Load current, VS = 9 V, VIN = 3.3 V | Figure 4 |

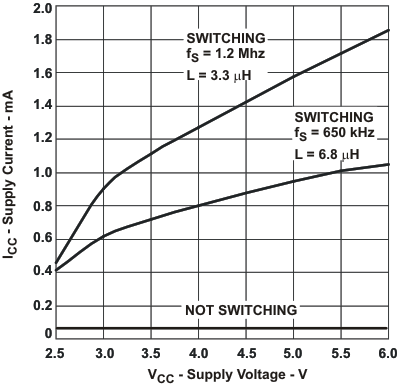

| Supply current | vs. Supply voltage | Figure 5 | |

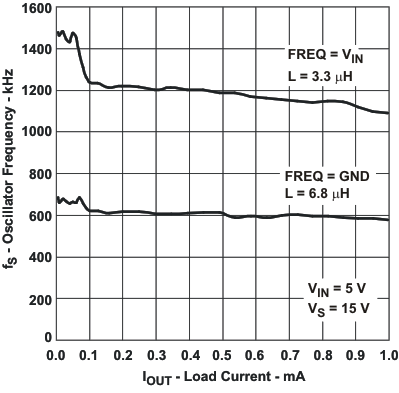

| Oscillator frequency | vs. Load current | Figure 6 | |

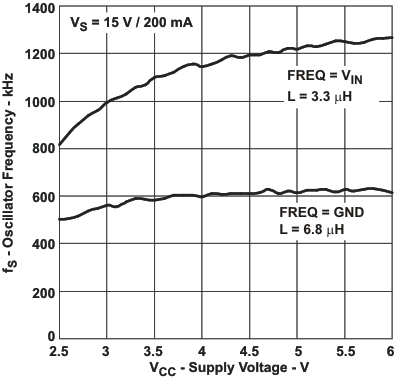

| Oscillator frequency | vs. Supply voltage | Figure 7 | |
