8.2.3 Application Curves

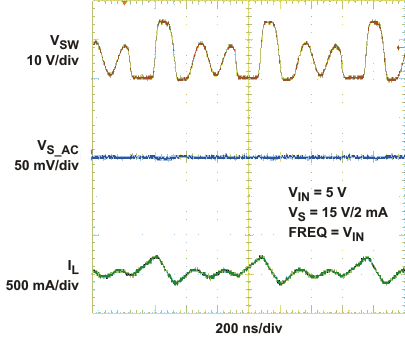

Figure 9. PWM Switching Discontinuous Conduction Mode

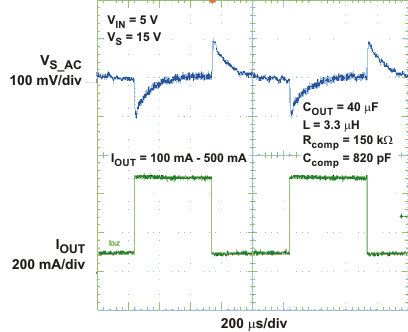

Figure 11. Load Transient Response High Frequency
(1.2 MHz)

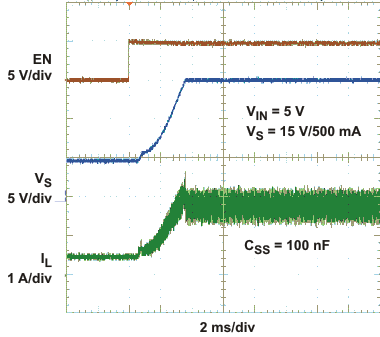

Figure 13. Soft-Start

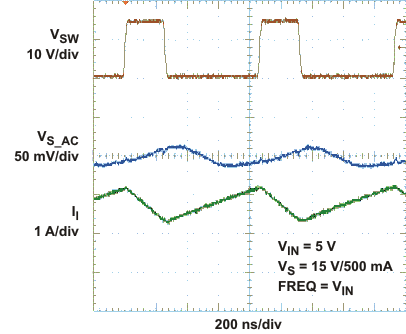

Figure 10. PWM Switching Continuous Conduction Mode

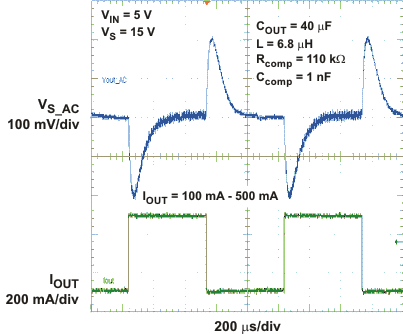

Figure 12. Load Transient Response Low Frequency
(650 kHz)
