8.2 Typical Application
Figure 8-1, Figure 8-2, and Figure 8-3 illustrate typical implementations of the TPS28225-Q1 in step-down power supplies.

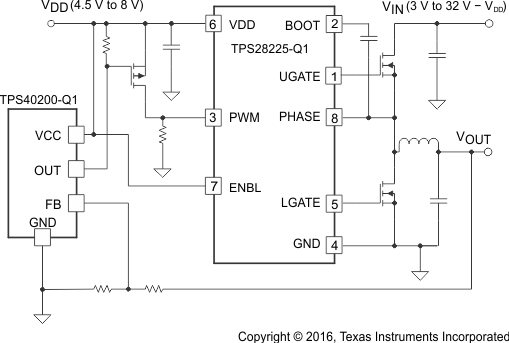

Figure 8-1 One-Phase POL Regulator

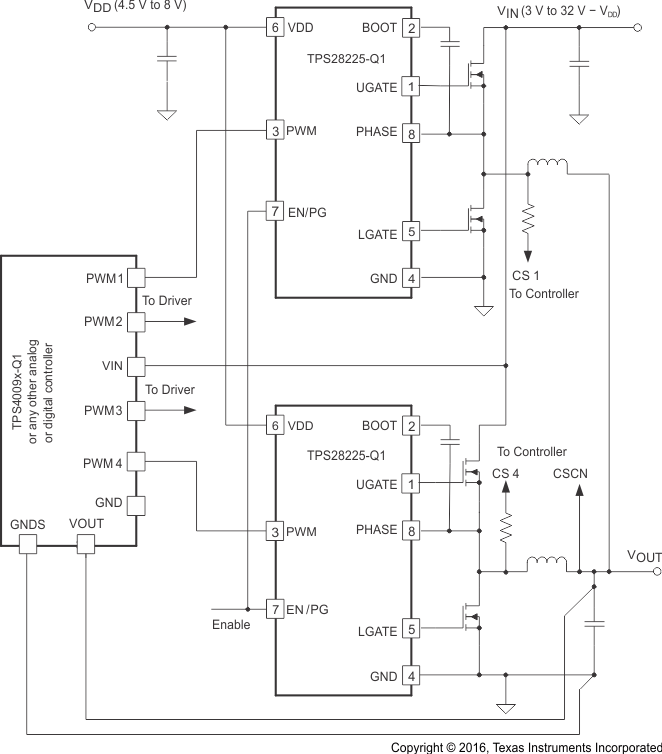

Figure 8-2 Multi-Phase Synchronous Buck Converter

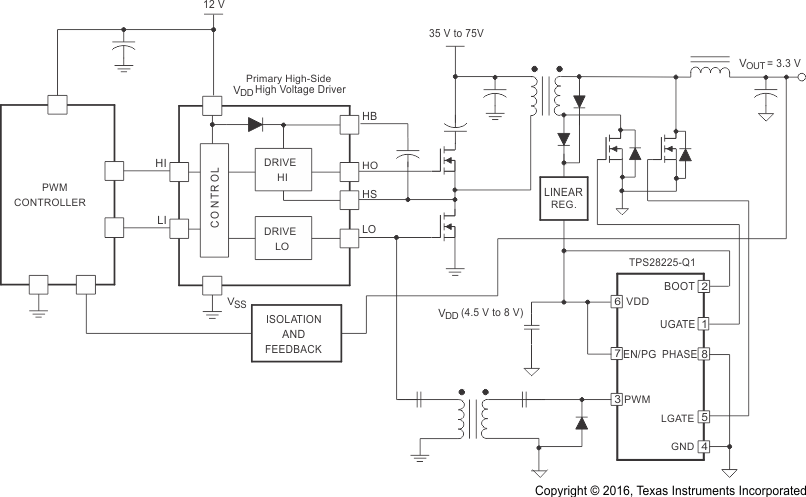

Figure 8-3 Driver for Synchronous Rectification with Complementary Driven MOSFETs
