ZHCSIV8B January 2010 – October 2018 TLV320DAC3101
PRODUCTION DATA.
Filter C is specifically designed for the 192-ksps mode. The pass band extends up to 0.4 × fS (corresponds to 80 kHz), more than sufficient for audio applications.
| PARAMETER | CONDITION | VALUE (TYPICAL) | UNIT |
|---|---|---|---|
| Filter-gain pass band | 0 … 0.35 fS | ±0.03 | dB |
| Filter-gain stop band | 0.6… 1.4 fS | –43 | dB |
| Filter group delay | 13 / fS | s |

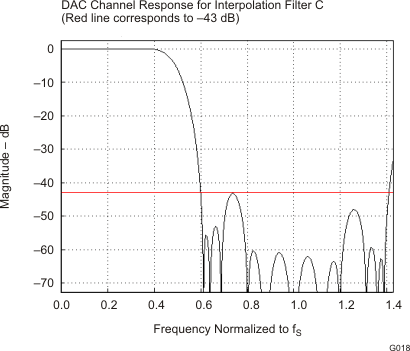

Figure 6-15 Frequency Response of DAC Interpolation Filter C
