Filter B is specifically designed for an fS of up to 96 ksps. Thus, the flat passband region easily covers the required audio band of 0 to 20 kHz.
| PARAMETER | CONDITION | VALUE (TYPICAL) | UNIT |
|---|---|---|---|
| Filter-gain pass band | 0 … 0.45 fS | ±0.015 | dB |
| Filter-gain stop band | 0.55… 3.45 fS | –58 | dB |
| Filter group delay | 18 / fS | s |

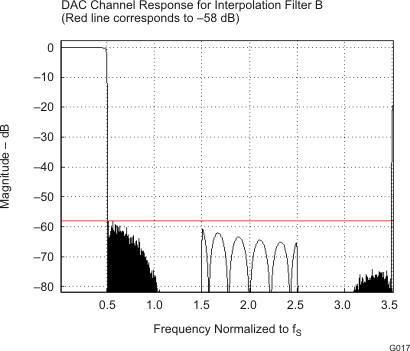

Figure 6-14 Frequency Response of Channel Interpolation Filter B
