8.4.2 Layout Examples
In the following examples, the RES11A is shown with a VSSOP amplifier and 0402-size decoupling capacitors.

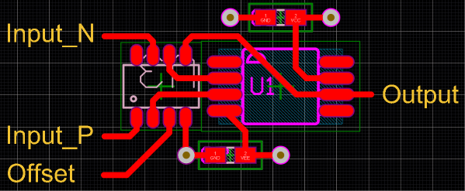

Figure 8-22 Single-Layer Difference
Amplifier Implementation

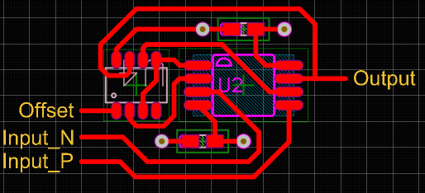

Figure 8-23 Single-Layer Instrumentation Amplifier
Implementation

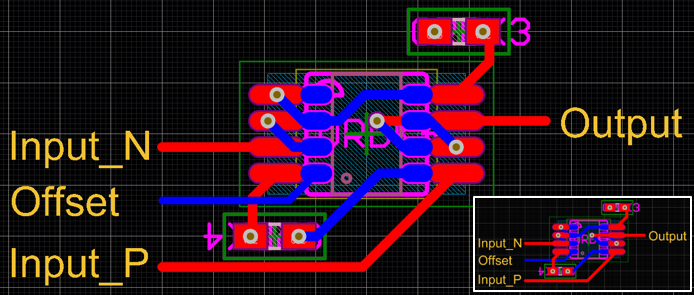

Figure 8-24 Front-and-Back Instrumentation Amplifier
Implementation

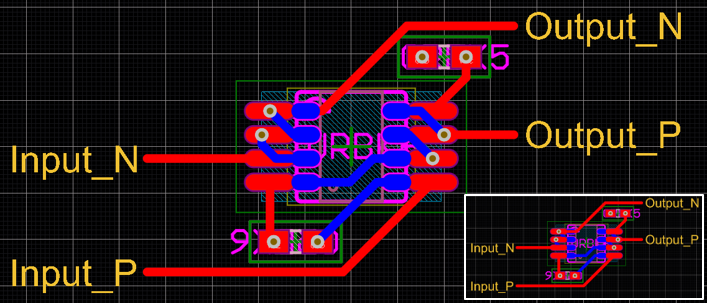

Figure 8-25 Front-and-Back, Differential-Output
Instrumentation Amplifier ImplementationFor Figure 8-26, two RES11A devices (bottom side) and one dual-channel op-amp (top side) are used.

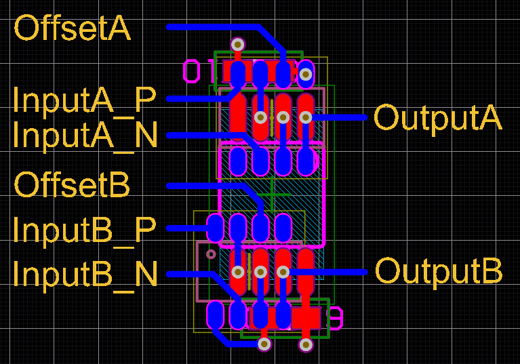

Figure 8-26 Front-and-Back Dual Difference Amplifiers
Implementation
