The SYSREF can be used in a repeater mode, which just echos the input, after the SYSREF is reclocked to the fINTERPOLATOR frequency and then RFOUT—or it can be used in a repeater. In repeater mode, it can repeat 1, 2, 4, 8, or infinite (continuous) pulses. The frequency for repeater mode is equal to the RFOUT frequency divided by the SYSREF divider.

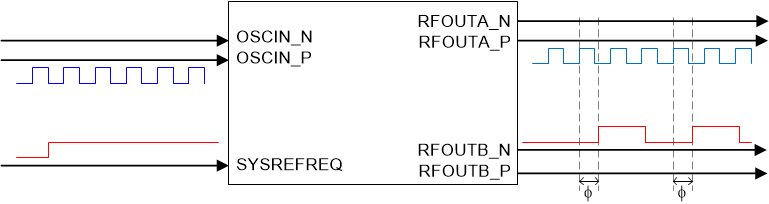

Figure 7-8 SYSREF Out in Repeater ModeIn master mode, the SYSREFREQ pin is pulled high to allow the SYSREF output.

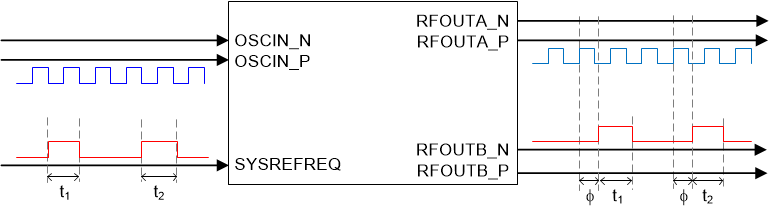

Figure 7-9 SYSREF Out in Pulsed / Continuous Mode
