7.7 Typical Characteristics
Unless otherwise specified the following conditions apply: TJ = 25°C.
Figure 7-1 ICC vs Operating Voltage - Disabled
Figure 7-3 Operating Voltage vs ICC

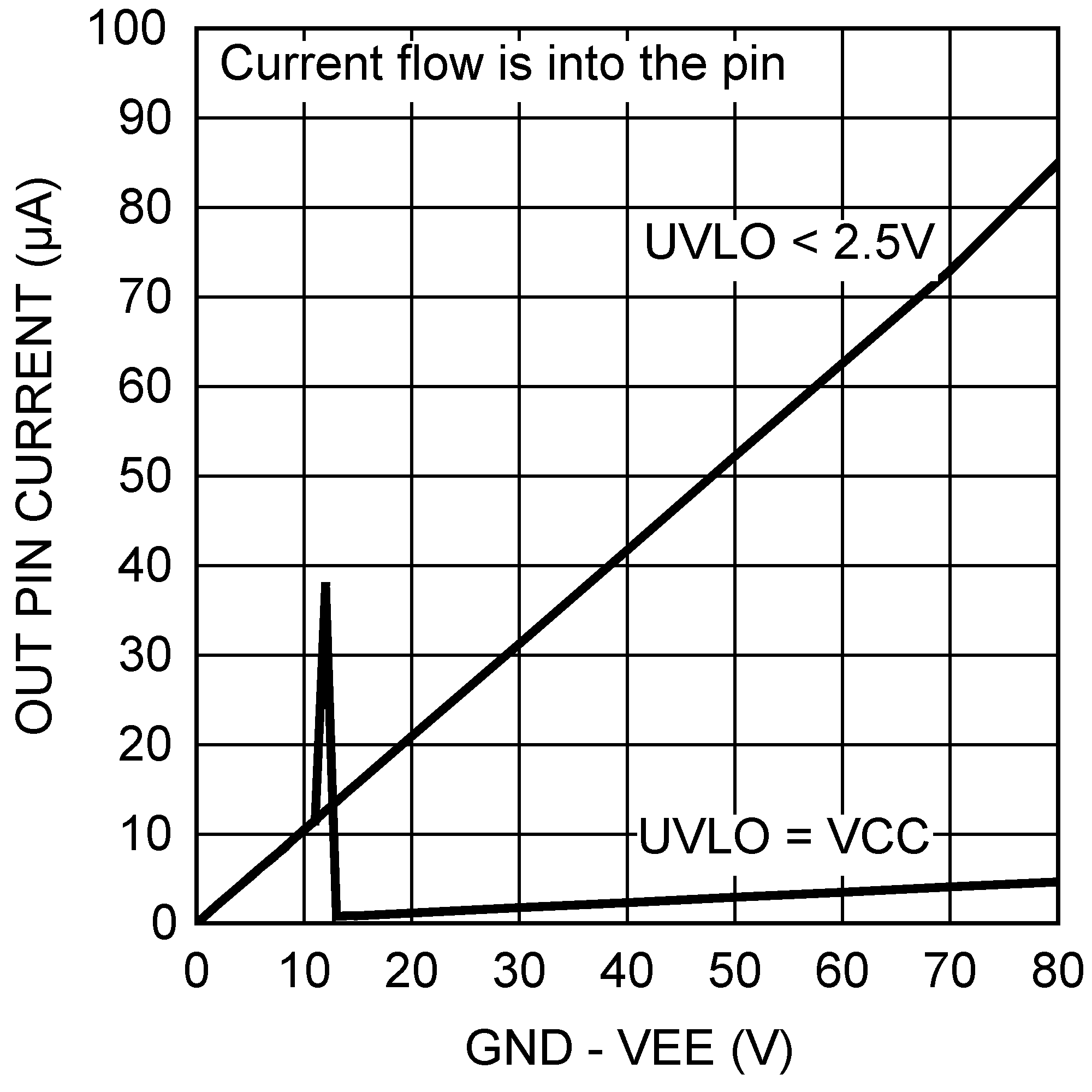

Figure 7-5 OUT Pin Current vs System Voltage
Figure 7-7 GATE Pull-Down Current, Circuit Breaker vs GATE Voltage
Figure 7-9 MOSFET Power Dissipation Limit vs RPWR and RS
Figure 7-11 UVLO, OVLO Threshold Voltage vs UVLO, OVLO Threshold Voltage
Figure 7-13 Current Limit Threshold vs Temperature
Figure 7-15 Power Limit Threshold vs Temperature
Figure 7-17 GATE Pull-Down Current, Circuit Breaker vs Temperature

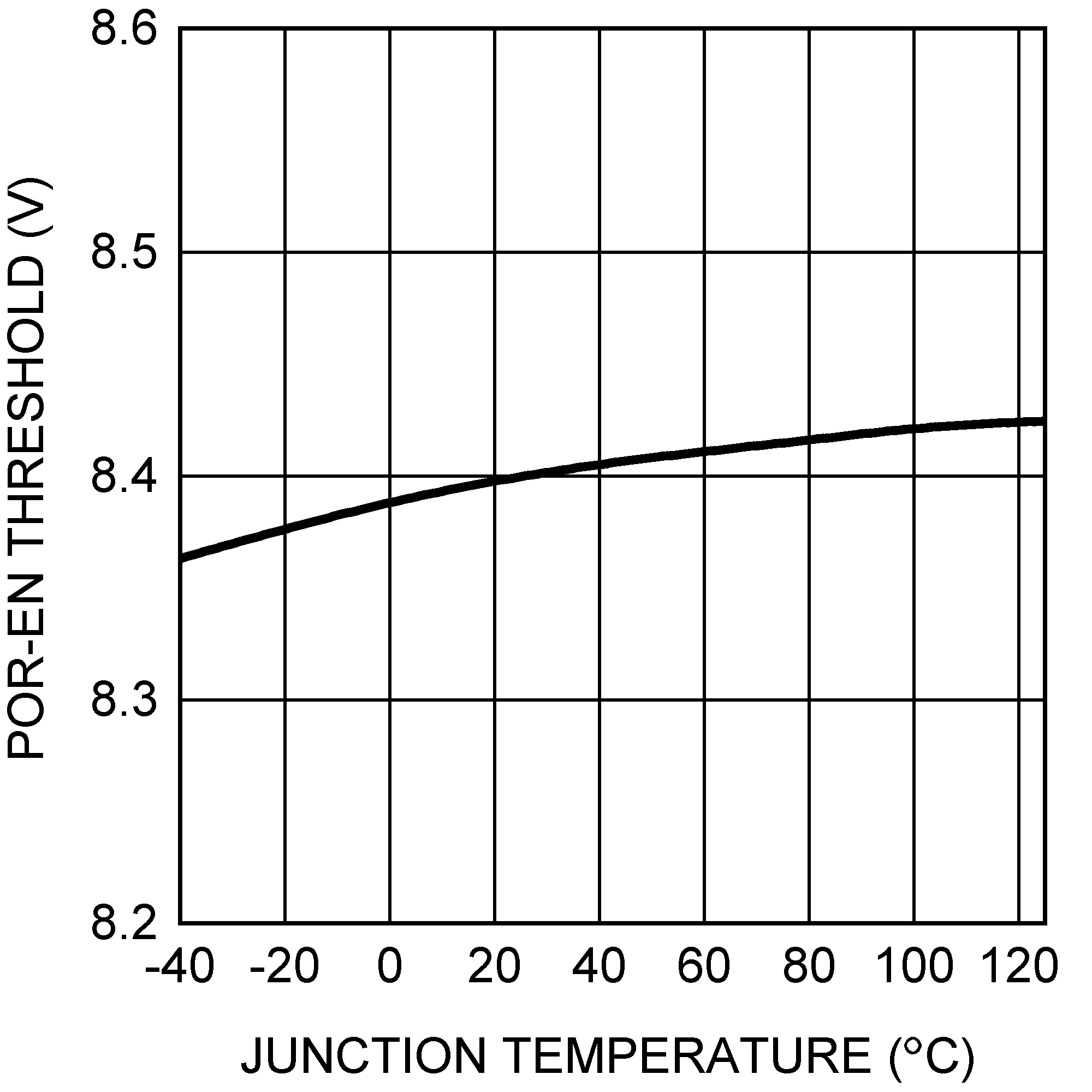

Figure 7-19 POREN Threshold vs Temperature
Figure 7-21 TIMER
Pin Fault Detection Current vs Temperature
Figure 7-2 ICC vs Operating Voltage - Enabled
Figure 7-4 SENSE Pin Current vs System Voltage
Figure 7-6 GATE Source Current vs Operating Voltage
Figure 7-8 PGD Low Voltage vs Sink Current
Figure 7-10 UVLO and OVLO Hysteresis Current vs Temperature
Figure 7-12 VZ Operating Voltage vs Temperature
Figure 7-14 Circuit Breaker Threshold vs Temperature
Figure 7-16 Gate Source Current vs Temperature
Figure 7-18 PGD Pin Low Voltage vs Temperature
Figure 7-20 TIMER Pin Thresholds vs Temperature
