| Components | Value | Description (Capacitor Isolation on the Same PCB) |
|---|---|---|
| RTERM | 1 k? | Termination resistor |
| RSERIES | 49 ? | Filter resistor and impedance matching resistor. The connection between devices must be ~120 ? (~50 ? on each end of the signal connection of the device plus 10-? internal resistance) |
| CBYPASS | 220 pF/50 V | Bypass capacitor |
| CISO | 2.2 nF | Isolation capacitor Voltage rating depends on application requirement. It is common to select 2x of module voltage rating to provide standoff margin in the event of a fault in the system. |

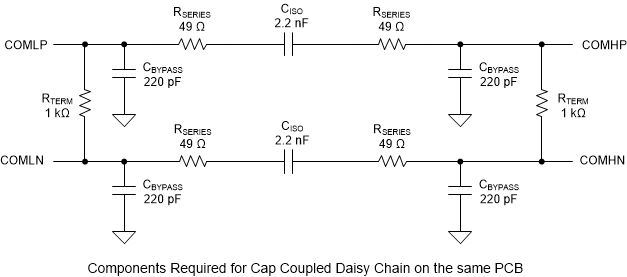

Figure 10-6 Capacitor Isolation with Devices on the Same PCB
