3 說明
ADC32RF8x（ADC32RF80 和 ADC32RF83）是 14 位 3GSPS 雙通道電信接收器和反饋器件系列，支持輸入頻率高達 4GHz 及以上的射頻采樣。ADC32RF8x 系列的設計旨在追求高信噪比 (SNR)，其在寬輸入頻率范圍內兼具 –155dBFS/Hz 的噪聲頻譜密度與動態范圍，同時可提供通道隔離。經緩沖的模擬輸入配有片上端接電阻，可在較寬頻率范圍內提供統一輸入阻抗并最大程度地降低采樣和保持毛刺脈沖能量。
每條通道均可連接到一個雙頻帶數字下變頻器 (DDC)，每個 DDC 最多連接三個獨立的 16 位數控振蕩器 (NCO) 用于相位相干跳頻。此外，ADC 還配有前端峰值和 RMS 功率檢測器及報警功能，用以支持外部自動增益控制 (AGC) 算法。
ADC32RF8x 支持具有基于子類 1 確定性延遲的 JESD204B 串行接口，其數據速率高達 12.5Gbps，每個 ADC 最多具有四條信道。該器件采用 72 引腳 VQFN 封裝 (10mm × 10mm)，支持工業級溫度范圍（-40℃ 至 +85°C）。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
| ADC32RF8x | VQFN (72) | 10.00mm x 10.00mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

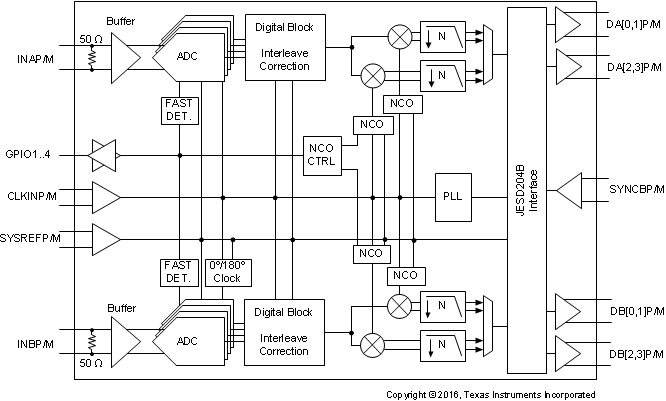

簡化版方框圖
