4.7 Load Transient Response
The TPS54626EVM-608 response to load transients is shown in Figure 4-5 and Figure 4-6. The current steps and slew rates are indicated in the figures. Total peak-to-peak voltage variation is as shown.

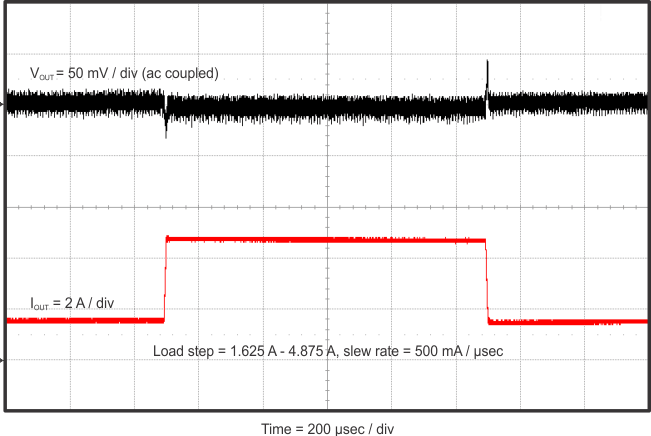

Figure 4-5 TPS54626EVM-608 Load Transient Response, 25% to 75% Load Step
Figure 4-6 TPS54626EVM-608 Load Transient Response, No Load to 75% Load Step
