SLVU942A July 2013 – August 2021 TPS54626
4.8 Output Voltage Ripple
The TPS54626EVM-608 output voltage ripple is shown in Figure 4-7, Figure 4-8, and Figure 4-9. The output currents are as indicated.

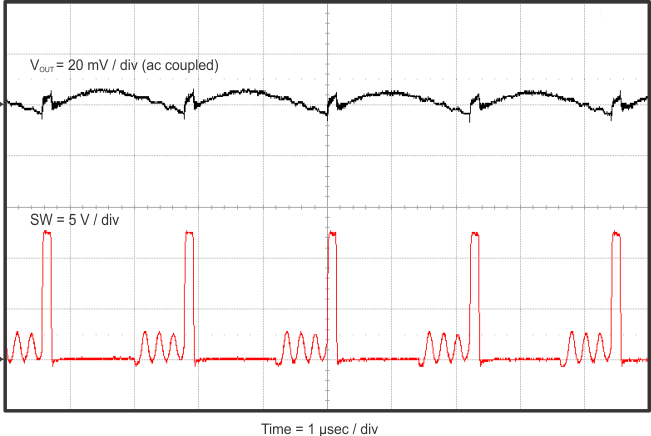

Figure 4-7 TPS54626EVM-608 Output Voltage Ripple, IOUT = 6.5 A

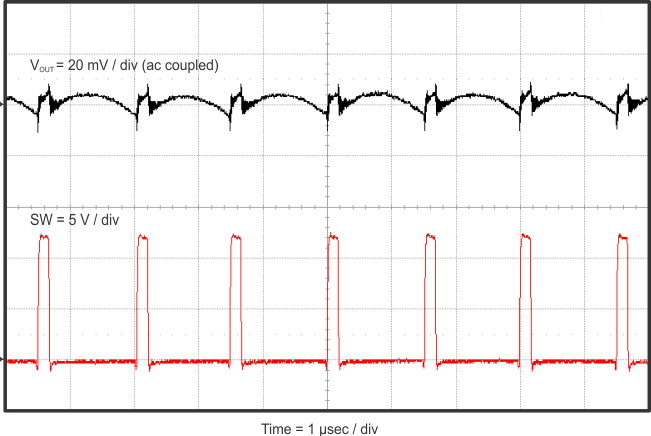

Figure 4-8 TPS54626EVM-608 Output Voltage Ripple, IOUT = 300 mA

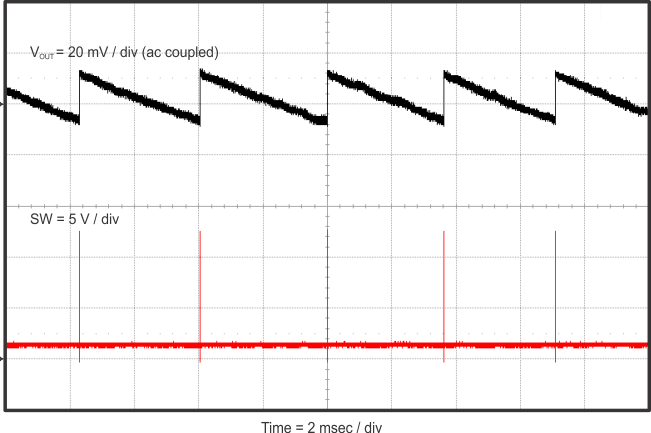

Figure 4-9 TPS54626EVM-608 Output Voltage Ripple, IOUT = 10 mA
