4.11 Shut-Down

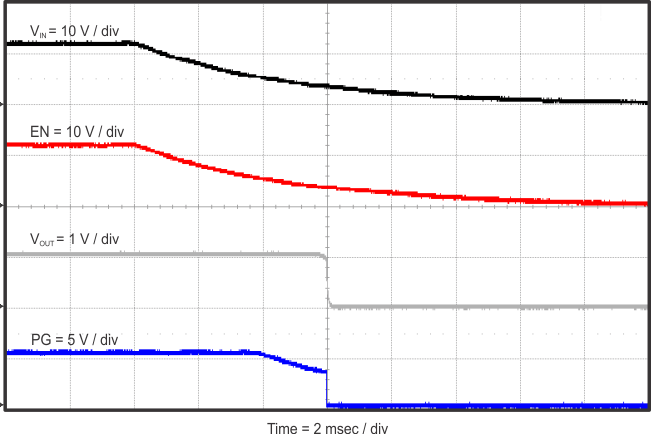

The TPS54626EVM-608 shut-down waveform relative to VIN is shown in Figure 4-13. Load = 1 Ω resistive.

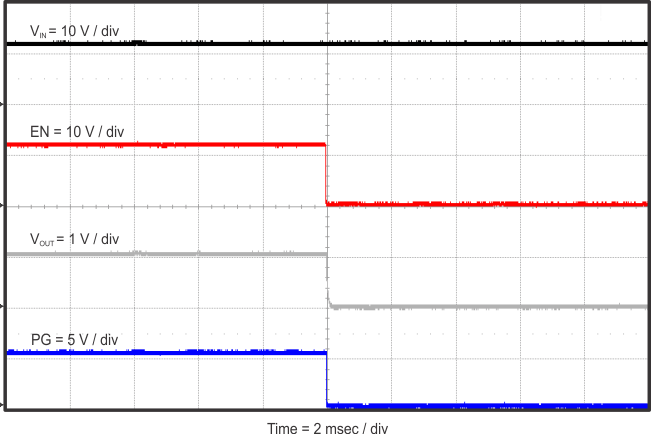

Figure 4-13 TPS54626EVM-608 Shut-Down Relative to VINThe TPS54625EVM-608 shut-down waveform relative to EN is shown in Figure 4-14. Load = 1 Ω resistive.
Figure 4-14 TPS54626EVM-608 Shut-Down Relative to EN
