4 Pin Failure Mode Analysis (Pin FMA)

This section provides a failure mode analysis (FMA) for the pins of the UCC25661x-Q1. The failure modes covered in this document include the typical pin-by-pin failure scenarios:

• Pin short-circuited to ground (see Table 4-2)
• Pin open-circuited (see Table 4-3)
• Pin short-circuited to an adjacent pin (see Table 4-4)
• Pin short-circuited to VCC (see Table 4-5)

Table 4-2 through Table 4-5 also indicate how these pin conditions can affect the device as per the failure effects classification in Table 4-1.

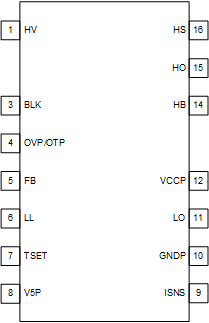

Figure 4-1 shows the UCC25661x-Q1 pin diagram. For a detailed description of the device pins, see the Pin Configuration and Functions section in the UCC25661x-Q1 data sheet.

Figure 4-1 Pin Diagram

Following are the assumptions of use and the device configuration assumed for the pin FMA in this section:

• The analysis is based on the typical application schematic in the UCC25661x-Q1 data sheet.
• VCCP is considered as the supply pin.
