6.11 Typical Characteristics

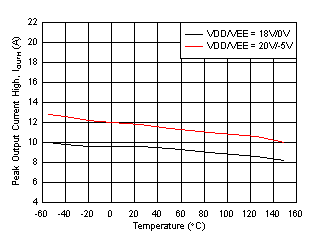

Figure 6-4 Output High
Drive Current vs Temperature
| IN+ = High | IN- = Low |
| IN+ = Low | IN- = Low |
Figure 6-12 VCC UVLO vs
Temperature
| VCC = 3.3V | VDD=18V | CL = 100pF |
| RON = 0Ω | ROFF = 0Ω |
| VCC = 3.3 V | VDD=18 V | CL = 10 nF |
| RON = 0 Ω | ROFF = 0 Ω |
Figure 6-18 VOUTPD Output Active Pulldown Voltage vs Temperature

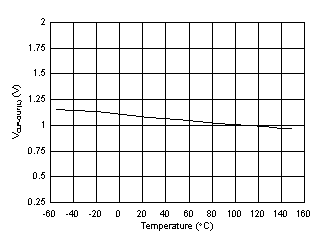

Figure 6-20 VCLP-OUT(L) Short Circuit Clamping Voltage vs Temperature

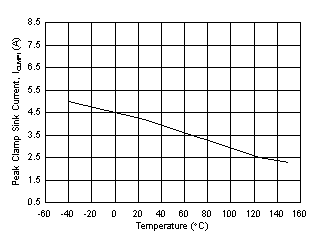

Figure 6-22 ICLMPI Miller Clamp Sink Current vs Temperature

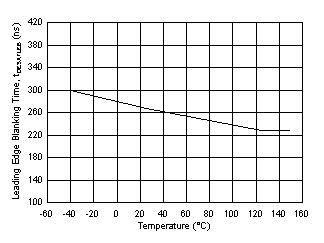

Figure 6-24 tDESATLEB DESAT Leading Edge Blanking Time vs Temperature

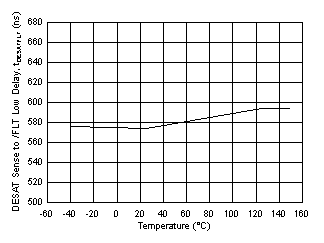

Figure 6-26 tDESATFLT DESAT Sense to /FLT Low Delay Time vs Temperature

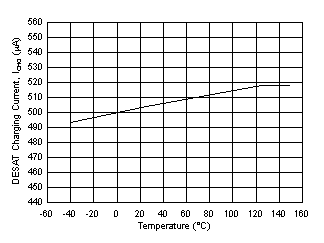

Figure 6-28 ICHG
DESAT Charging Current vs Temperature
Figure 6-5 Output Low
Driver Current vs Temperature
| IN+ = Low | IN- = Low |
| IN+ = High | IN- = Low |

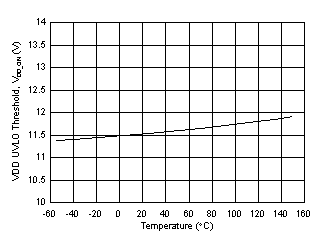

Figure 6-13 VDD UVLO vs
Temperature
| VCC = 3.3 V | VDD=18 V | CL = 100 pF |
| RON = 0 Ω | ROFF = 0 Ω |
| VCC = 3.3 V | VDD=18 V | CL = 10 nF |
| RON = 0 Ω | ROFF = 0 Ω |
Figure 6-19 VCLP-OUT(H) Short Circuit Clamping Voltage vs Temperature

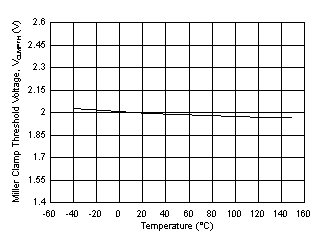

Figure 6-21 VCLMPTH Miller Clamp Threshold Voltage vs Temperature
Figure 6-23 tDCLMPI Miller Clamp ON Delay Time vs Temperature

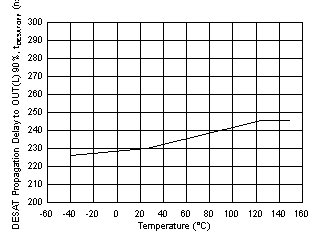

Figure 6-25 tDESATOFF DESAT Propagation Delay to OUT(L) 90% vs Temperature

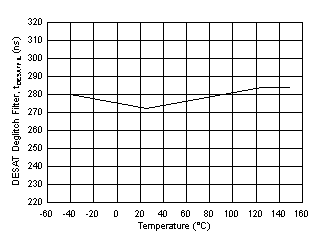

Figure 6-27 tDESATFIL DESAT Deglitch Filter vs Temperature

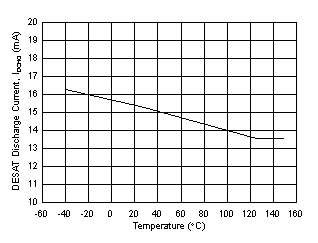

Figure 6-29 IDCHG DESAT Discharge Current vs Temperature
