4.10 Typical Characteristics

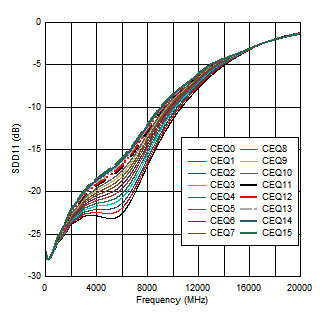

at 85 Ω (from simulation)

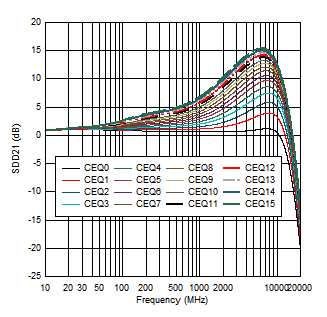

at 85 Ω (from simulation)
A.
Figure 4-5 USB

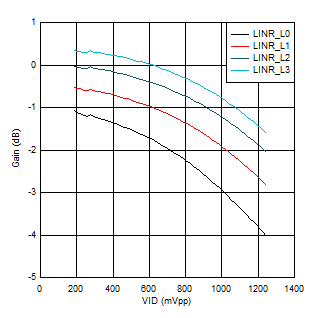

SSRX1 VOD Linearity Settings at 20 MHz and EQ = 0
A.
Figure 4-7 USB

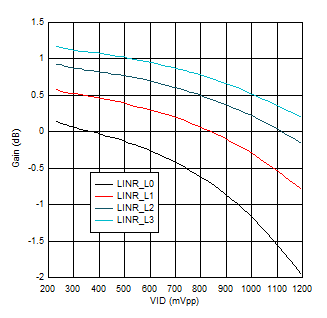

CTX1 VOD Linearity Settings at 20 MHz and EQ = 0
at 85 Ω (from simulation)
at 85 Ω (from simulation)
A.
Figure 4-6 USB

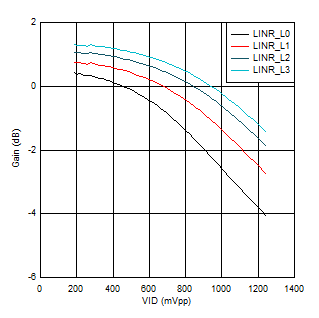

SSRX1 VOD Linearity Settings at 5 GHz and EQ = 0
A.
Figure 4-8 USB

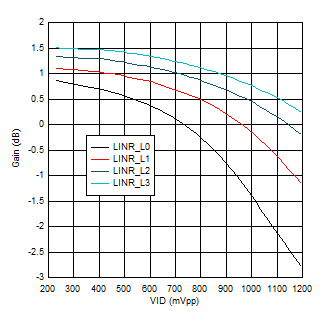

CTX1 VOD Linearity Settings at 5 GHz and EQ = 0
