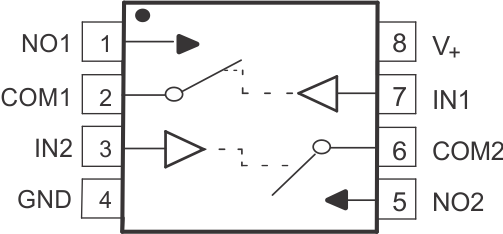

5 Pin Configuration and Functions

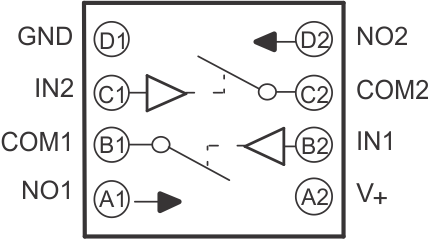

YZT or YZP Package
8-Pin DSBGA
Bottom View
Pin Functions
| PIN | TYPE | DESCRIPTION | ||
|---|---|---|---|---|
| NAME | TSSOP NO. | DSBGA NO. | ||
| COM1 | 2 | B1 | I/O | Common port for switch 1 |
| COM2 | 6 | C2 | I/O | Common port for switch 2 |
| GND | 4 | D1 | GND | Ground |
| IN1 | 7 | B2 | I | Active-high control pin connecting NO1 to COM1. |
| IN2 | 3 | C1 | I | Active-high control pin connecting NO2 to COM2. |
| NO1 | 1 | A1 | I/O | Normally open switch path 1 |
| NO2 | 5 | D2 | I/O | Normally open switch path 2 |
| V+ | 8 | A2 | PWR | Power supply pin |
