7 Parameter Measurement Information

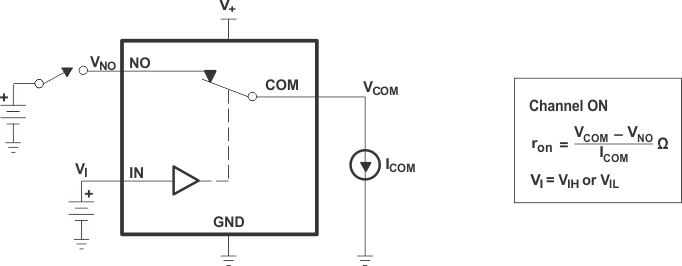

Figure 11. ON-State Resistance (ron)

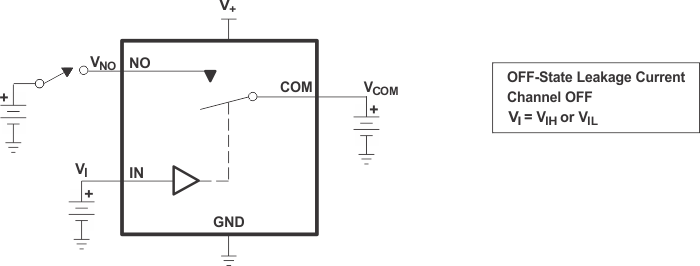

Figure 12. OFF-State Leakage Current (ICOM(OFF), INC(OFF), ICOM(PWROFF), INC(PWR(FF))

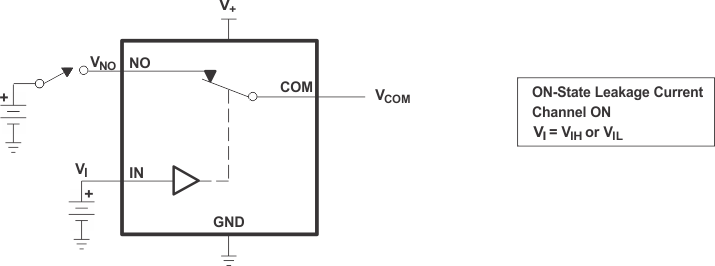

Figure 13. ON-State Leakage Current (ICOM(ON), INC(ON))

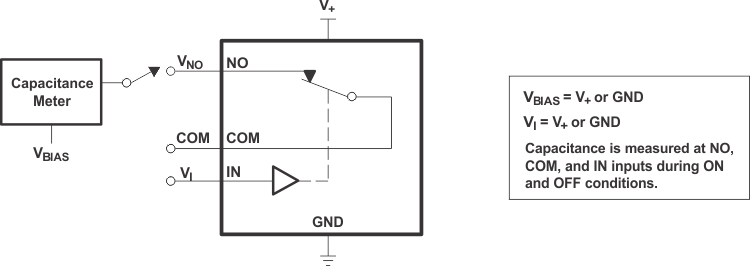

Figure 14. Capacitance (CI, CCOM(OFF), CCOM(ON), CNC(OFF), CNC(ON))
1. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
2. CL includes probe and jig capacitance.

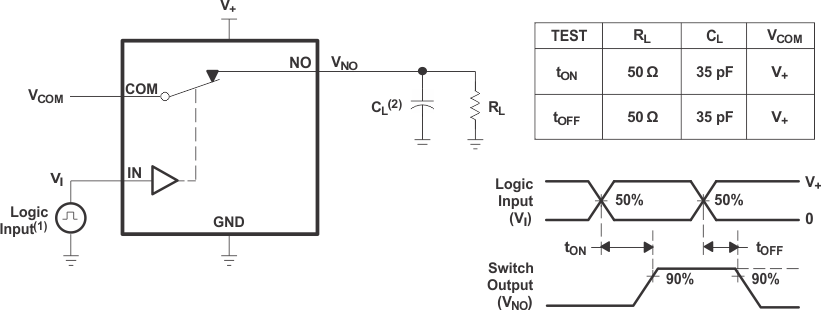

Figure 15. Turnon (tON) and Turnoff Time (tOFF)

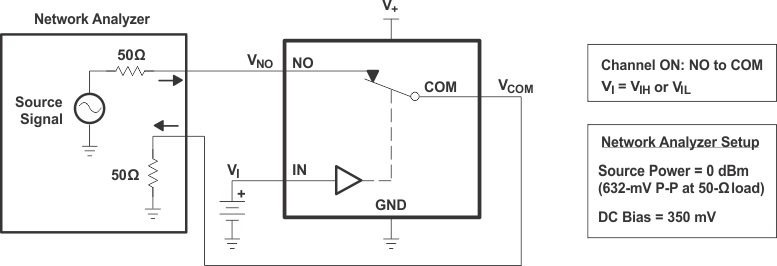

Figure 16. Bandwidth (BW)

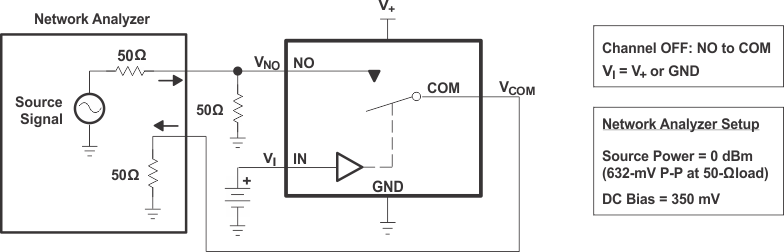

Figure 17. OFF Isolation (OISO)

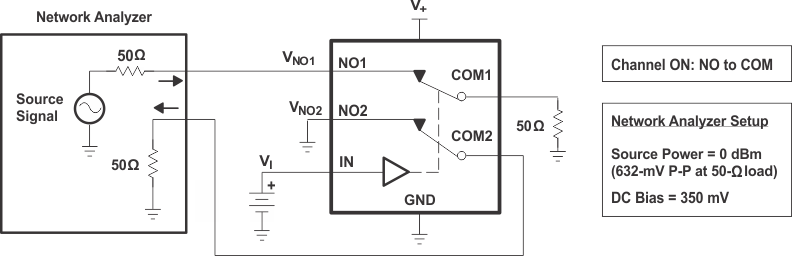

Figure 18. Crosstalk (XTALK)
1. CL includes probe and jig capacitance.
2. All input pulses are supplied by generators having the following characteristics:
PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.

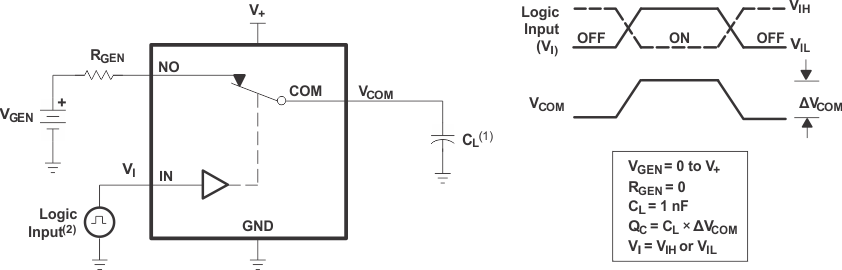

Figure 19. Charge Injection (QC) PRR ≤ 10 MHz, ZO = 50 Ω, tr < 5 ns, tf < 5 ns.
1. CL includes probe and jig capacitance.

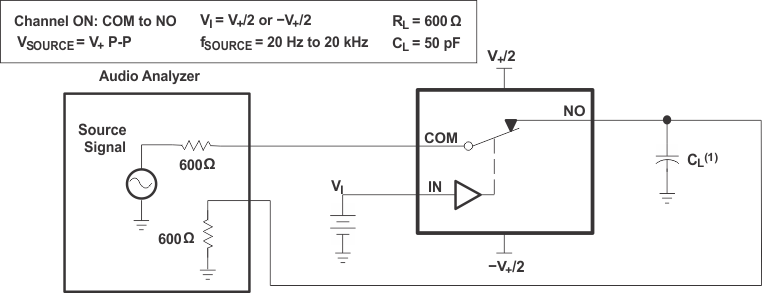

Figure 20. Total Harmonic Distortion (THD)
