5.13 Typical Characteristics
VCC = 3.3 V and TA = 25 °C unless specified otherwise.

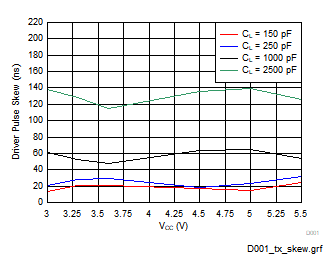

Figure 5-1 Driver Pulse Skew vs Load Capacitance and Supply Voltage at TA =
25 °C (RGT Package)

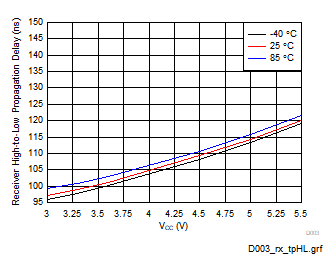

Figure 5-3 Receiver Path High-to-Low
Propagation Delay vs TA and Supply Voltage (RGT Package).
Figure 5-2 Receiver Path Low-to-High Propagation Delay vs TA and Supply
Voltage (RGT Package)

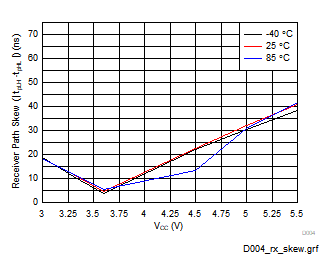

Figure 5-4 Receiver Pulse Skew
(|tpLH - tpHL|) vs TA and Supply
Voltage (RGT Package).
