8.3.3.6 Dynamic Timer Function
During the fast-charge phase, several events increase the timer durations.
- The system load current activates the DPM loop, which reduces the available charging current
- The input current is reduced because the input voltage has fallen to VIN(LOW)
- The device has entered thermal regulation because the IC junction temperature has exceeded TJ(REG)
During each of these events, the internal timers are slowed down proportionately to the reduction in charging current. For example, if the charging current is reduced by half, the fast-charge timer is twice as long as programmed.

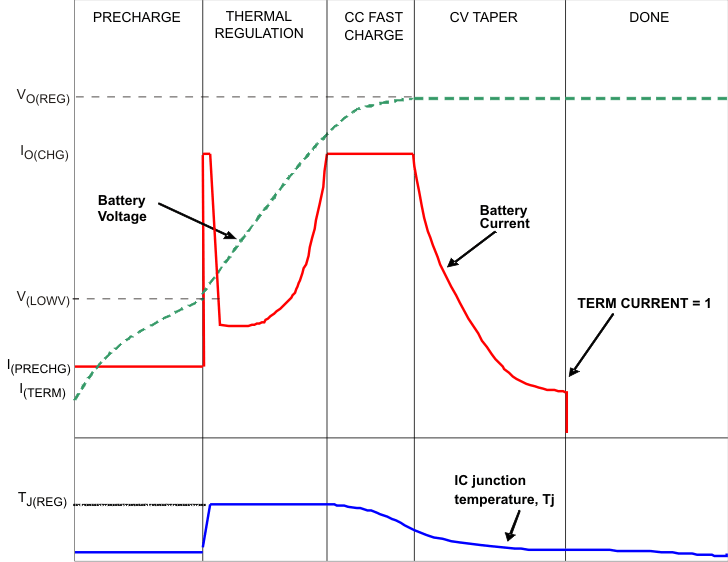

A modified charge cycle with the thermal loop active is shown in Figure 12.
Figure 12. Thermal Loop
