5 Pin Configuration and Functions
 |
 |
|

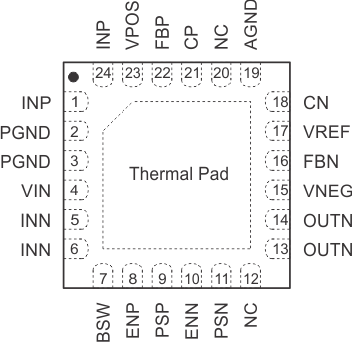

Figure 5-1 24-pin VQFN Bottom View
|

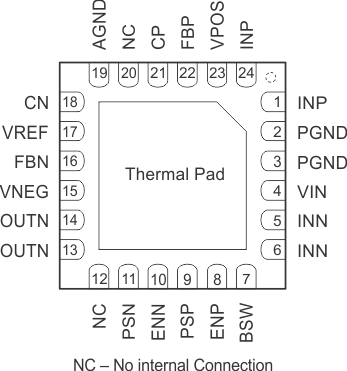

Figure 5-2 24-pin VQFN
Top View
|
Table 5-1 Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| NAME | NO. | ||
| AGND | 19 | — | Analog ground pin |
| BSW | 7 | O | Gate-control pin for external battery switch. This pin goes low when ENP is set high. |
| CN | 18 | I/O | Compensation pin for inverting converter control |
| CP | 21 | I/O | Compensation pin for boost converter control |
| ENN | 10 | I | Enable pin for the negative-output voltage (0V: disabled, VIN: enabled) |
| ENP | 8 | I | Enable pin for the positive-output voltage (0V: disabled, VIN: enabled) |
| FBN | 16 | I | Feedback pin for the negative-output voltage divider |
| FBP | 22 | I | Feedback pin for the positive-output voltage divider |
| INN | 5, 6 | O | Inverting converter switch pin |
| INP | 1, 24 | O | Boost converter switch pin |
| NC(1) | 12, 20 | — | Not connected |
| OUTN | 13, 14 | I/O | Inverting converter switch output |
| PGND | 2, 3 | — | Power ground pin |
| PSN | 11 | I | Power-save mode enable for inverter stage (0V: disabled, VIN: enabled) |
| PSP | 9 | I | Power-save mode enable for boost converter stage (0V: disabled, VIN: enabled) |
| VIN | 4 | I | Control supply input |
| VNEG | 15 | I | Negative-output voltage-sense input |
| VPOS | 23 | I | Positive-output voltage-sense input |
| VREF | 17 | O | Reference output voltage. Bypass this pin with a 220nF capacitor to ground. Connect the lower resistor of the negative-output voltage divider to this pin. |
| Thermal pad | Thermal pad for thermal performance, connect to PGND | ||
(1) NC - No internal connection
