8.2.6 Application Curves

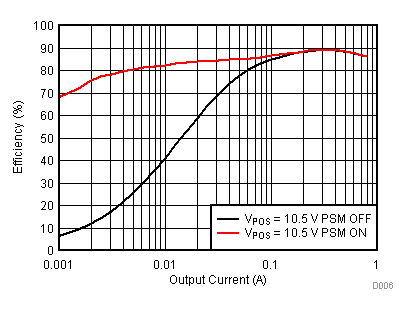

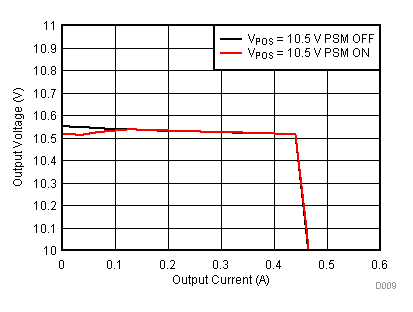

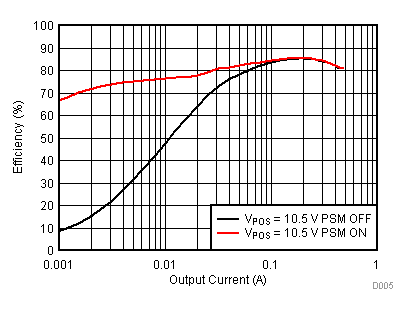

| VI = 3.3V | VPOS = 10.5V | Power-save mode on and off |

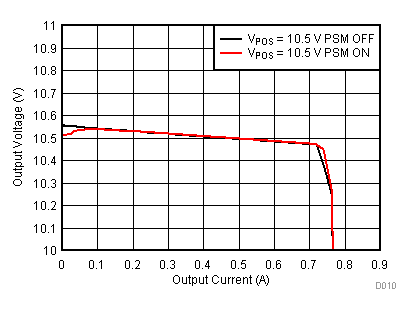

| VI = 5V | VPOS = 10.5V | Power-save mode on and off |

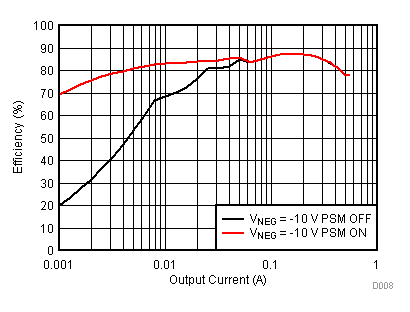

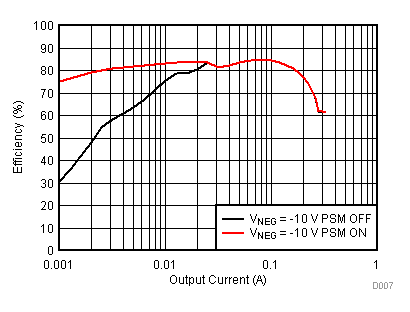

| VI = 3.3V | VNEG = –10V | Power-save mode on and off |
| VI = 3.3V | VPOS = 10.5V | Power-save mode on and off |

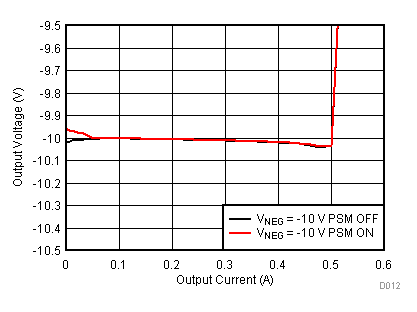

| VI = 3.3V | VNEG = –10V | Power-save mode on and off |

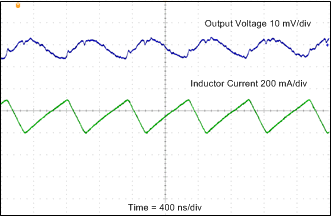

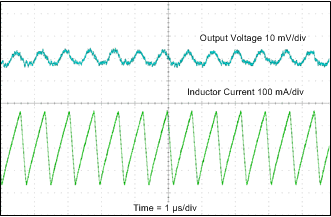

| VI = 3.3V | VPOS = 10.5V IPOS = 200mA | Power-save mode off |
| VI = 3.3V | VNEG = –10V INEG = 200mA | Power-save mode off |

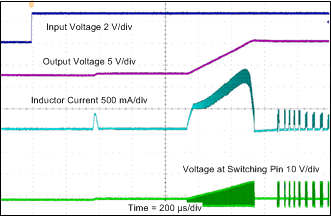

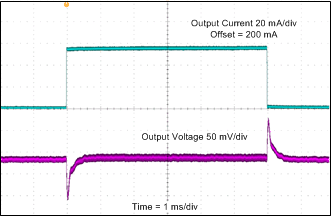

| VI = 3.3V | VPOS = 10.5V | |
| IPOS = 200mA to 250mA | ||

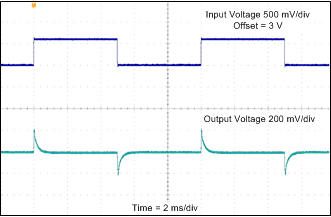

| VI = 3V to 3.6V | VPOS = 10.5V | IPOS = 150mA |
| VI = 3.3V | VPOS = 10.5V | IPOS = 46mA |

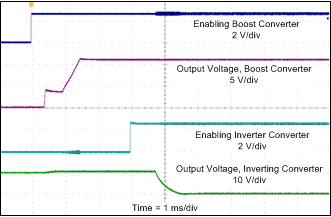

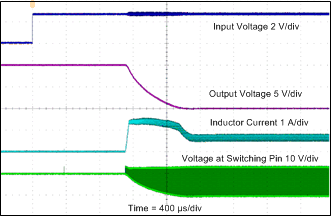

| VI = 3.3V | VPOS = 10.5V | VNEG = –10V |
| IPOS = INEG= 160mA |
| VI = 5V | VNEG = –10V | Power-save mode on and off |
| VI = 5V | VPOS = 10.5V | Power-save mode on and off |

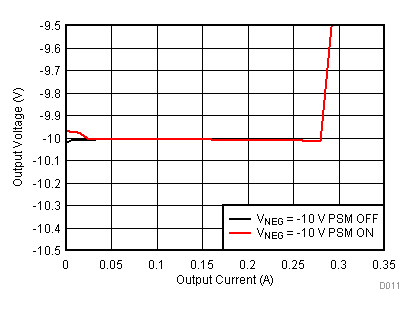

| VI = 5V | VNEG = –10V | Power-save mode on and off |

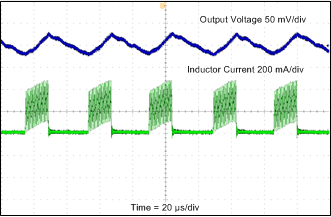

| VI = 3.3V | VPOS = 10.5V IPOS = 20mA | Power-save mode on |

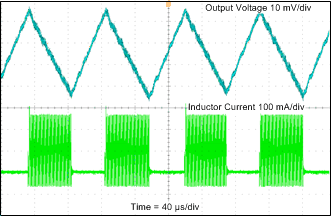

| VI = 3.3V | VNEG = –10V INEG = 20mA | Power-save mode on |

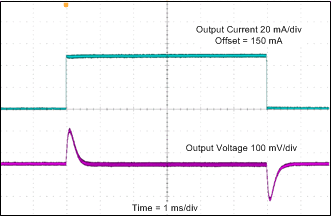

| VI = 3.3V | VNEG = –10V | |
| INEG = 150mA to 200mA | ||

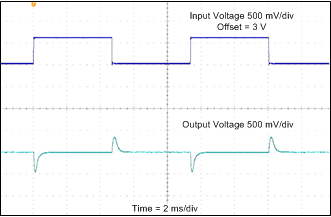

| VI = 3V to 3.6V | VNEG = –10V | INEG = 100mA |
| VI = 3.3V | VNEG = –10V | INEG = 150mA |
