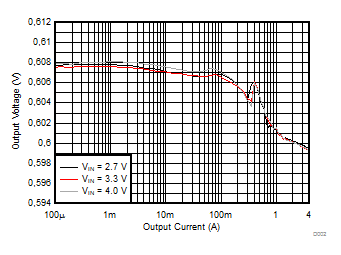

9.2.3 應用曲線
除非另有說明，否則所有繪圖都是在器件設為 PWM 模式時的標稱開關頻率 2.25MHz 下繪制的。BOM 依據表 7-1。

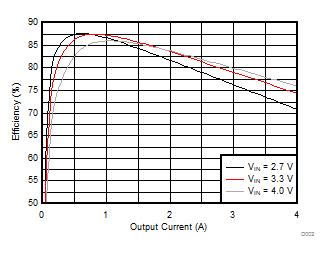

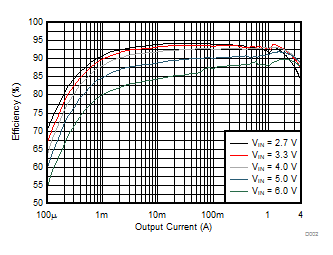

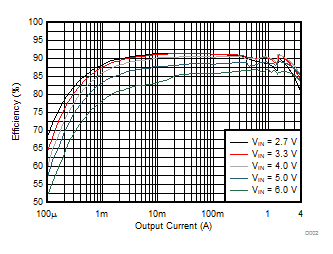

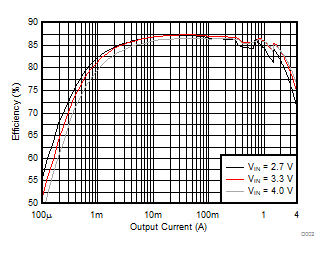

| VOUT = 3.3V | PFM | TA = 25°C |

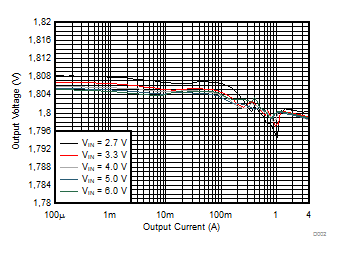

| VOUT = 1.8V | PFM | TA = 25°C |

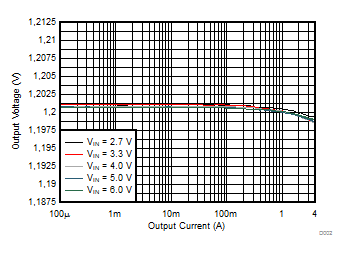

| VOUT = 1.2V | PFM | TA = 25°C |
| VOUT = 1.0V | PFM | TA = 25°C |

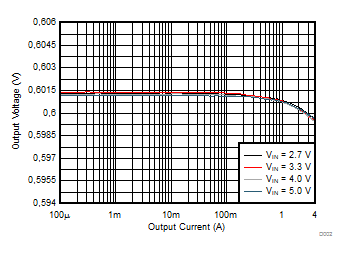

| VOUT = 0.6V | PFM | TA = 25°C |
| VOUT = 3.3V | PFM | TA = 25°C |
| VOUT = 1.8V | PFM | TA = 25°C |
| VOUT = 1.2V | PFM | TA = 25°C |
| VOUT = 1.0V | PFM | TA = 25°C |
| VOUT = 0.6V | PFM | TA = 25°C |

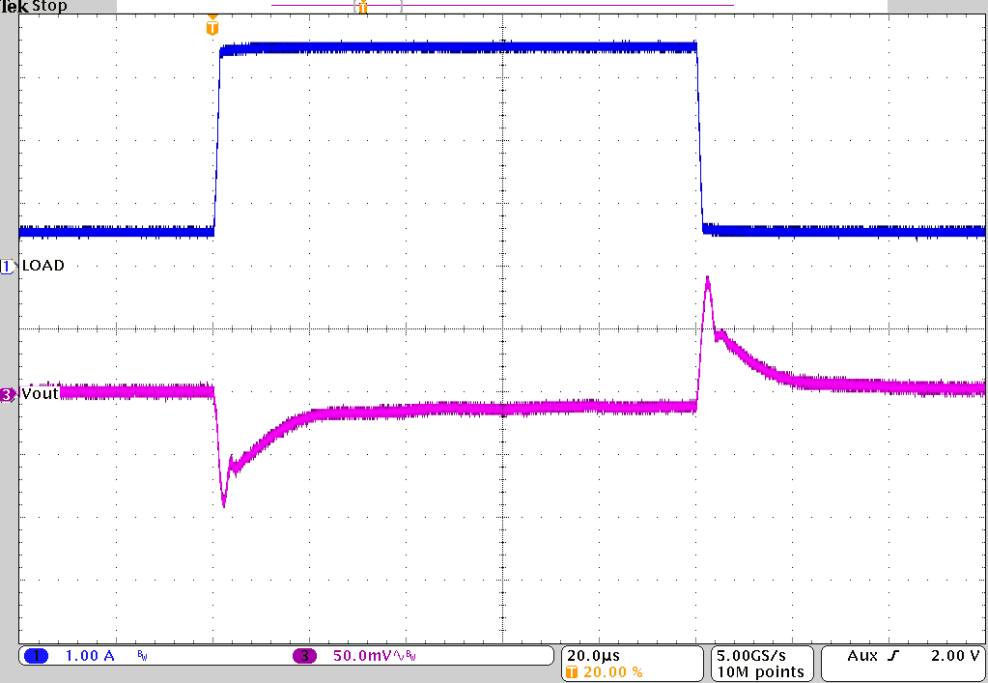

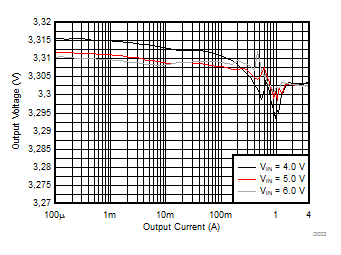

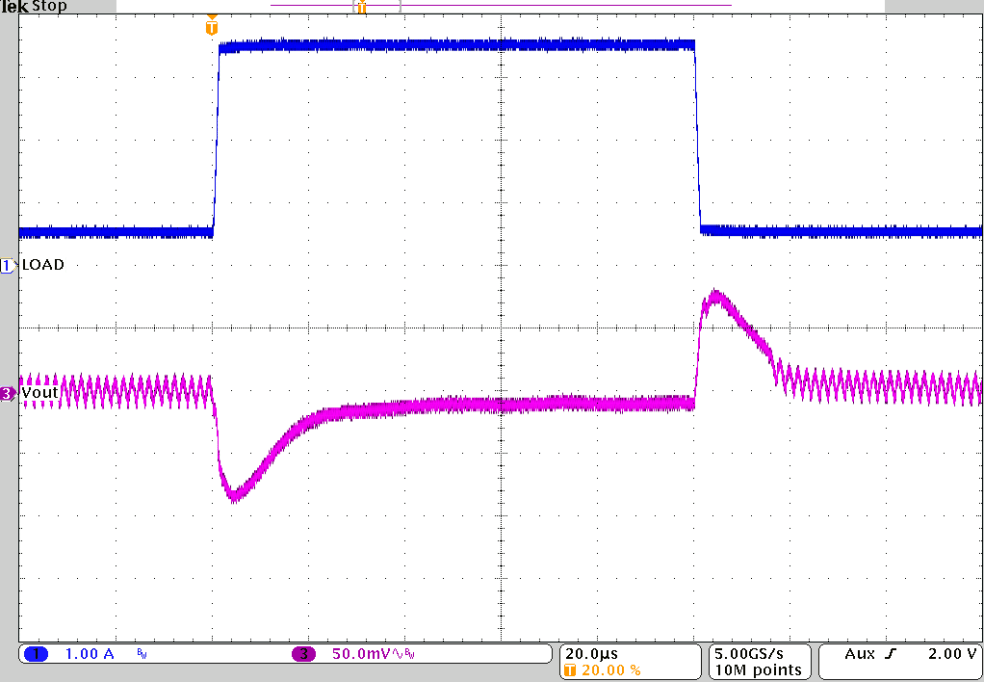

| VOUT = 3.3V | PFM | TA = 25°C |

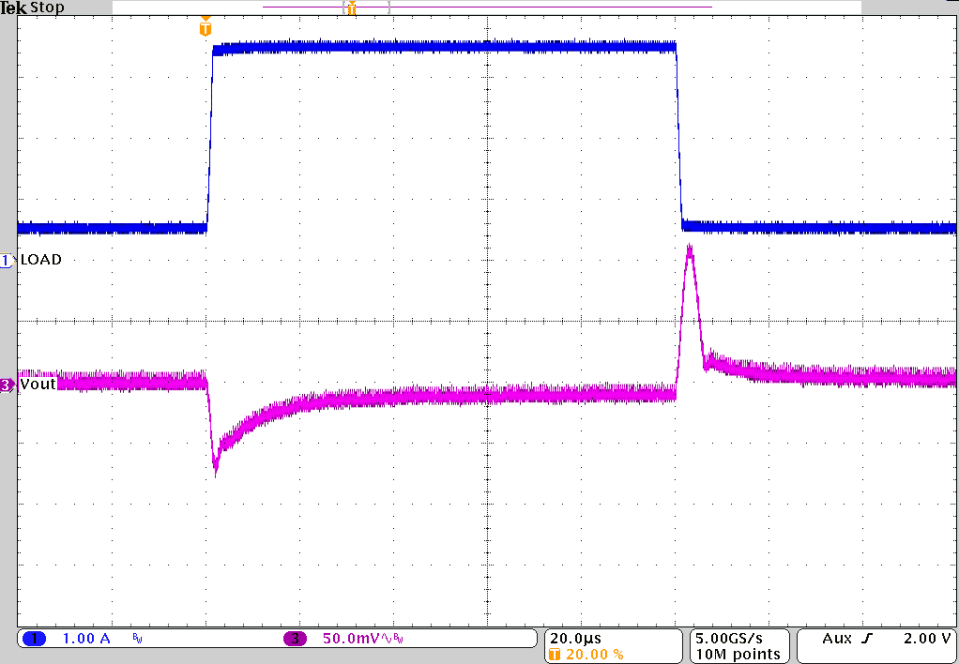

| VIN = 5.0V | IOUT = 0.4A 至 3.6A 至 0.4A | |
| VOUT = 1.8V | PFM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.4A 至 3.6A 至 0.4A | |
| VOUT = 1.2V | PFM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.4A 至 3.6A 至 0.4A | |
| VOUT = 1.0V | PFM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.4A 至 3.6A 至 0.4A | |
| VOUT = 0.6V | PFM | TA = 25°C |
| VIN = 3.3V | IOUT = 0.4A 至 3.6A 至 0.4A | |

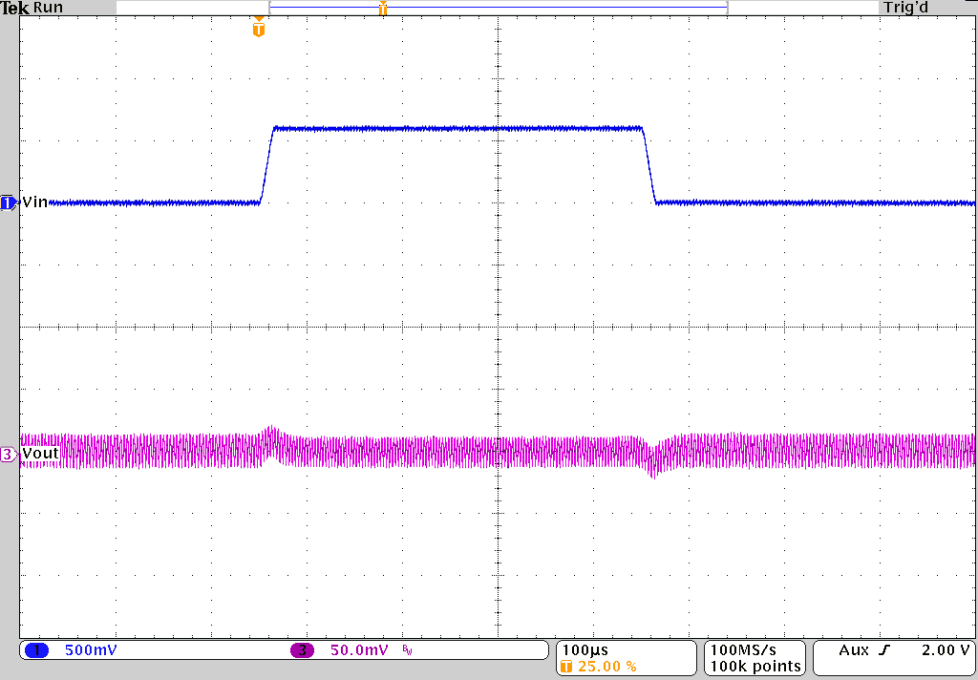

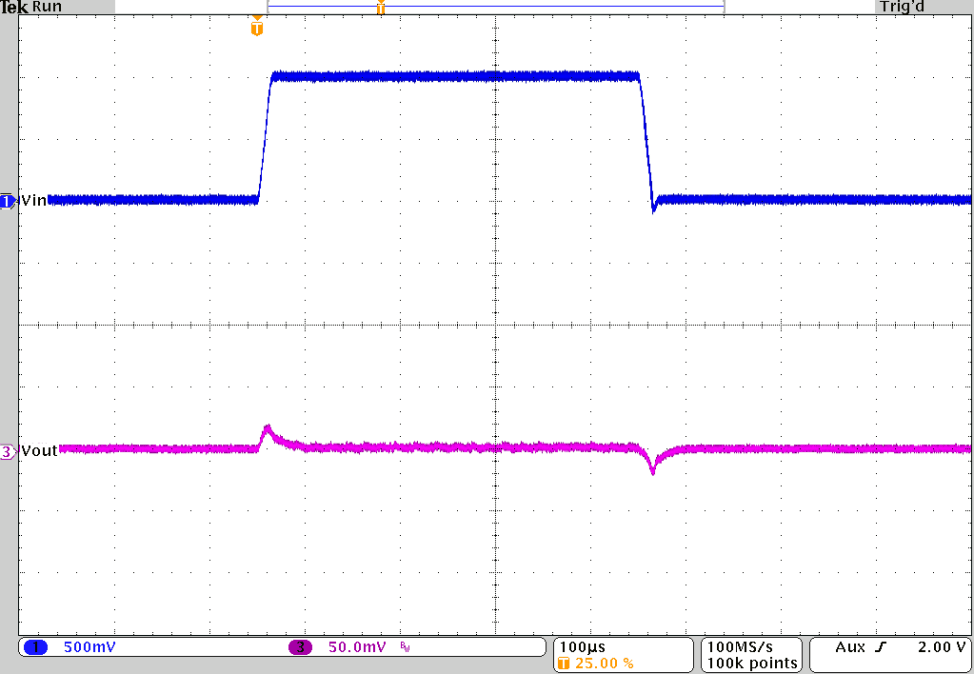

| VOUT = 3.3V | PFM | TA = 25°C |
| IOUT = 0.5A | VIN = 4.5V 至 5.5V 至 4.5V | |

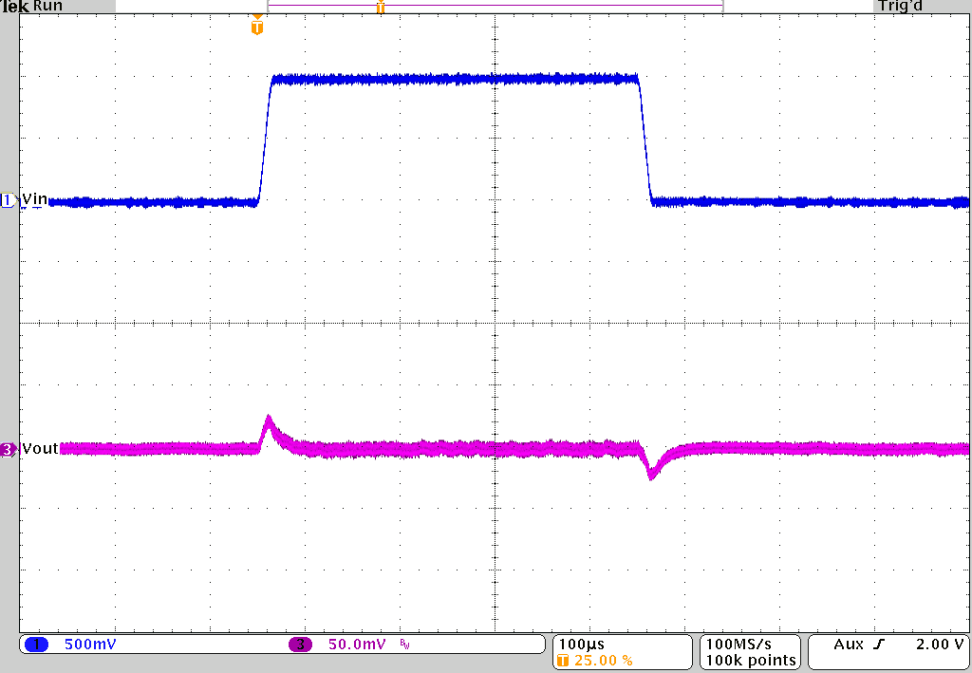

| VOUT = 1.8V | PFM | TA = 25°C |
| IOUT = 0.5A | VIN = 4.5V 至 5.5V 至 4.5V | |

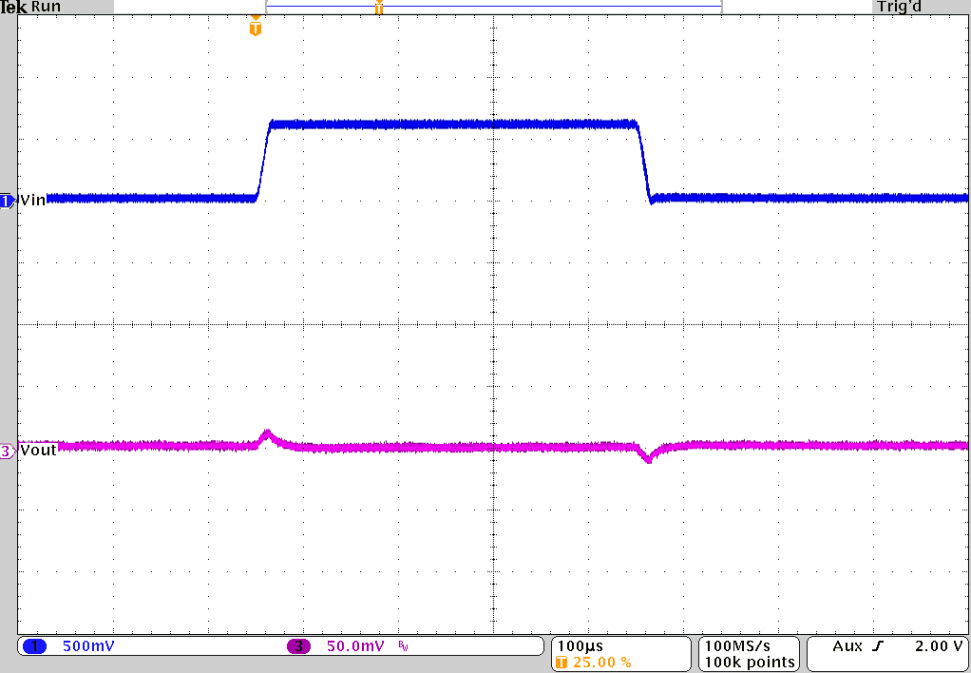

| VOUT = 1.2V | PFM | TA = 25°C |
| IOUT = 0.5A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 1.0V | PFM | TA = 25°C |
| IOUT = 0.5A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 0.6V | PFM | TA = 25°C |
| IOUT = 0.5A | VIN = 3.0V 至 3.6V 至 3.0V | |

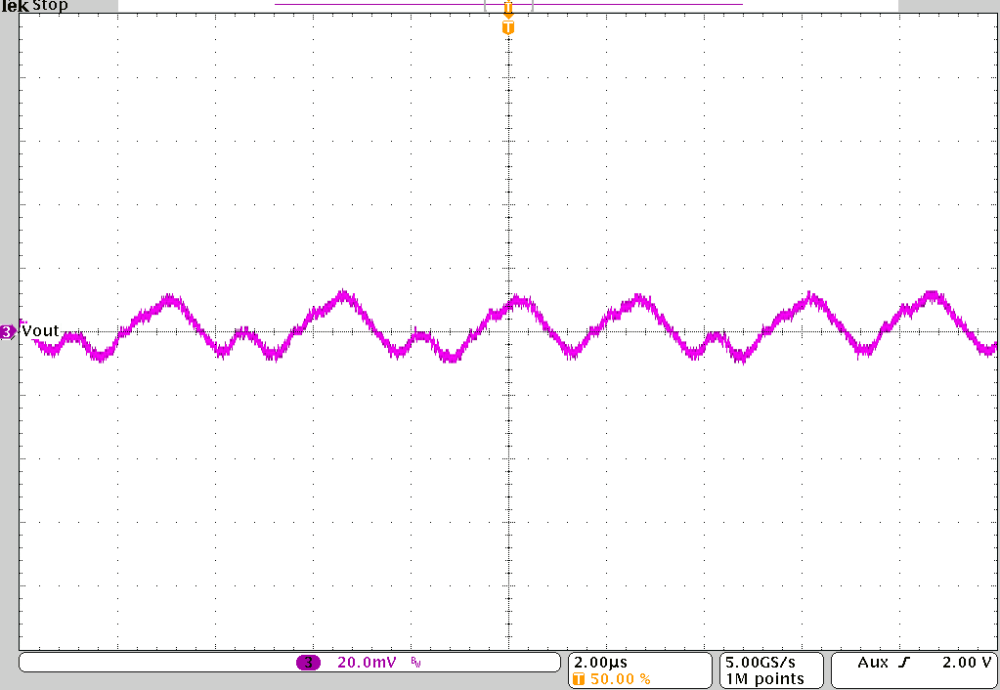

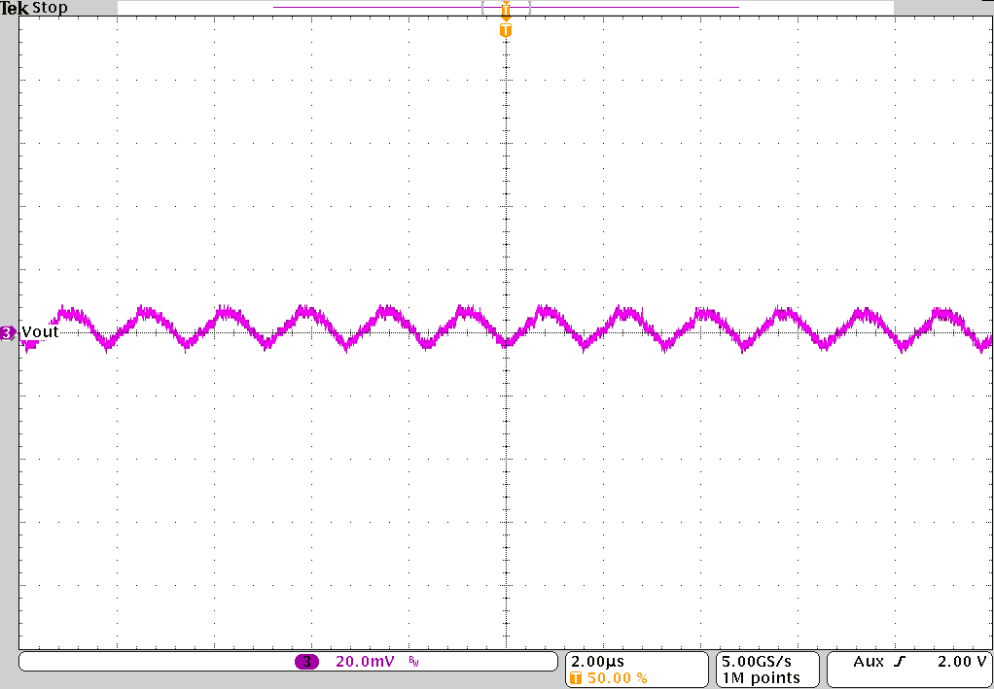

| VOUT = 3.3V | PFM | TA = 25°C |
| IOUT = 0.5A | VIN = 5.0V | BW = 20MHz |
| VOUT = 1.8V | PFM | TA = 25°C |
| IOUT = 0.5A | VIN = 5.0V | BW = 20MHz |
| VOUT = 1.2V | PFM | TA = 25°C |
| IOUT = 0.5A | VIN = 5.0V | BW = 20MHz |
| VOUT = 1.0V | PFM | TA = 25°C |
| IOUT = 0.5A | VIN = 5.0V | BW = 20MHz |
| VOUT = 0.6V | PFM | TA = 25°C |
| IOUT = 0.5A | VIN = 3.3V | BW = 20MHz |

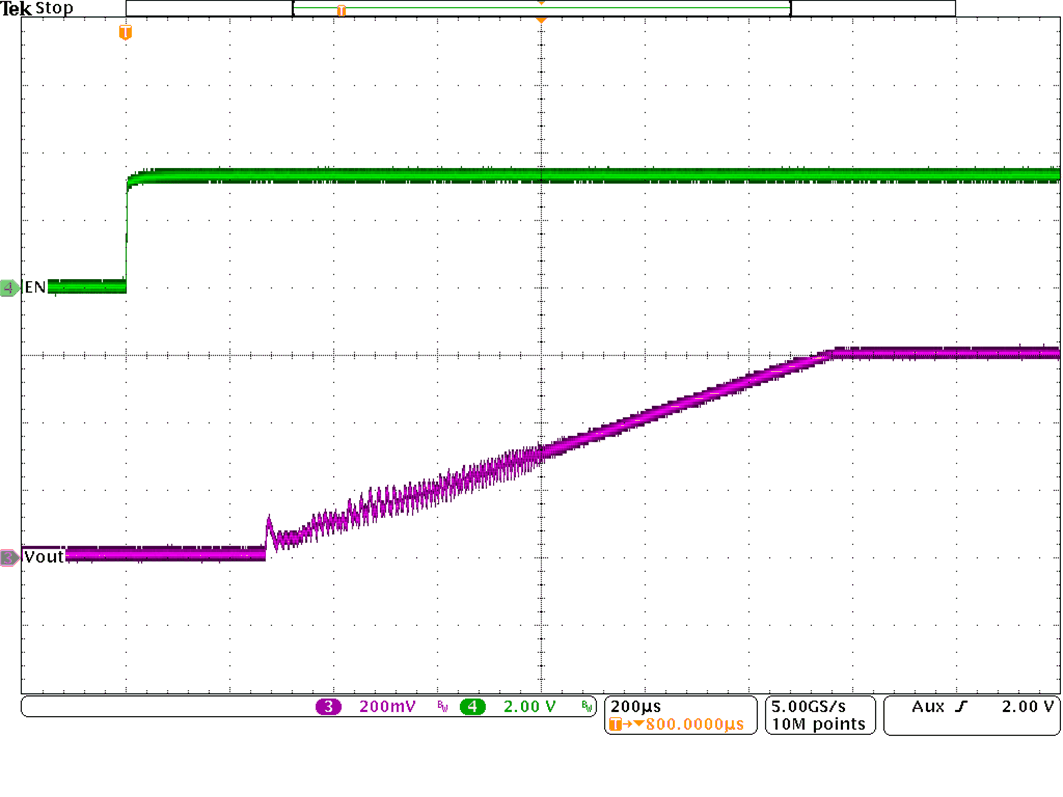

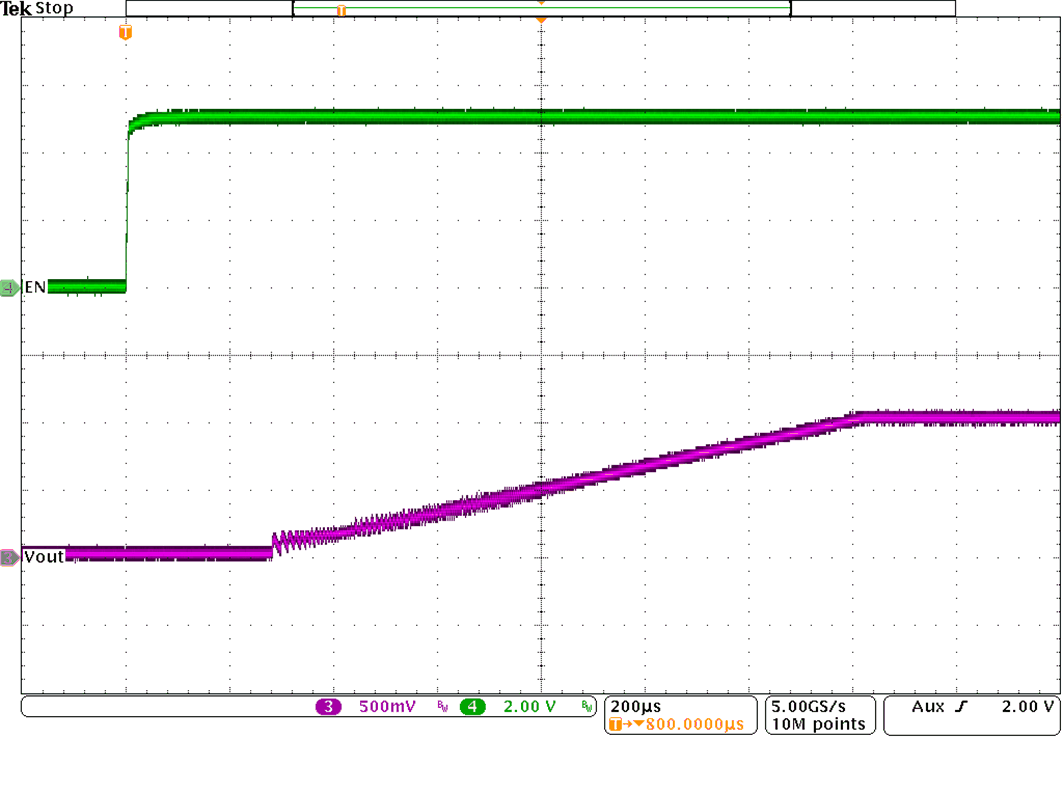

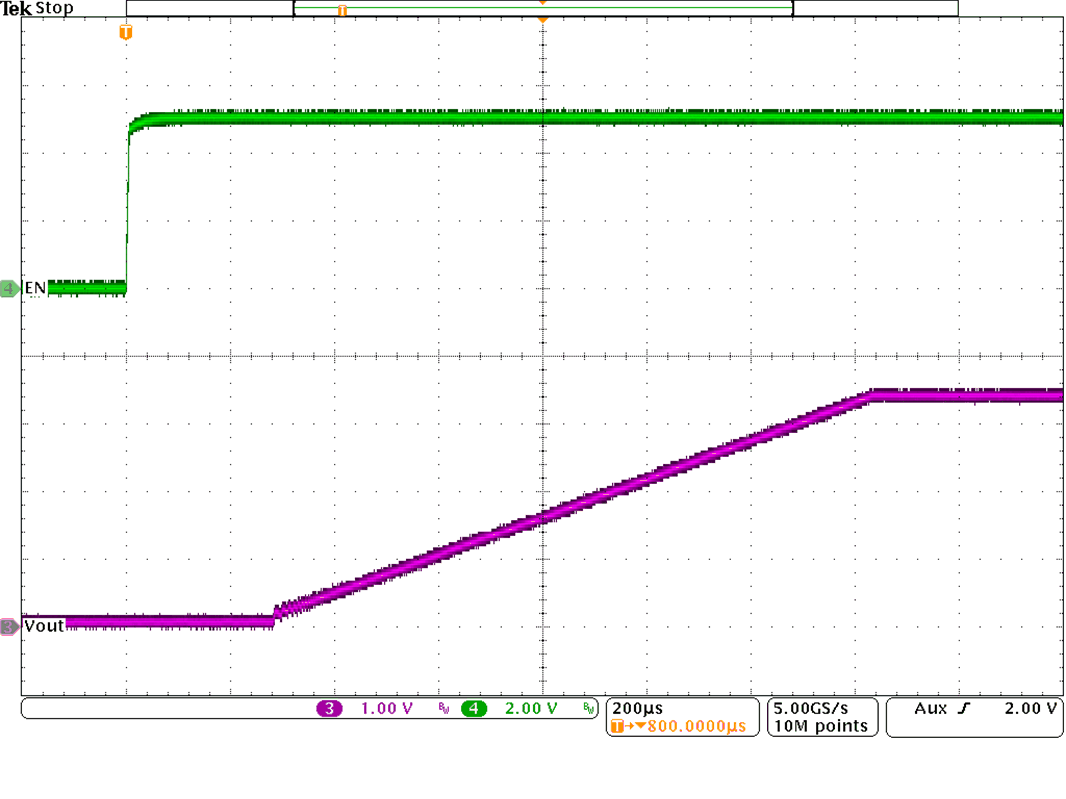

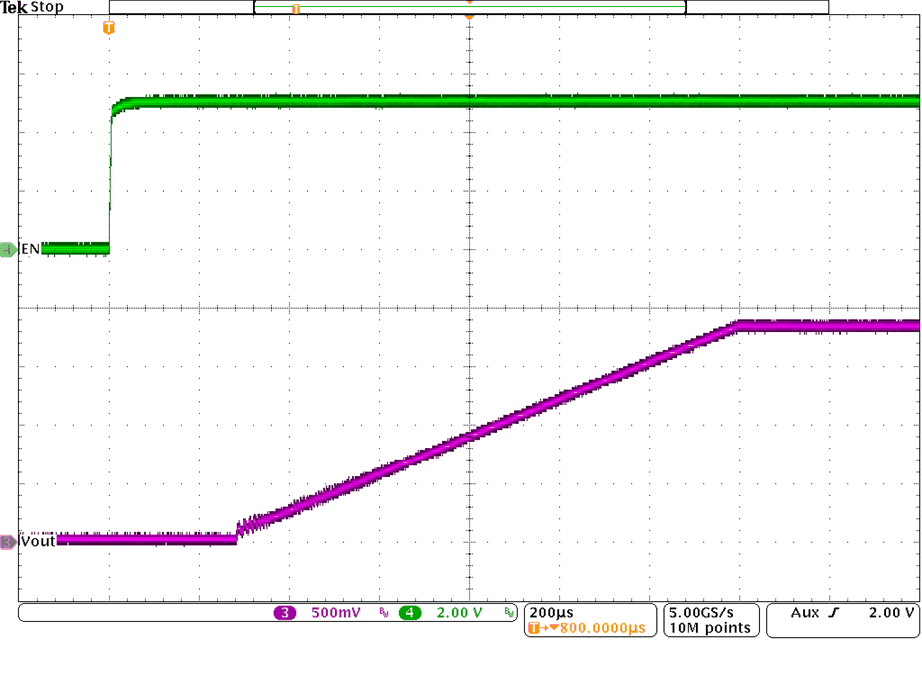

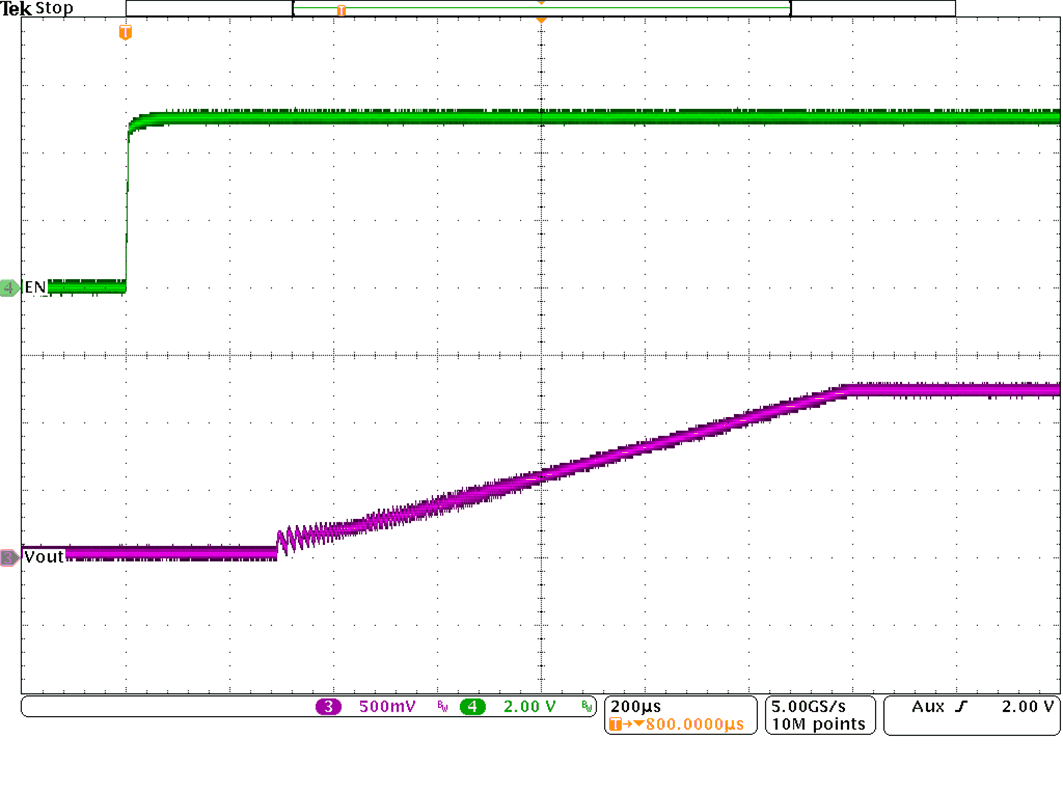

| VOUT = 3.3V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 5V | CSS = 4.7nF |
| VOUT = 1.2V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 5V | CSS = 4.7nF |
| VOUT = 0.6V | PWM | TA = 25°C | ||
| IOUT = 4A | VIN = 3.3V | CSS = 4.7nF |

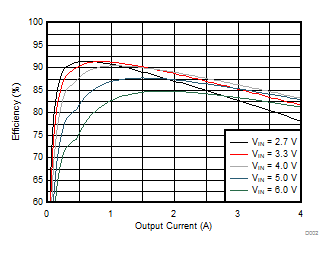

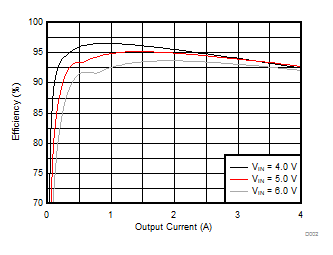

| VOUT = 3.3V | PWM | TA = 25°C |
| VOUT = 1.8V | PWM | TA = 25°C |
| VOUT = 1.2V | PWM | TA = 25°C |
| VOUT = 1.0V | PWM | TA = 25°C |
| VOUT = 0.6V | PWM | TA = 25°C |

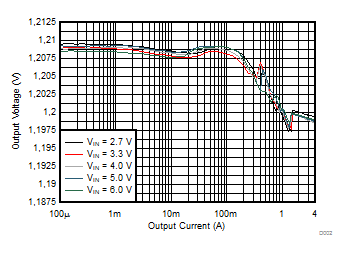

| VOUT = 3.3V | PWM | TA = 25°C |
| VOUT = 1.8V | PWM | TA = 25°C |
| VOUT = 1.2V | PWM | TA = 25°C |
| VOUT = 1.0V | PWM | TA = 25°C |
| VOUT = 0.6V | PWM | TA = 25°C |

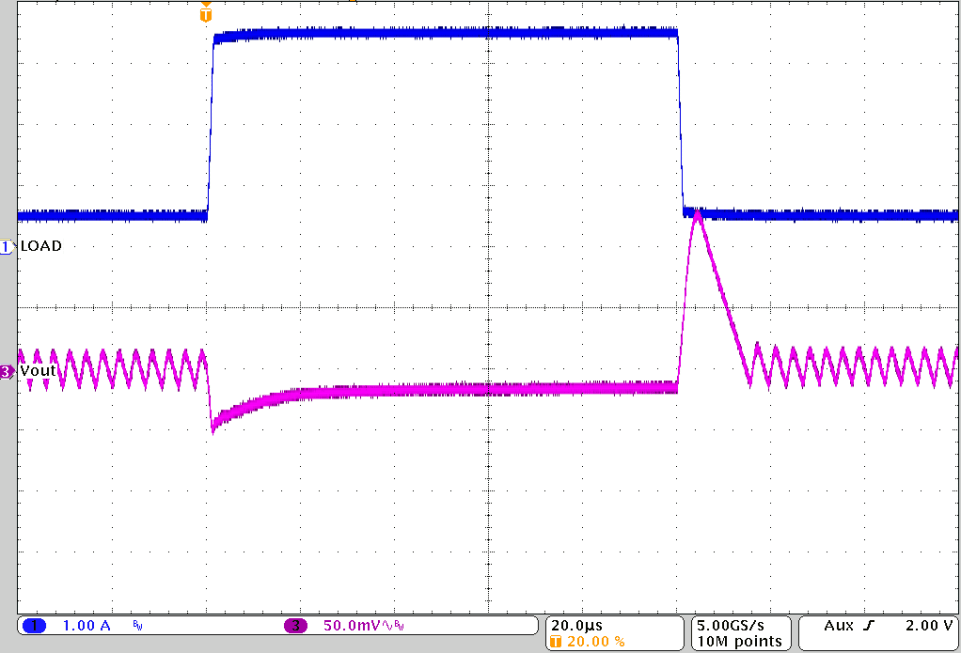

| VOUT = 3.3V | PWM | TA = 25°C |

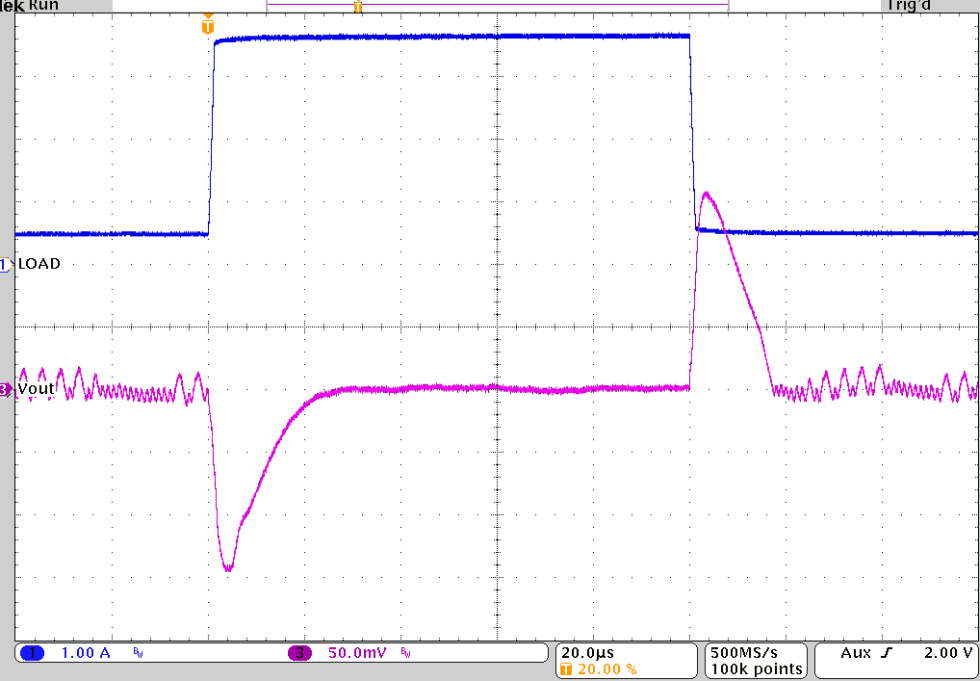

| VIN = 5.0V | IOUT = 0.4A 至 3.6A 至 0.4A | |

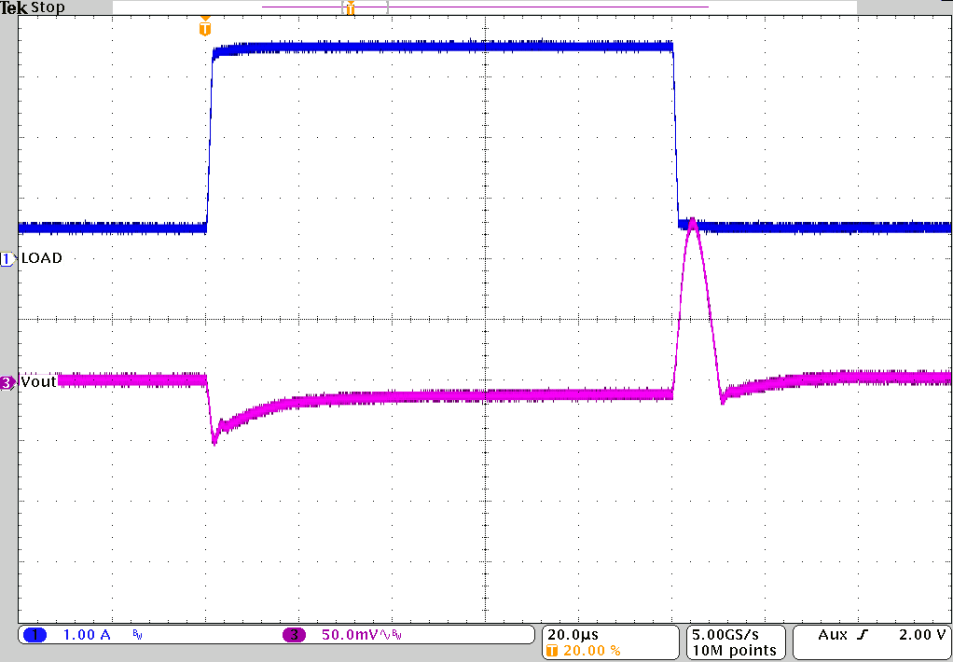

| VOUT = 1.8V | PWM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.4A 至 3.6A 至 0.4A | |
| VOUT = 1.2V | PWM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.4A 至 3.6A 至 0.4A | |
| VOUT = 1.0V | PWM | TA = 25°C |
| VIN = 5.0V | IOUT = 0.4A 至 3.6A 至 0.4A | |
| VOUT = 0.6V | PWM | TA = 25°C |
| VIN = 3.3V | IOUT = 0.4A 至 3.6A 至 0.4A | |

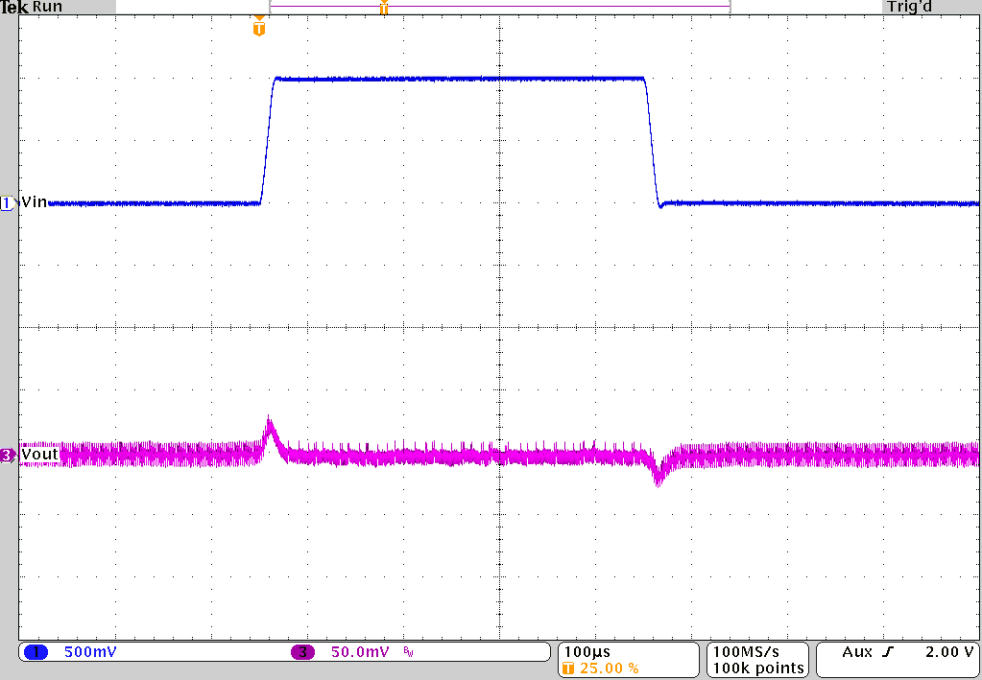

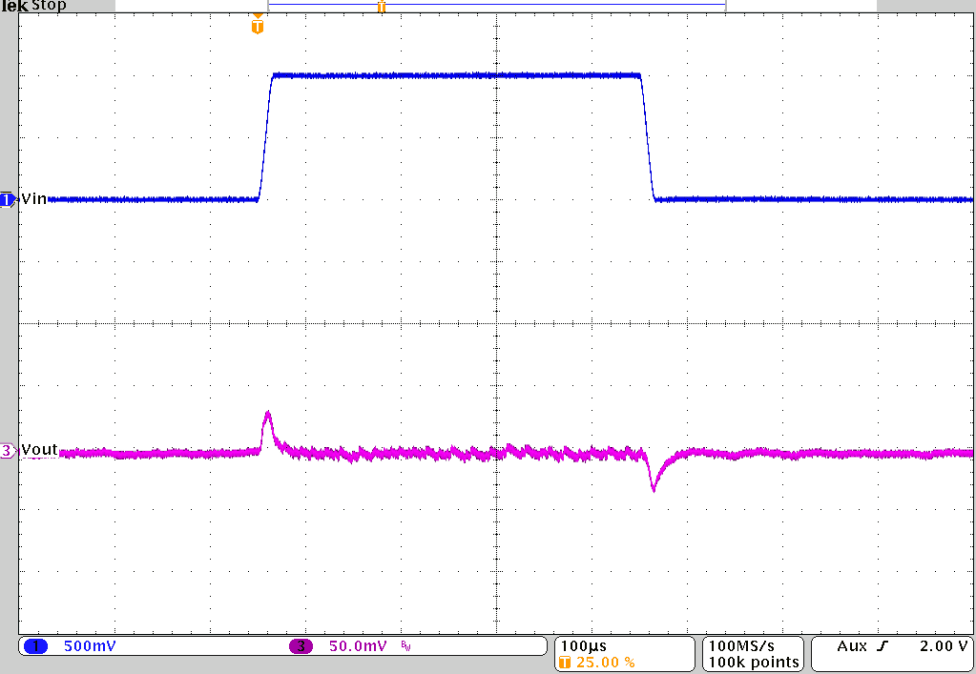

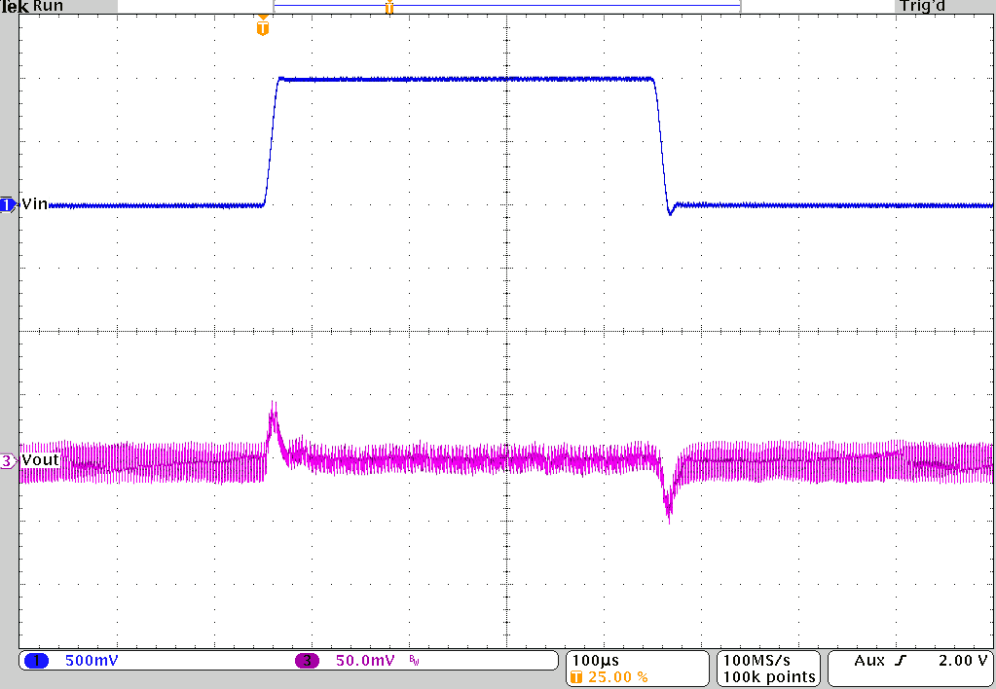

| VOUT = 3.3V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 1.8V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 1.2V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 1.0V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 4.5V 至 5.5V 至 4.5V | |
| VOUT = 0.6V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 3.0V 至 3.6V 至 3.0V | |

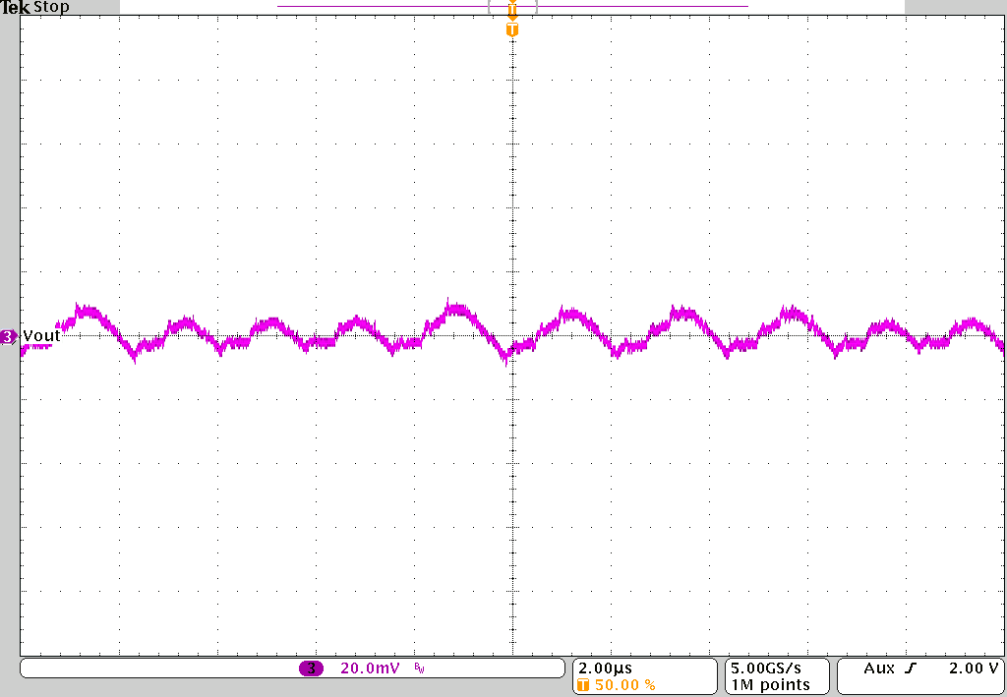

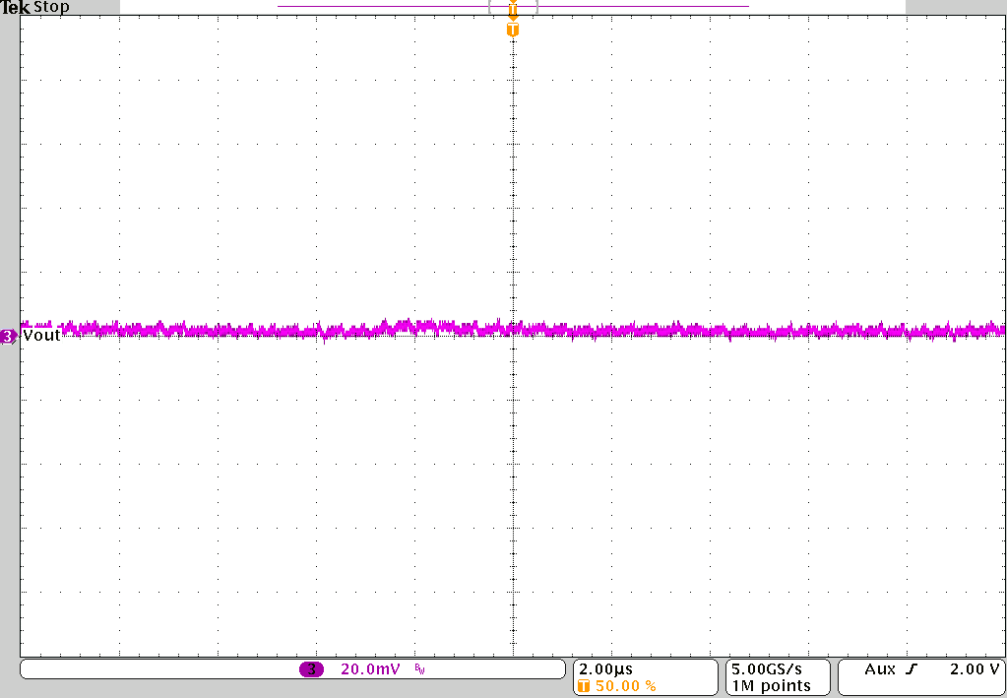

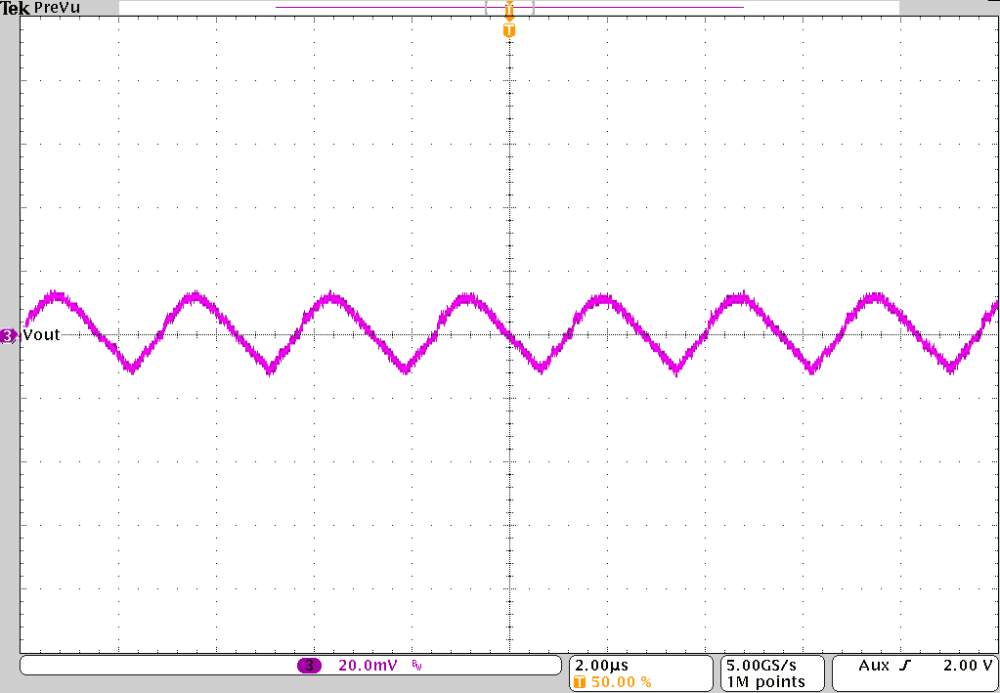

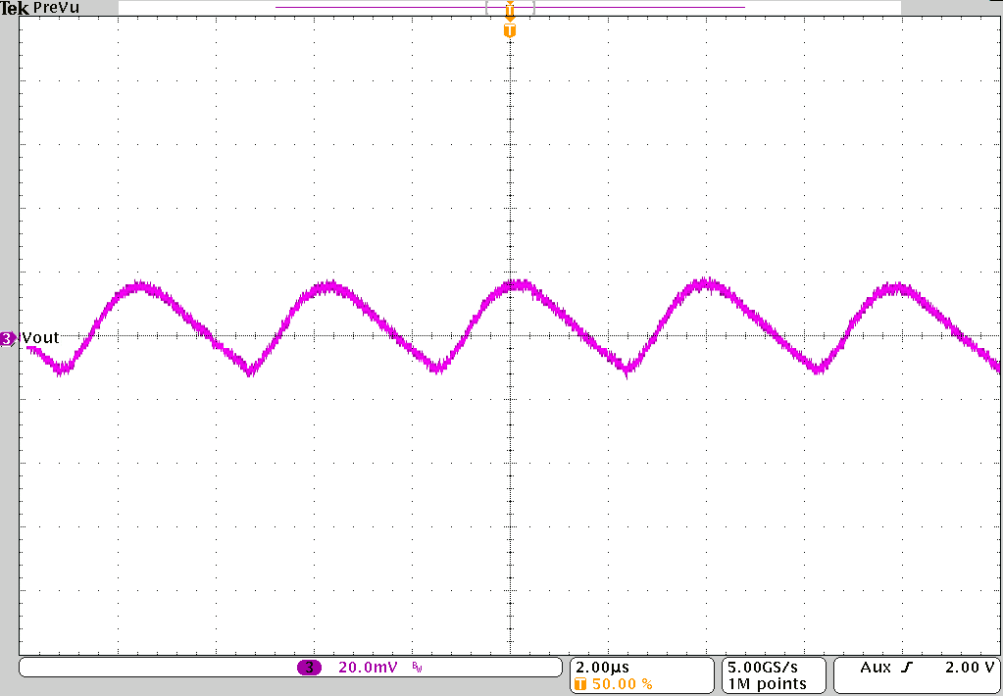

| VOUT = 3.3V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 5.0V | BW = 20MHz |

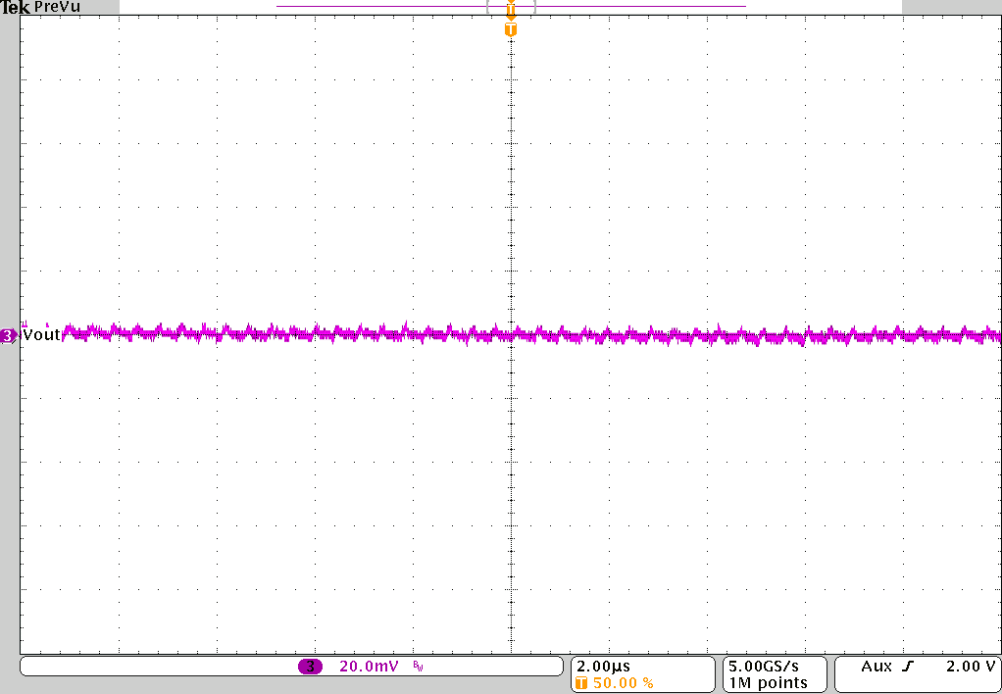

| VOUT = 1.8V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 5.0V | BW = 20MHz |
| VOUT = 1.2V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 5.0V | BW = 20MHz |
| VOUT = 1.0V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 5.0V | BW = 20MHz |
| VOUT = 0.6V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 3.3V | BW = 20MHz |
| VOUT = 1.8V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 5V | CSS = 4.7nF |
| VOUT = 1.0V | PWM | TA = 25°C |
| IOUT = 4A | VIN = 5V | CSS = 4.7nF |
