6.5.1.4 Application Workaround to Support 4-ms and 8-ms SS Settings
To properly design for 4 ms and 8 ms SS settings, additional application consideration is needed. The recommended application workaround to support the 4-ms and 8-ms soft-start settings is to ensure sufficient time delay between the VDD and EN_UVLO signals. The minimum delay between the rising maximum VDD UVLO level and the minimum turn on threshold of EN_UVLO is at least TDELAY_MIN.
where
- K = 9 ms/V for SS setting of 4 ms
- K = 18 ms/V for SS setting of 8 ms
- VREF is the internal reference voltage programmed by VSEL pin strap
For example, if SS setting is 4 ms and VREF = 1 V, program the minimum delay at least 9 ms; if SS setting is 8 ms, the minimum delay must be programmed at least 18 ms. See Figure 6-5 and Figure 6-6 for detailed timing requirement. Because TPS549B22 is a PMBus device, the end user has the option of programming power-on delay (POD) as another workaround. Be sure to follow the same calculation to determine the needed POD (see Section 7.18 and Table 7-17 for detailed information).

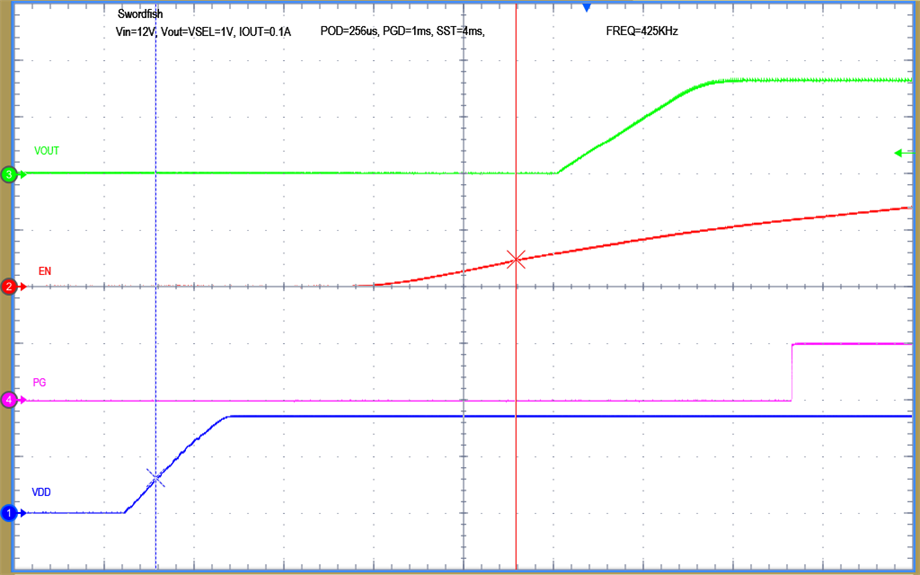

Figure 6-5 Proper Sequencing of VDD and EN_UVLO to Support the use of 4-ms SS Setting

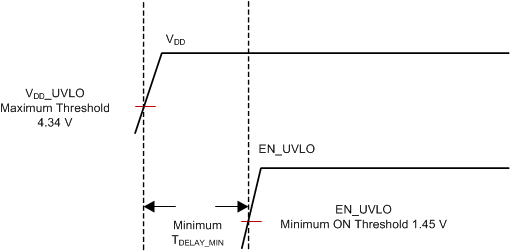

Figure 6-6 Minimum Delay Between VDD and EN_UVLO to Support the use of 4-ms and 8-ms SS settingsThe workaround/consideration described previously is not required for SS settings of 1 ms and 2 ms.
