8.2.4 Application Curves

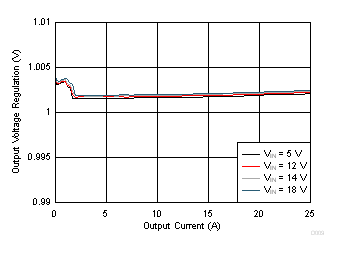

| VDD = VIN | fSW = 650 kHz | SKIP Mode |
| VOUT = 1 V |

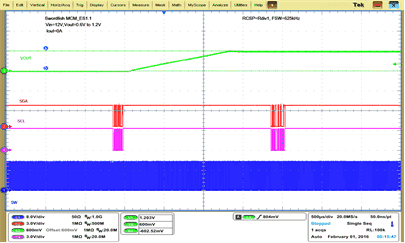

| VIN = 12 V | VOUT = 0.6 V to 1.2 V | |
| IOUT = 0 A | ||

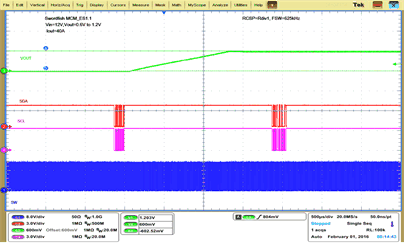

| VIN = 12 V | VOUT = 0.6 V to 1.2 V | |
| IOUT = 40 A | ||

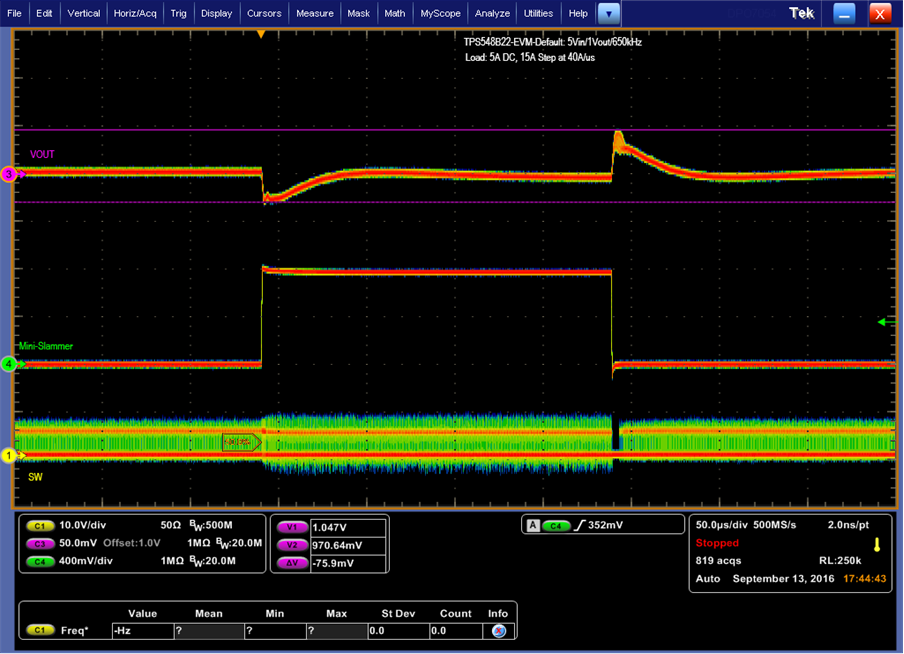

| VDD = VIN = 5 V | fSW = 650 kHz | |
| VOUT = 1 V | 5-A DC with 15-A step at 40A/μs | FCCM mode |

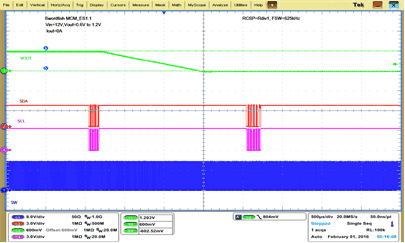

| VIN = 12 V | VOUT = 1.2 V to 0.6 V | |
| IOUT = 0 A | ||
| VIN = 12 V | VOUT = 1.2 V to 0.6 V | |
| IOUT = 40 A | ||
