8.2.1 Full Analog Configuration
A resistor to ground on the FSEL, COMP, SS/PFM, and ILIM pins configure the device. Any of these pins can be grounded to use the default values and reduce component count.

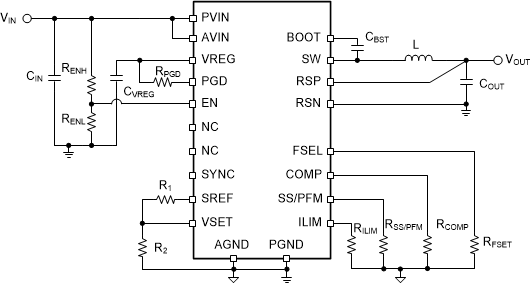

Figure 8-1 Full Analog Configuration
