3 說明
TPS542A52 是一款具有差分遙感功能的高效同步降壓轉換器。該器件提供具有引腳搭接、可選內部補償?shù)墓潭l率電壓控制模式，可降低系統成本和復雜性。PWM 可通過 SYNC 引腳與外部時鐘保持同步。其他關鍵特性包括 PFM（可提高輕負載效率）、低關斷靜態電流消耗、可調 UVLO（通過 EN 引腳實現）以及單調啟動至預偏置狀態。TPS542A52 是一款無鉛器件，完全符合 RoHS 標準，無需豁免。
器件信息
| 器件型號 | 封裝(1) | 封裝尺寸（標稱值） |
|---|---|---|
| TPS542A52 | VQFN (33) | 4.50mm × 4.00mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。
簡化版原理圖

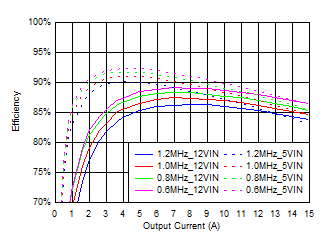

1VOUT 條件下的典型效率
