8.8 Typical Characteristics
Unless otherwise specified the following conditions apply: VIN = 13.5 V, fSW = 400 kHz, L = 10 μH, COUT_CSP = 66 μF, COUT_CSN = 0.1 μF, CBUS = 1 μF, TA = 25 °C.
| VCSN = 8 V | INT = 5.1 kΩ | ||
A.

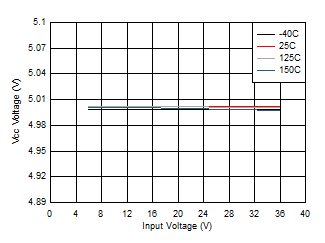

Figure 8-5 VCC vs Input Voltage
| RT = 8.87 kΩ |
| RSNS = 15 mΩ | RSET = 300 Ω |
| VCSN/OUT = 5.1 V | RIMON = 0 kΩ |
| RSNS = 15 mΩ | RSET = 300 Ω | RIMON = 13 kΩ |
| Measured source with 10-cm cable |
A.

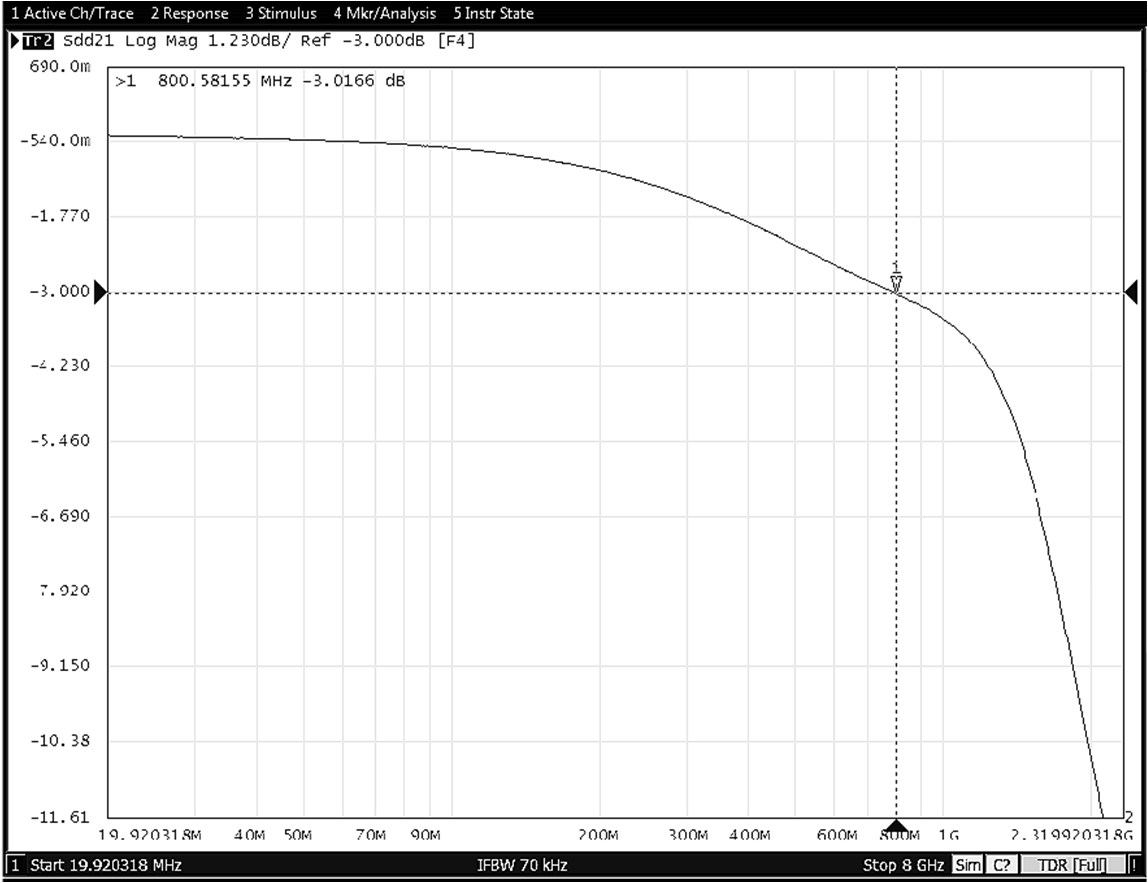

Figure 8-23 Data Transmission Characteristics vs Frequency
A.

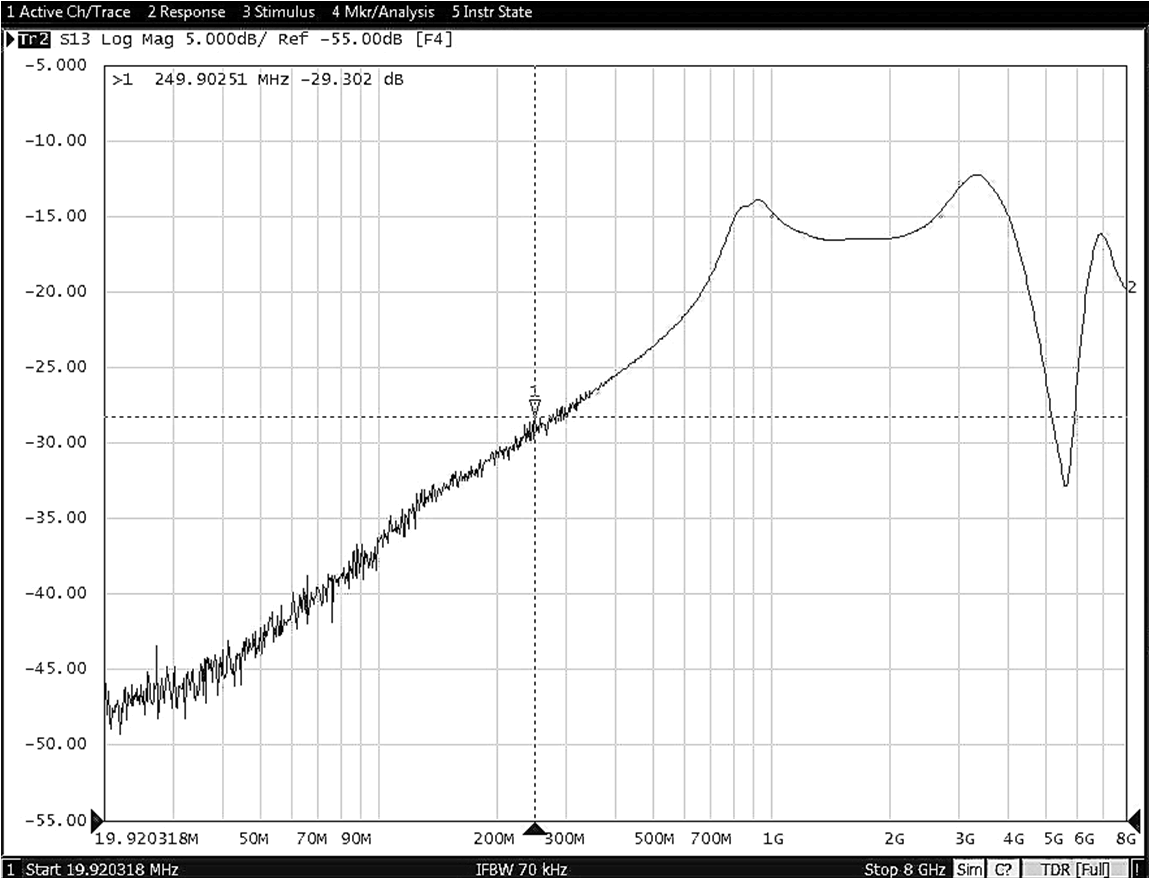

Figure 8-25 On-state Cross-channel
Isolation vs Frequency
| EN = 0 V |
| RIMON = 0 Ω |
| RT = 49.9 kΩ |
| RSNS = 15 mΩ | RSET = 300 Ω |
A.

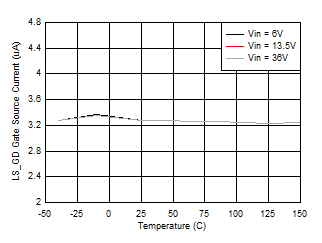

Figure 8-14 LS_GD Gate Source Current vs Junction Temperature
| RSNS = 15 mΩ | RSET = 300 Ω | RIMON = 13 kΩ |
| Measured on TPS25830-Q1 EVM with 10-cm cable |
A.

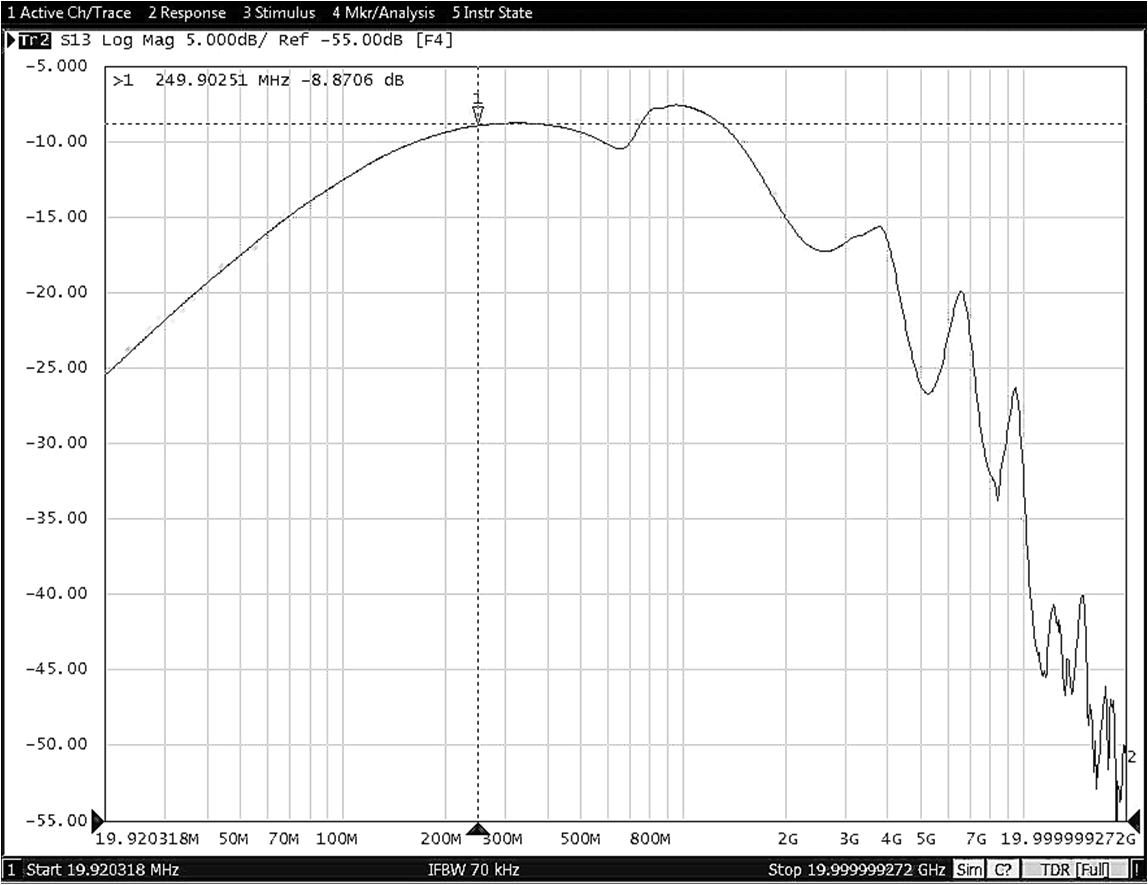

Figure 8-24 Off-state Data-Switch
Isolation vs Frequency
