3 說明
TPS2584x-Q1 是 USB Type-A BC1.2 充電解決方案，其中包括一個同步直流/直流轉換器。憑借電纜壓降補償，不管負載電流如何變化，Vbus 都保持恒定，確保即使在重負載期間也能以合適的電流和電壓為連接的便攜式設備充電。
TPS2584x-Q1 包括可實現 DP 和 DM 直通的高帶寬模擬開關。
TPS25840-Q1 還在 VBUS、DM_IN 和 DP_IN 引腳上集成了電池短路保護。這些引腳可承受最高 18V 的電壓。TPS25842-Q1 不支持?jǐn)?shù)據線 (Dx) 對 VBAT 短路保護。
器件信息(1)
| 器件型號 | 封裝 | 封裝尺寸（標稱值） |
|---|---|---|
TPS25840-Q1 | 超薄四方扁平無引線 (VQFN) (32) | 5.00mm x 5.00mm |
TPS25842-Q1 | 超薄四方扁平無引線 (VQFN) (32) | 5.00mm x 5.00mm |
(1) 如需了解所有可用封裝，請參閱數據表末尾的可訂購產品附錄。

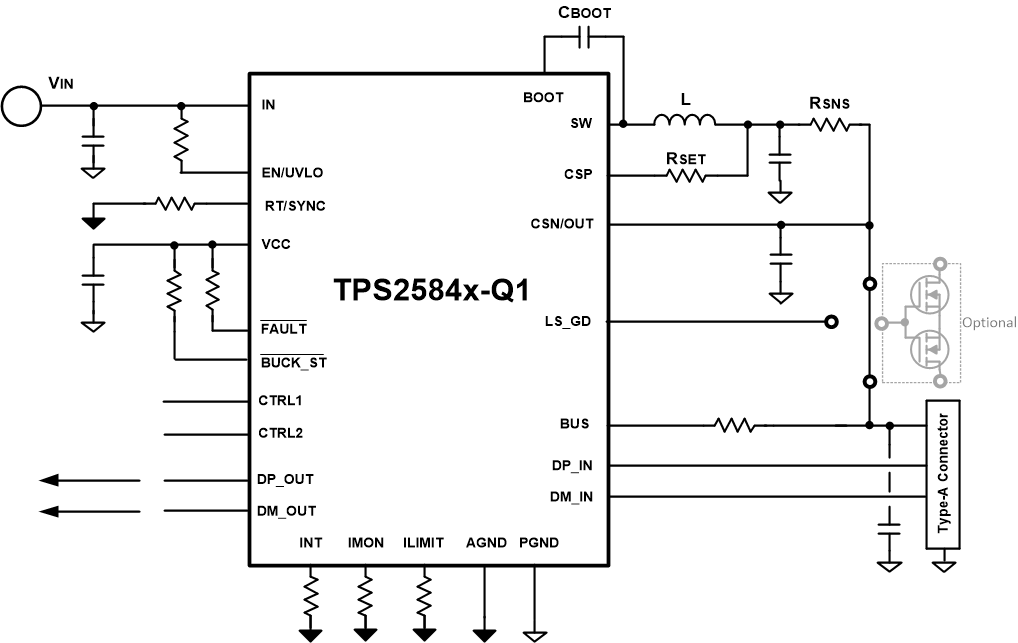

TPS2584x-Q1 簡化版原理圖
降壓效率與輸出電流間的關系 (fsw = 400 kHz)
