11.1 Transient Thermal Impedance
TA = 25°C (unless otherwise stated)

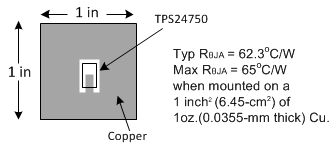

Figure 49. Board Details - Thermal Impedance Characteristic

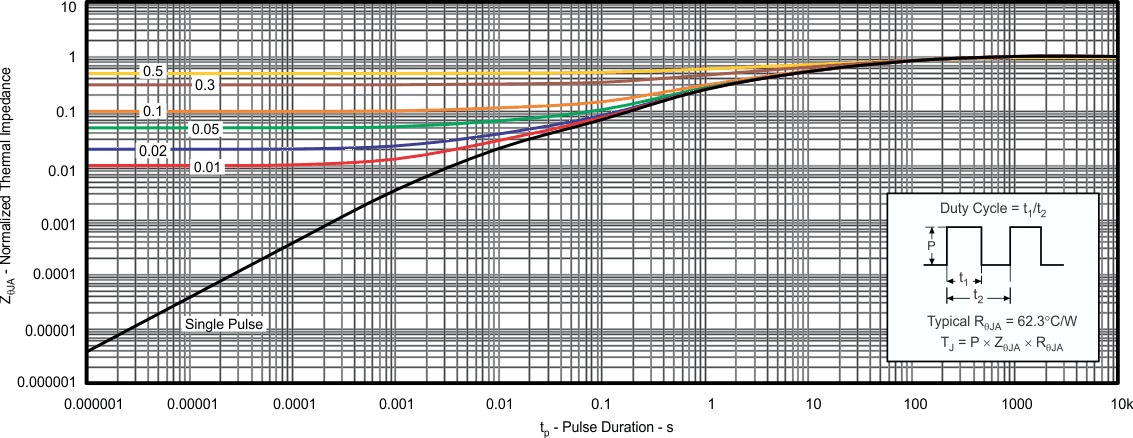

Figure 50. Transient Thermal Impedance with Test Board Details as Shown in Figure 49
