ZHCSDE5A June 2013 – January 2015 TPS22963C , TPS22964C

PRODUCTION DATA.

封裝選項

機械數據 (封裝 | 引腳)

YZP|6
- MXBG347

散熱焊盤機械數據 (封裝 | 引腳)

訂購信息

8 Specifications

8.1 Absolute Maximum Ratings

over operating free-air temperature range (unless otherwise noted)

		MIN	MAX	UNIT
V_IN	Input voltage range	–0.3	6	V
V_OUT	Output voltage range	–0.3	6	V
V_ON	ON pin voltage range	–0.3	6	V
I_MAX	Maximum continuous switch current		3	A
I_PLS	Maximum pulsed switch current, 100 µs pulse, 2% duty cycle, T_A = –40°C to 85°C		4	A
T_A	Operating free air temperature range	–40	85	°C
T_J	Maximum junction temperature		125	°C
T_stg	Storage temperature range	–65	150	°C

8.2 ESD Ratings

			VALUE	UNIT
V_(ESD)	Electrostatic discharge	Human-body model (HBM), per ANSI/ESDA/JEDEC JS-001⁽¹⁾	±2000	V
V_(ESD)	Electrostatic discharge	Charged-device model (CDM), per JEDEC specification JESD22-C101⁽²⁾	±500	V

(1) JEDEC document JEP155 states that 500-V HBM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 500-V HBM is possible with the necessary precautions.

(2) JEDEC document JEP157 states that 250-V CDM allows safe manufacturing with a standard ESD control process. Manufacturing with less than 250-V CDM is possible with the necessary precautions.

8.3 Recommended Operating Conditions

over operating free-air temperature range (unless otherwise noted)

			MIN	TYP	MAX	UNIT
V_IN	Input voltage range		1		5.5	V
V_OUT	Output voltage range		0		5.5	V
V_{IH, ON}	High-level ON voltage	V_IN = 2.5 V to 5.5 V	1.3		5.5	V
V_{IH, ON}	High-level ON voltage	V_IN = 1 V to 2.49 V	1.1		5.5	V
V_{IL, ON}	Low-level ON voltage	V_IN = 2.5 V to 5.5 V	0		0.6	V
V_{IL, ON}	Low-level ON voltage	V_IN = 1 V to 2.49 V	0		0.4	V
C_IN	Input capacitor			1⁽¹⁾		µF

(1) Refer to the application section

8.4 Thermal Information

THERMAL METRIC⁽¹⁾		TPS2296xC	UNIT
		YZP
		6 PINS
R_θJA	Junction-to-ambient thermal resistance	132.0	°C/W
R_θJCtop	Junction-to-case (top) thermal resistance	1.4
R_θJB	Junction-to-board thermal resistance	22.8
ψ_JT	Junction-to-top characterization parameter	5.7
ψ_JB	Junction-to-board characterization parameter	22.6

(1) For more information about traditional and new thermal metrics, see the IC Package Thermal Metrics application report, SPRA953.

8.5 Electrical Characteristics

V_IN = 1 V to 5.5 V, T_A = –40°C to 85°C (unless otherwise noted)

PARAMETER		TEST CONDITIONS	T_A	TYP	MAX	UNIT
I_{Q, VIN}	Quiescent current	I_OUT = 0, V_ON = V_IN = 5 V	Full	66.5	96	µA
		I_OUT = 0, V_ON = V_IN = 4.5 V	Full	57	82
		I_OUT = 0, V_ON = V_IN = 3.3 V	Full	38	60
		I_OUT = 0, V_ON = V_IN = 2.5 V	Full	33.3	55
		I_OUT = 0, V_ON = V_IN = 1.8 V	Full	28.3	45
		I_OUT = 0, V_ON = V_IN = 1.2 V	Full	22.8	36
		I_OUT = 0, V_ON = V_IN = 1.1 V	Full	21.6	34
		I_OUT = 0, V_ON = V_IN = 1 V	Full	20.3	33
I_{SD, VIN}	Shut down current	V_ON = 0, V_IN = 5 V, V_OUT = 0 V	Full	0.76	2	µA
I_{SD, VIN}	Shut down current	V_ON = 0, V_IN = 1 V, V_OUT = 0 V	Full	0.07	0.8	µA
R_ON	On-resistance	V_IN = 5 V, I_OUT = –200 mA	25?C	13.3	21	mΩ
		V_IN = 5 V, I_OUT = –200 mA	Full		26	mΩ
		V_IN = 4.5 V, I_OUT = –200 mA	25?C	13.3	21	mΩ
		V_IN = 4.5 V, I_OUT = –200 mA	Full		26	mΩ
		V_IN = 3.3 V, I_OUT = –200 mA	25?C	13.8	22	mΩ
		V_IN = 3.3 V, I_OUT = –200 mA	Full		27	mΩ
		V_IN = 2.5 V, I_OUT = –200 mA	25?C	15.4	24	mΩ
		V_IN = 2.5 V, I_OUT = –200 mA	Full		29	mΩ
		V_IN = 1.8 V, I_OUT = –200 mA	25?C	18.2	28	mΩ
		V_IN = 1.8 V, I_OUT = –200 mA	Full		33	mΩ
		V_IN = 1.2 V, I_OUT = –200 mA	25?C	25.6	37	mΩ
		V_IN = 1.2 V, I_OUT = –200 mA	Full		44	mΩ
		V_IN = 1.1 V, I_OUT = –200 mA	25?C	28.7	41	mΩ
		V_IN = 1.1 V, I_OUT = –200 mA	Full		50	mΩ
		V_IN = 1 V, I_OUT = –200 mA	25°C	33.8	48	mΩ
		V_IN = 1 V, I_OUT = –200 mA	Full		60	mΩ
V_{HYS, ON}	ON pin hysteresis	V_IN = 5 V	Full	115		mV
		V_IN = 4.5 V	Full	105
		V_IN = 3.3 V	Full	80
		V_IN = 2.5 V	Full	65
		V_IN = 1.8 V	Full	50
		V_IN = 1.2 V	Full	35
		V_IN = 1.1 V	Full	30
		V_IN = 1 V	Full	30
I_ON	ON pin leakage current	V_ON = 1.1 V to 5.5 V	Full		150	nA
I_{RC, VIN}	Reverse current when disabled	V_IN = V_ON = 0 V, V_OUT = 5 V	25°C	–0.02		µA
I_{RC, VIN}	Reverse current when disabled	V_IN = V_ON = 0 V, V_OUT = 5 V	85°C	–2.1		µA
R_PD⁽¹⁾	Output pulldown resistance	V_ON= 0 V, I_OUT = 2 mA	Full	273	325	Ω

(1) Available in TPS22964 only.

8.6 Switching Characteristics

PARAMETER		TEST CONDITION	TPS22963/64	UNIT
PARAMETER		TEST CONDITION	TYP	UNIT
V_IN = 5.0 V, T_A = 25°C (unless otherwise noted)
t_ON	Turn-ON time	R_OUT = 10Ω, C_IN = 1µF, C_OUT = 0.1µF	928	µs
t_OFF	Turn-OFF time	R_OUT = 10Ω, C_IN = 1µF, C_OUT = 0.1µF	2.5
t_R	VOUT rise time	R_OUT = 10Ω, C_IN = 1µF, C_OUT = 0.1µF	890
t_F	VOUT fall time	R_OUT = 10Ω, C_IN = 1µF, C_OUT = 0.1µF	2.1
t_D	Delay time	R_OUT = 10Ω, C_IN = 1µF, C_OUT = 0.1µF	561
V_IN = 4.5 V, T_A = 25°C (unless otherwise noted)
t_ON	Turn-ON time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	905	µs
t_OFF	Turn-OFF time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	2.6
t_R	VOUT rise time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	859
t_F	VOUT fall time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	2.1
t_D	Delay time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	560
V_IN = 3.3 V, T_A = 25°C (unless otherwise noted)
t_ON	Turn-ON time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	836	µs
t_OFF	Turn-OFF time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	2.8
t_R	VOUT rise time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	715
t_F	VOUT fall time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	2
t_D	Delay time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	553
V_IN = 1.8 V, T_A = 25°C (unless otherwise noted)
t_ON	Turn-ON time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	822	µs
t_OFF	Turn-OFF time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	2.8
t_R	VOUT rise time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	651
t_F	VOUT fall time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	2
t_D	Delay time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	558
V_IN = 1.2 V, T_A = 25°C (unless otherwise noted)
t_ON	Turn-ON time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	852	µs
t_OFF	Turn-OFF time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	3.2
t_R	VOUT rise time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	535
t_F	VOUT fall time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	1.8
t_D	Delay time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	594
V_IN = 1.1 V, T_A = 25°C (unless otherwise noted)
t_ON	Turn-ON time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	861	µs
t_OFF	Turn-OFF time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	3.5
t_R	VOUT rise time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	518
t_F	VOUT fall time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	1.9
t_D	Delay time	R_OUT = 10 Ω, C_IN = 1 µF, C_OUT = 0.1 µF	604

8.7 Typical Electrical Characteristics

TPS22963C TPS22964C C003_TPS22964_RON_vs_VIN.png

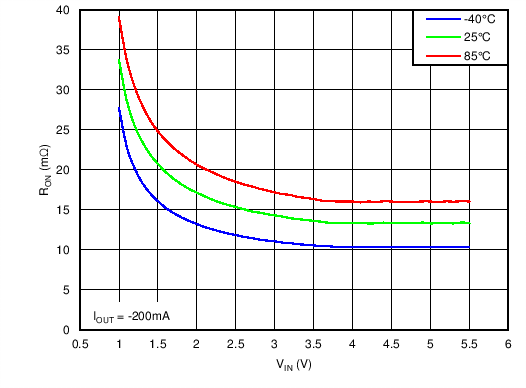

Figure 1. On Resistance vs V_IN

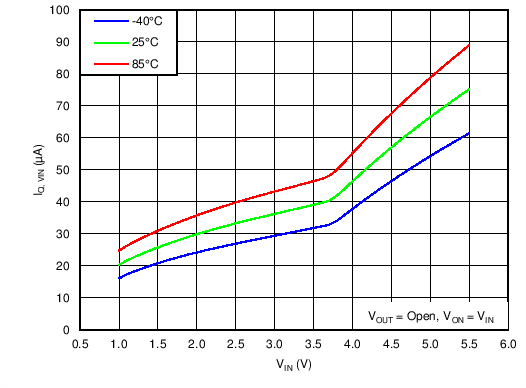

TPS22963C TPS22964C C001_TPS22964_IQ_vs_VIN.png

Figure 3. Quiescent Current vs V_IN

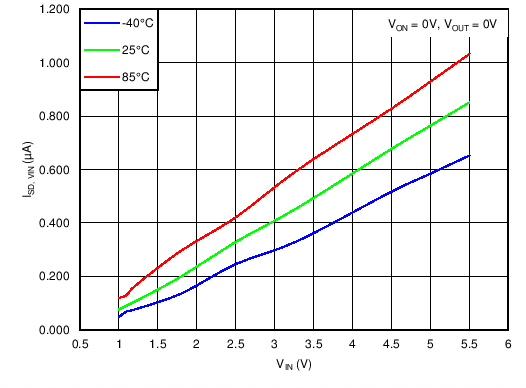

TPS22963C TPS22964C C005_TPS22964_ISD_vs_VIN.png

Figure 5. Shut Down Current vs V_IN

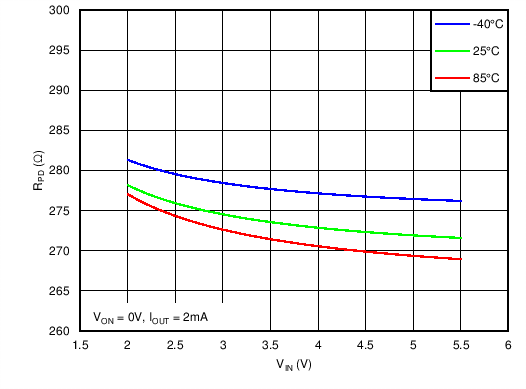

TPS22963C TPS22964C C007_TPS22964_RPD_vs_VIN.png

Figure 7. Output Pulldown Resistance vs V_IN

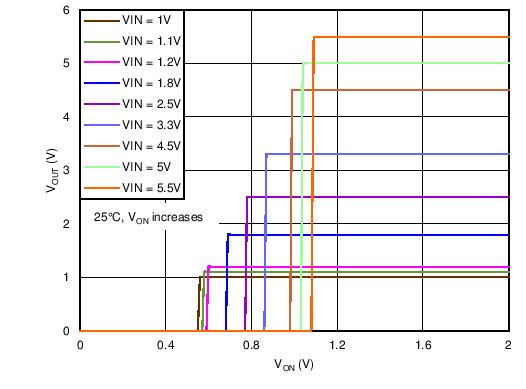

TPS22963C TPS22964C C009_TPS22964_VOUT_vs_VON_R.png

Figure 9. Output Voltage vs V_ON Rising

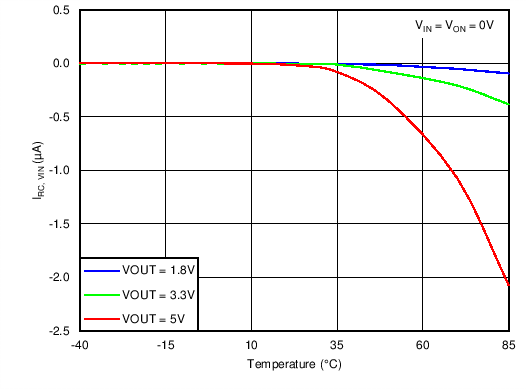

TPS22963C TPS22964C C011_TPS22964_IRCP_vs_Temp.png

Figure 11. Reverse Current When Disabled vs Temperature

TPS22963C TPS22964C C004_TPS22964_Ron_vs_Temp.png

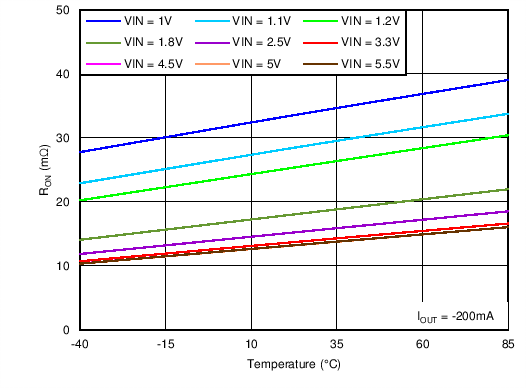

Figure 2. On Resistance vs Temperature

TPS22963C TPS22964C C002_TPS22964_IQ_vs_Temp.png

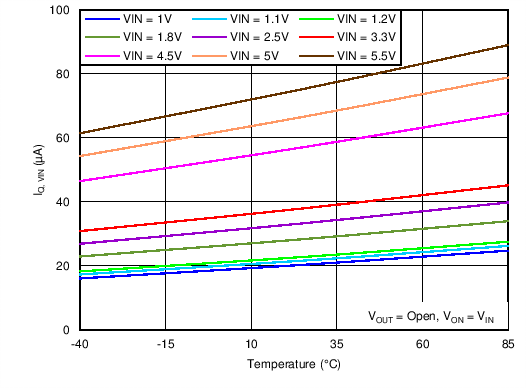

Figure 4. Quiescent Current vs Temperature

TPS22963C TPS22964C C006_TPS22964_ISD_vs_Temp.png

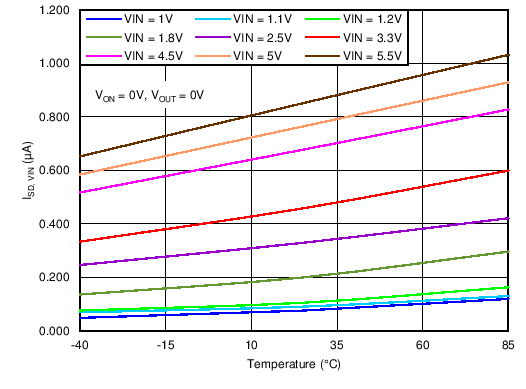

Figure 6. Shut Down Current vs Temperature

TPS22963C TPS22964C C008_TPS22964_VHYS_vs_VIN.png

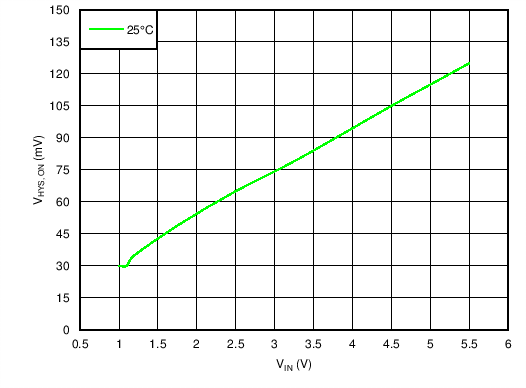

Figure 8. On Pin Hysteresis vs V_IN

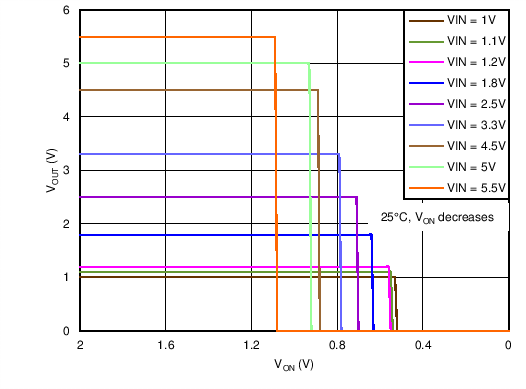

TPS22963C TPS22964C C010_TPS22964_VOUT_vs_VON_F.png

Figure 10. Output Voltage vs V_ON Falling

8.8 Typical Switching Characteristics

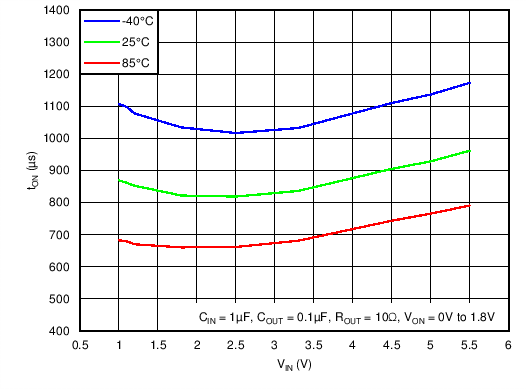

TPS22963C TPS22964C C012_TPS22964_tON_vs_Vin.png

Figure 12. Turn-On Time vs V_IN

TPS22963C TPS22964C C016_TPS22964_tr_vs_Vin_CL0p1.png

Figure 14. V_OUT Rise Time vs V_IN

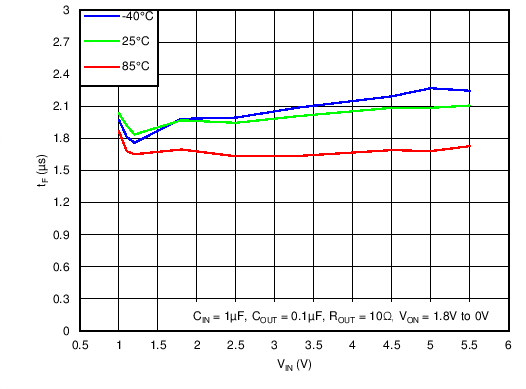

TPS22963C TPS22964C C014_TPS22964_tFall_vs_VIN.png

Figure 16. V_OUT Fall Time vs V_IN

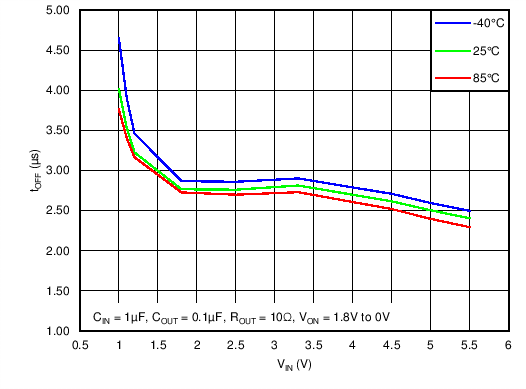

TPS22963C TPS22964C C013_TPS22964_tOFF_vs_VIN.png

Figure 13. Turn-Off Time vs V_IN

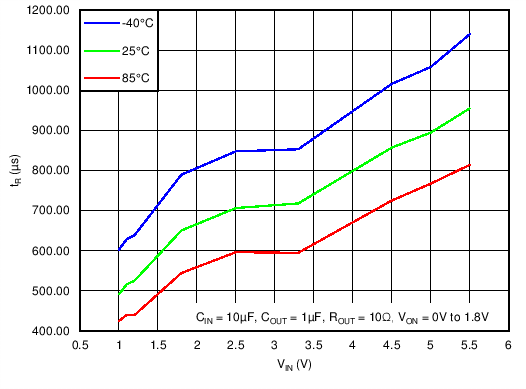

TPS22963C TPS22964C C017_TPS22964_tr_vs_Vin_Cl1p0.png

Figure 15. V_OUT Rise Time vs V_IN

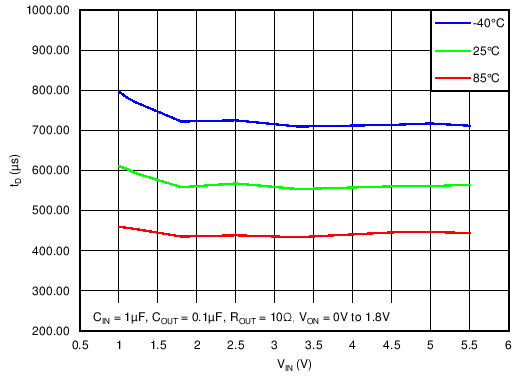

TPS22963C TPS22964C C015_TPS22964_tD_vs_VIN.png

Figure 17. Delay Time vs V_IN

8.9 Typical AC Scope Captures at T_A = 25ºC

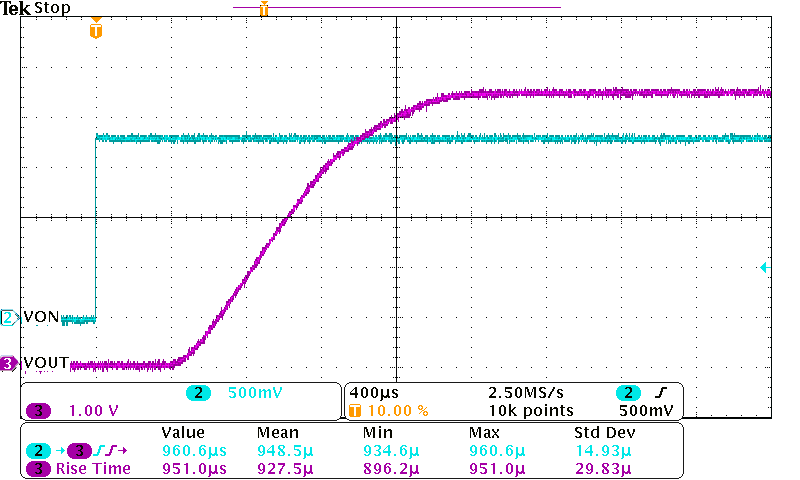

TPS22963C TPS22964C Ton_Trisel_VIN_5p5V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure1.png

Figure 18. Turn-On Response Time (V_IN = 5.5 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

TPS22963C TPS22964C Ton_Trise_VIN_5p0V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure3.png

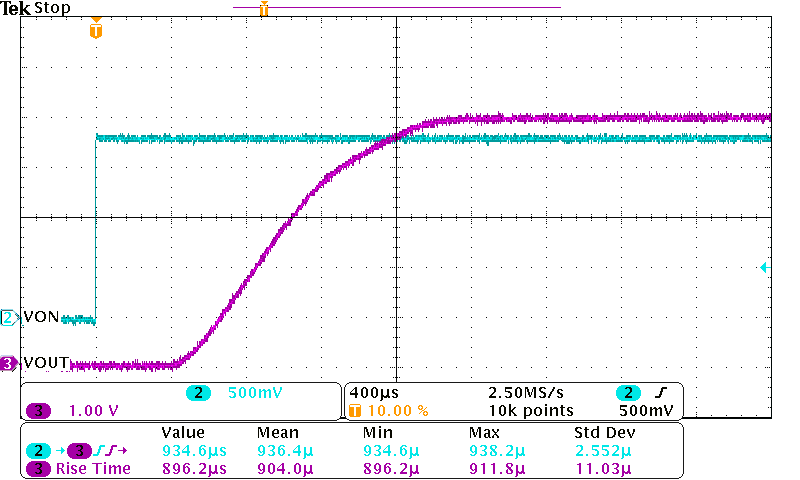

Figure 20. Turn-On Response Time (V_IN = 5 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

TPS22963C TPS22964C Ton_Trise_VIN_4p5V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure5.png

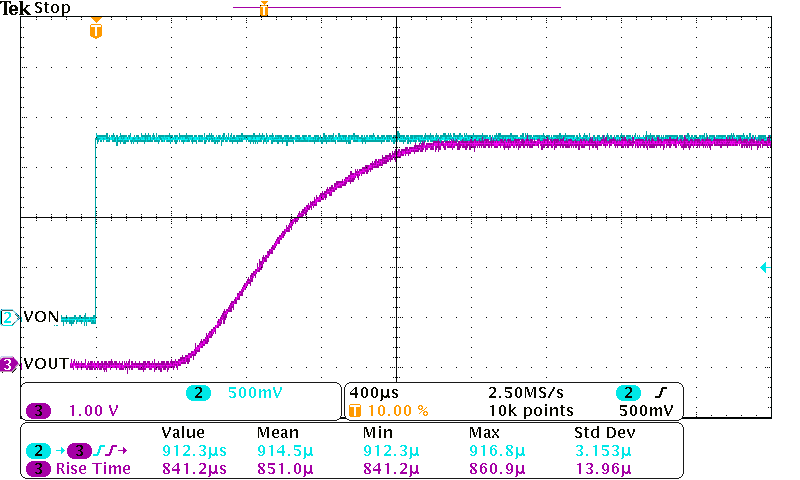

Figure 22. Turn-On Response Time (V_IN = 4.5 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

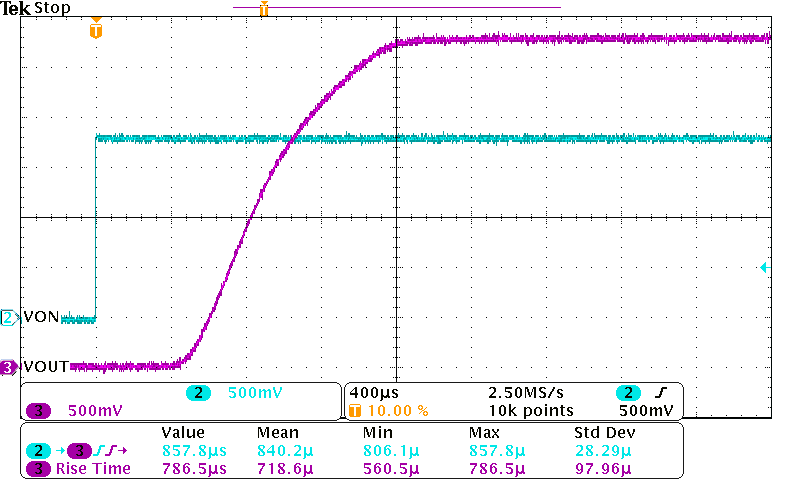

TPS22963C TPS22964C Ton_Trise_VIN_3p3V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure7.png

Figure 24. Turn-On Response Time (V_IN = 3.3 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

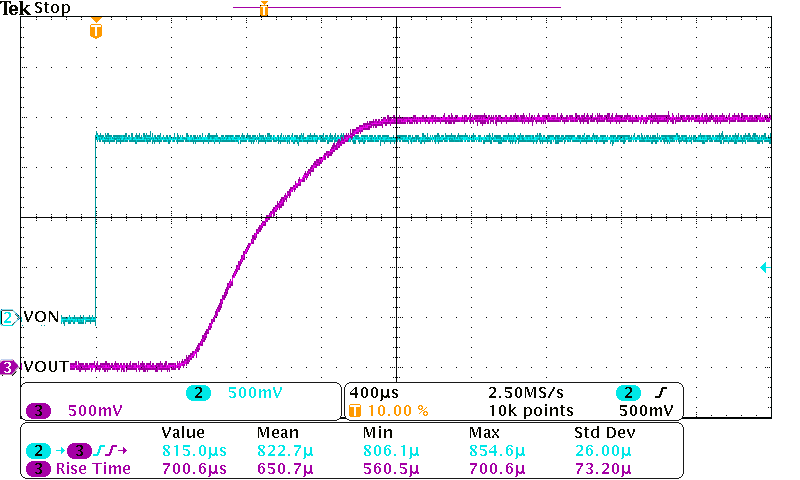

TPS22963C TPS22964C Ton_Trise_VIN_2p5V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure9.png

Figure 26. Turn-On Response Time (V_IN = 2.5 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

TPS22963C TPS22964C Ton_Trise_VIN_1p8V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure11.png

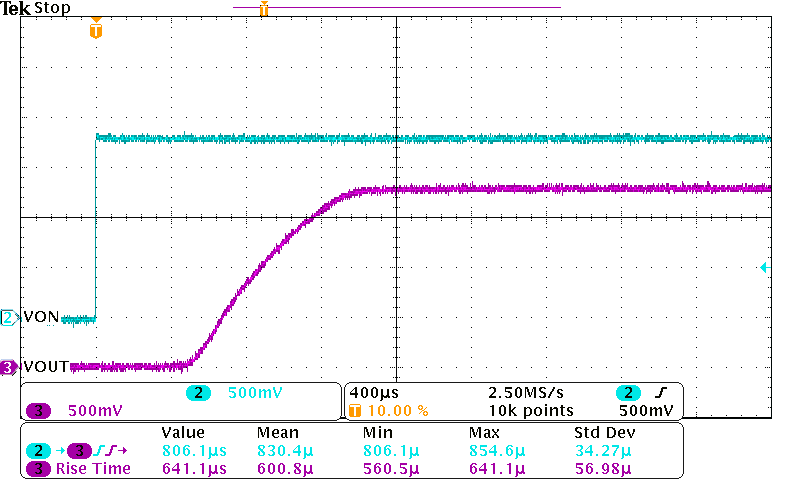

Figure 28. Turn-On Response Time (V_IN = 1.8 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

TPS22963C TPS22964C Ton_Trise_VIN_1p2V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure13.png

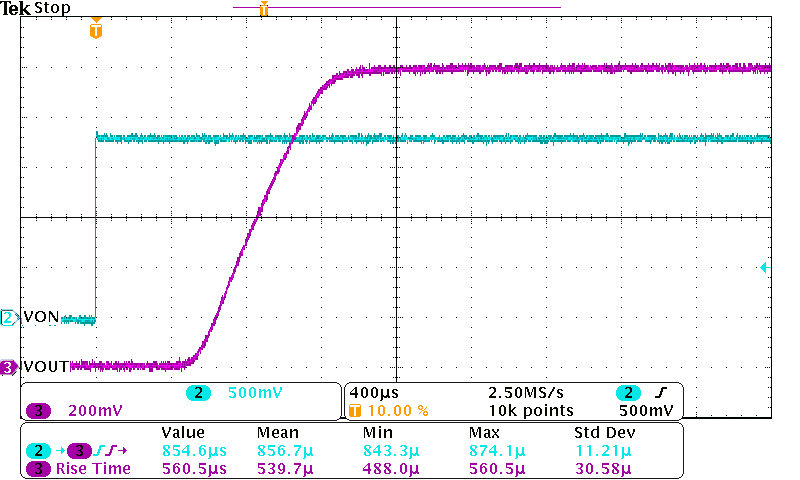

Figure 30. Turn-On Response Time (V_IN = 1.2 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

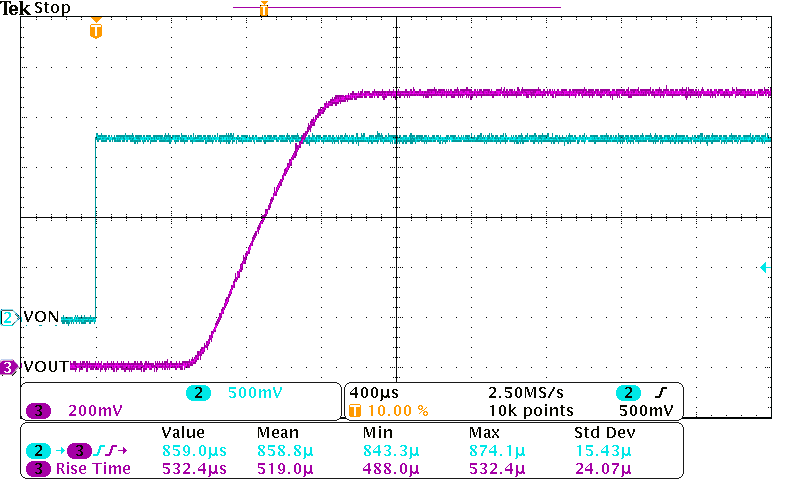

TPS22963C TPS22964C Ton_Trise_VIN_1p1V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure15.png

Figure 32. Turn-On Response Time (V_IN = 1.1 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

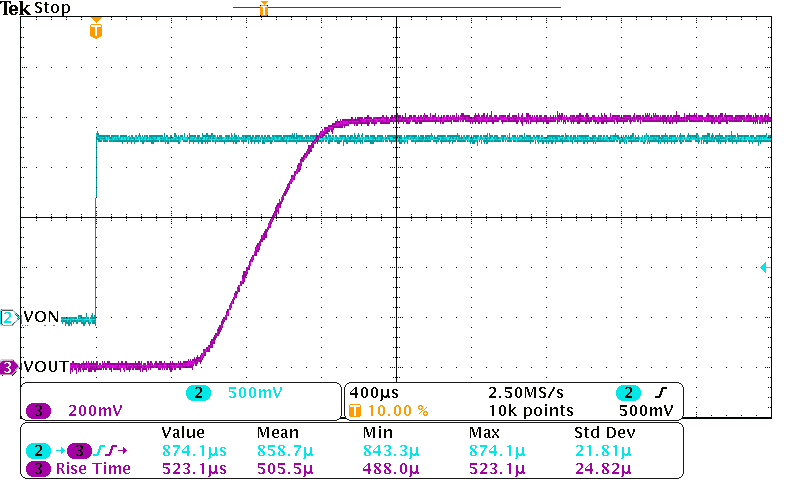

TPS22963C TPS22964C Ton_Trise_VIN_1p0V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure17.png

Figure 34. Turn-On Response Time (V_IN = 1 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

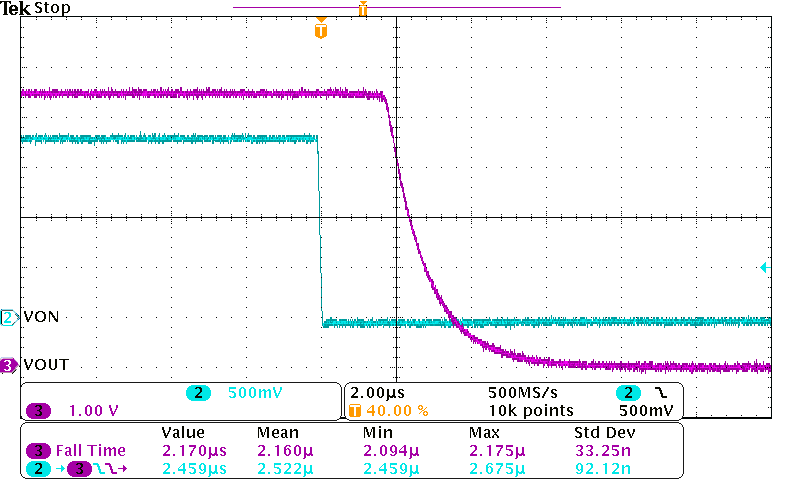

TPS22963C TPS22964C Toff_Tfalll_VIN_5p5V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure2.png

Figure 19. Turn-Off Response Time (V_IN = 5.5 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

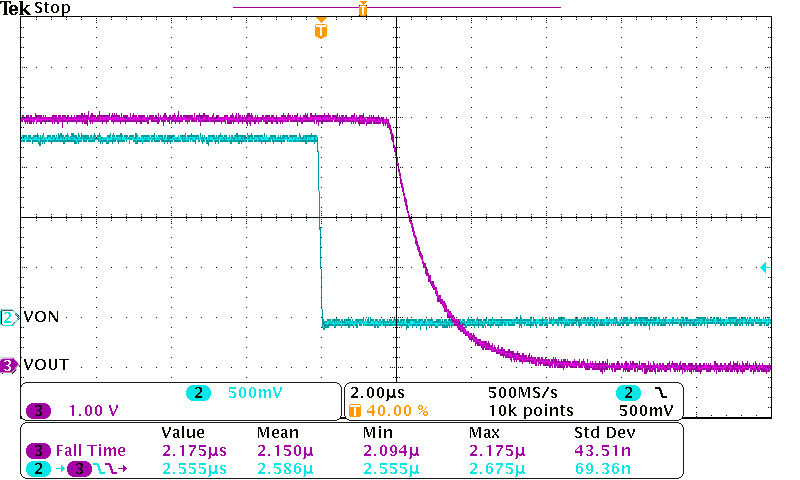

TPS22963C TPS22964C Toff_Tfalll_VIN_5p0V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure4.png

Figure 21. Turn-Off Response Time (V_IN = 5 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

TPS22963C TPS22964C Toff_Tfalll_VIN_4p5V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure6.png

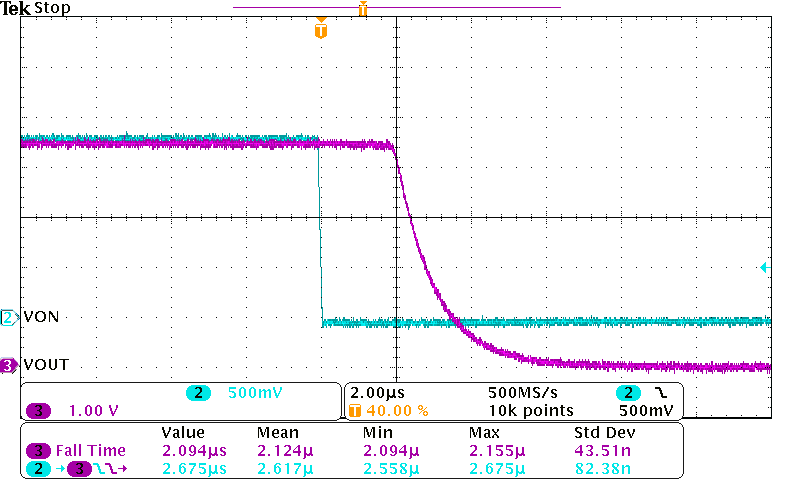

Figure 23. Turn-Off Response Time (V_IN = 4.5 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

TPS22963C TPS22964C Toff_Tfalll_VIN_3p3V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure8.png

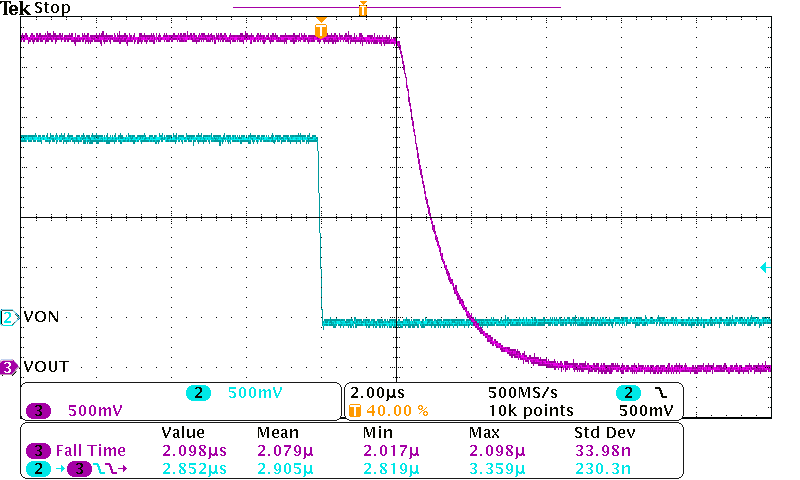

Figure 25. Turn-Off Response Time (V_IN = 3.3 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

TPS22963C TPS22964C Toff_Tfalll_VIN_2p5V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure10.png

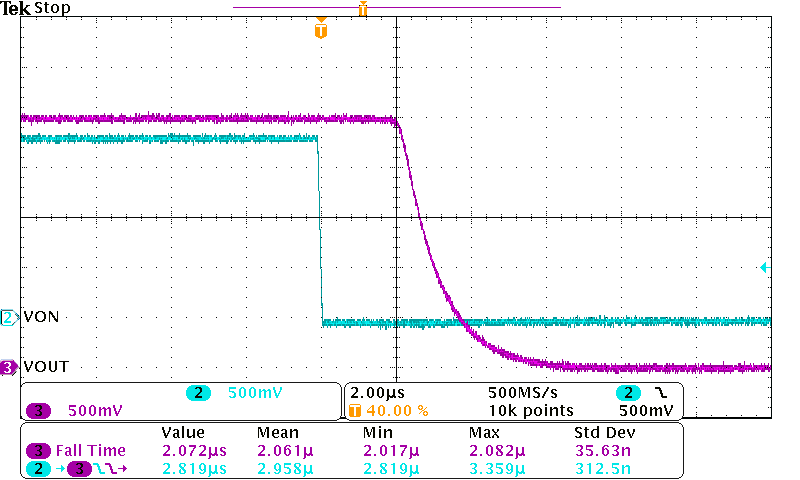

Figure 27. Turn-Off Response Time (V_IN = 2.5 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

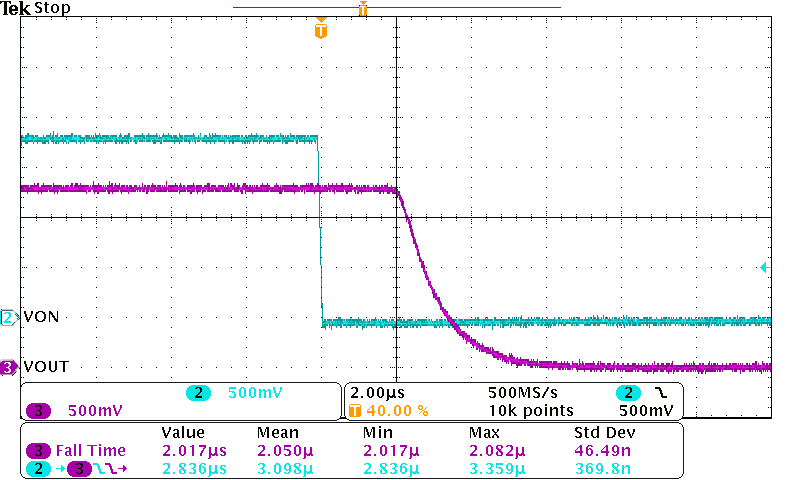

TPS22963C TPS22964C Toff_Tfalll_VIN_1p8V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure12.png

Figure 29. Turn-Off Response Time (V_IN = 1.8 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

TPS22963C TPS22964C Toff_Tfalll_VIN_1p2V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure14.png

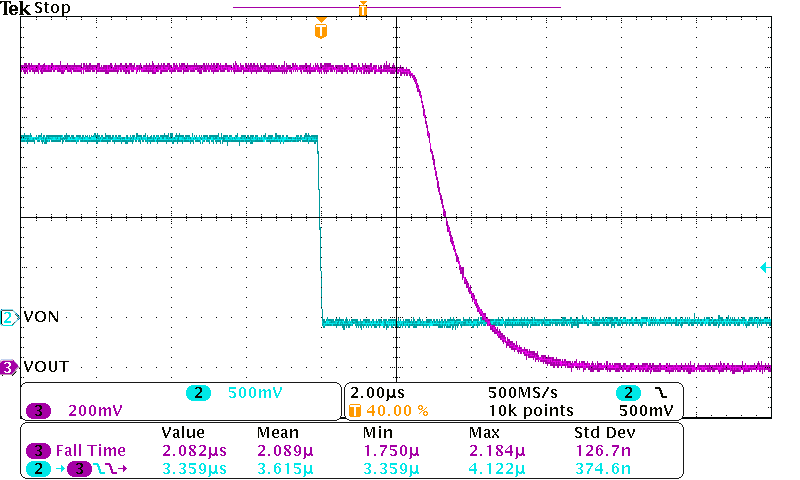

Figure 31. Turn-Off Response Time (V_IN = 1.2 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

TPS22963C TPS22964C Toff_Tfalll_VIN_1p1V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure16.png

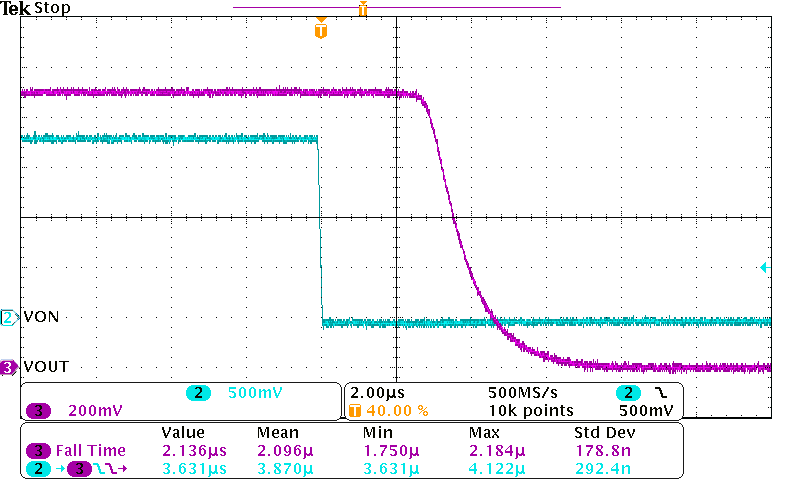

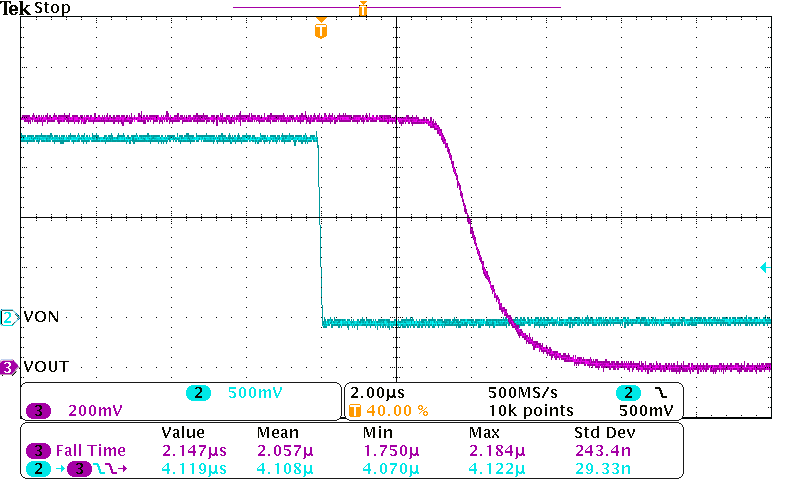

Figure 33. Turn-Off Response Time (V_IN = 1.1 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)

TPS22963C TPS22964C Toff_Tfalll_VIN_1p0V_CIN_1uF_COUT_0p1uF_RLOAD_10ohms_Unit42_Figure18.png

Figure 35. Turn-Off Response Time (V_IN = 1 V, C_IN = 1 µF, C_OUT = 0.1 µF, R_OUT = 10 Ω)
