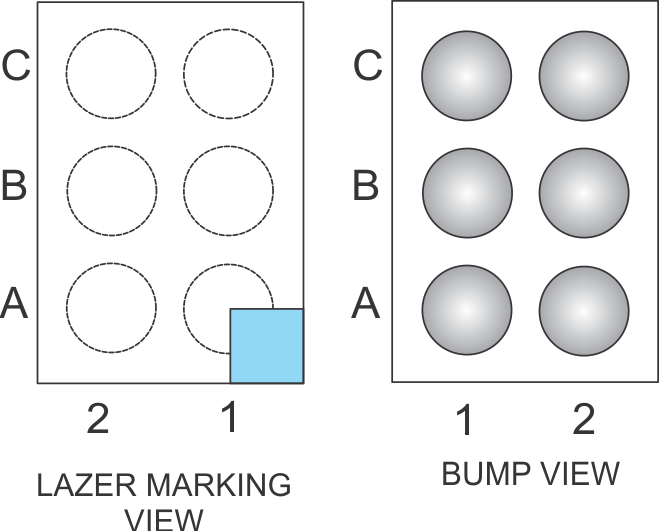

7 Pin Configuration and Functions
6-PINS
YZP PACKAGE
Pin Assignments (YZP Package)
| C | GND | ON |
| B | VOUT | VIN |
| A | VOUT | VIN |
| 1 | 2 |
Pin Functions
| PIN | I/O | DESCRIPTION | |
|---|---|---|---|
| TPS22963/64 | NAME | ||
| C1 | GND | - | Ground |
| C2 | ON | I | Switch control input, active high. Do not leave floating |
| A1, B1 | VOUT | O | Switch output |
| A2, B2 | VIN | I | Switch input. Use a bypass capacitor to ground (ceramic) |
