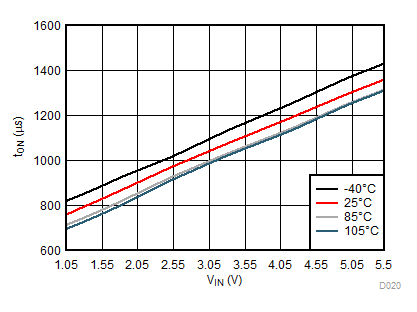

6.9 典型交流特性 (TPS22914C/15C)
| CIN = 1μF | RL = 10Ω | CL = 0.1μF |

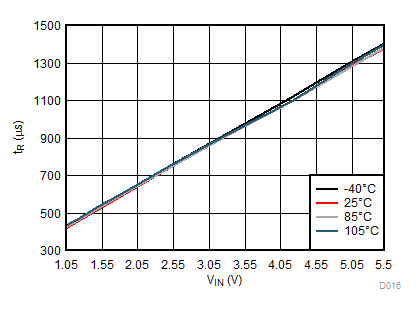

| CIN = 1μF | RL = 10Ω | CL = 0.1μF |

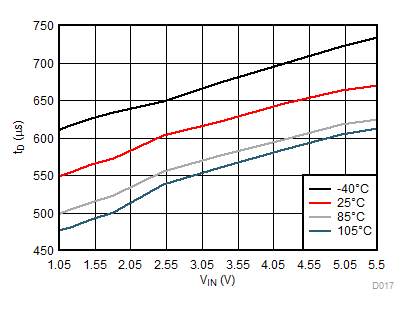

| CIN = 1μF | RL = 10Ω | CL = 0.1μF |

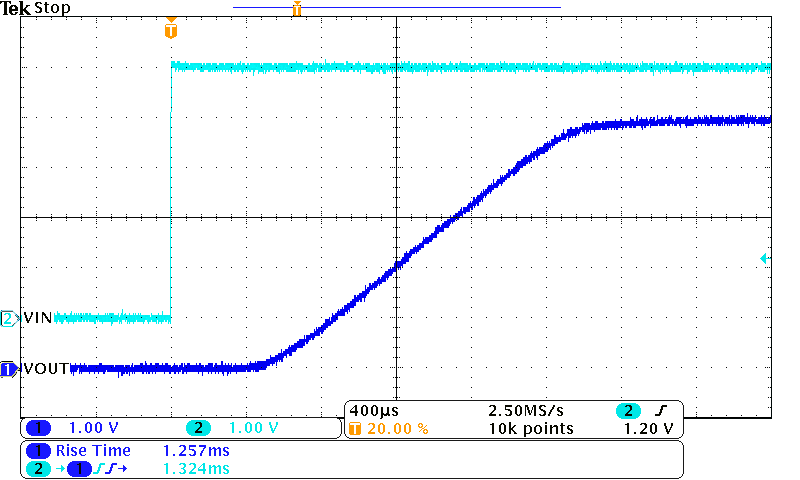

| VIN = 5V | CIN = 1μF | CL = 0.1μF |
| RL = 10Ω |

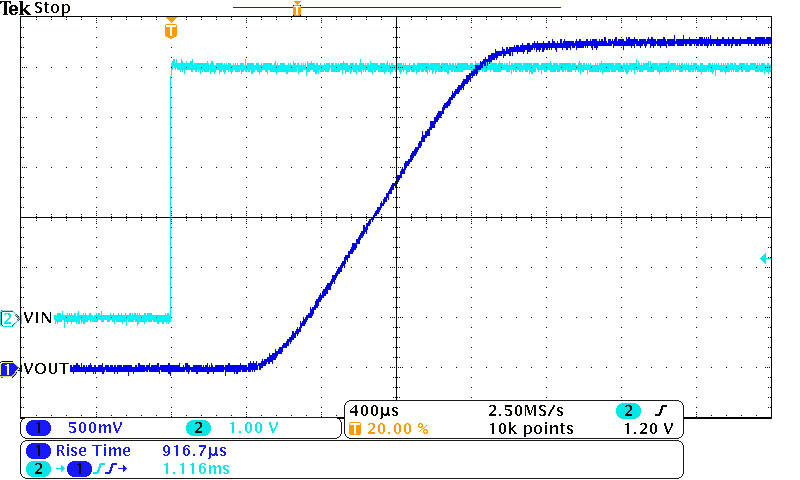

| VIN = 3.3V | CIN = 1μF | CL = 0.1μF |
| RL = 10Ω |

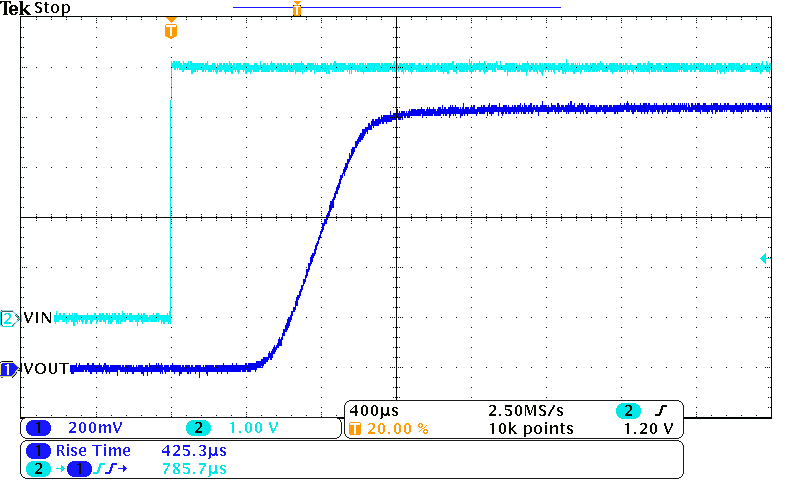

| VIN = 1.05V | CIN = 1μF | CL = 0.1μF | ||
| RL = 10Ω |

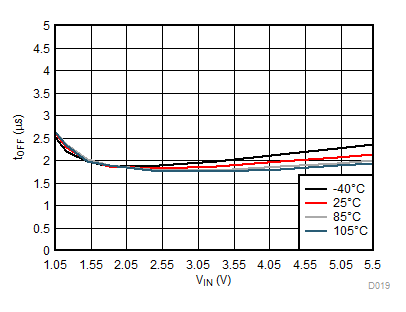

| CIN = 1μF | RL = 10Ω | CL = 0.1μF |

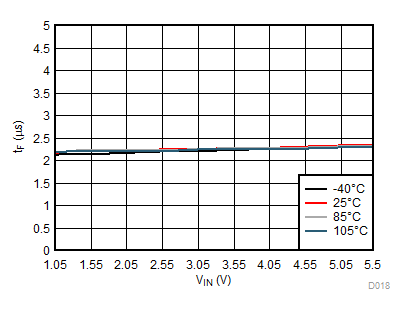

| CIN = 1μF | RL = 10Ω | CL = 0.1μF |

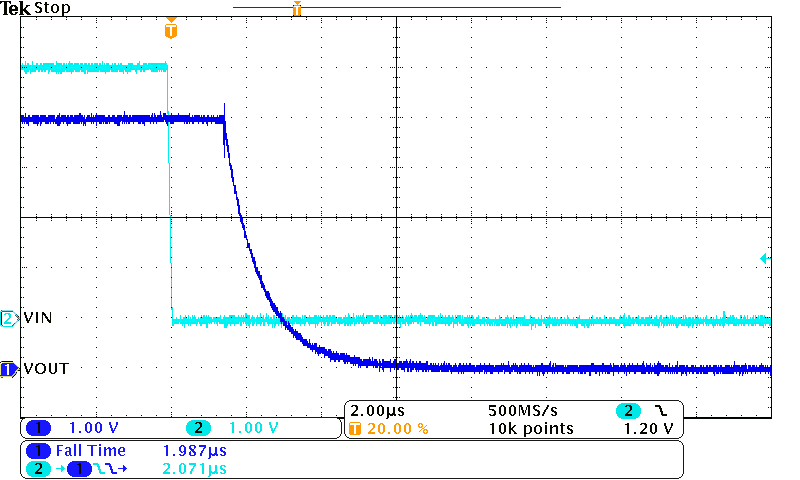

| VIN = 5V | CIN = 1μF | CL = 0.1μF |
| RL = 10Ω | ||

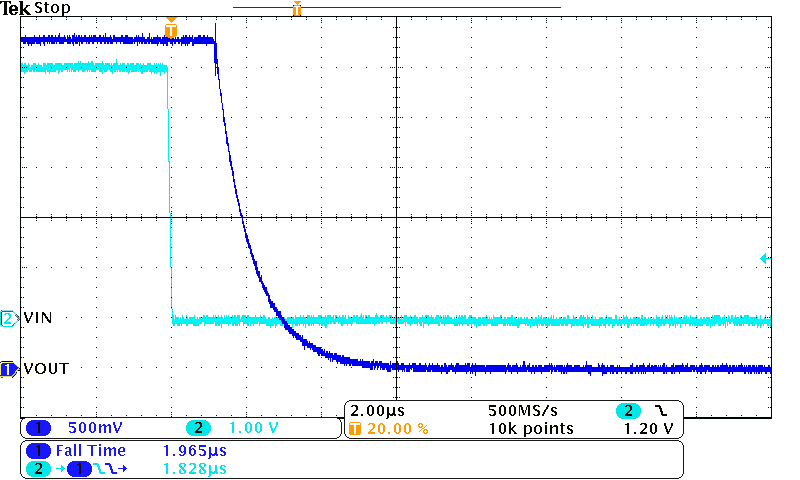

| VIN = 3.3V | CIN = 1μF | CL = 0.1μF |
| RL = 10Ω |

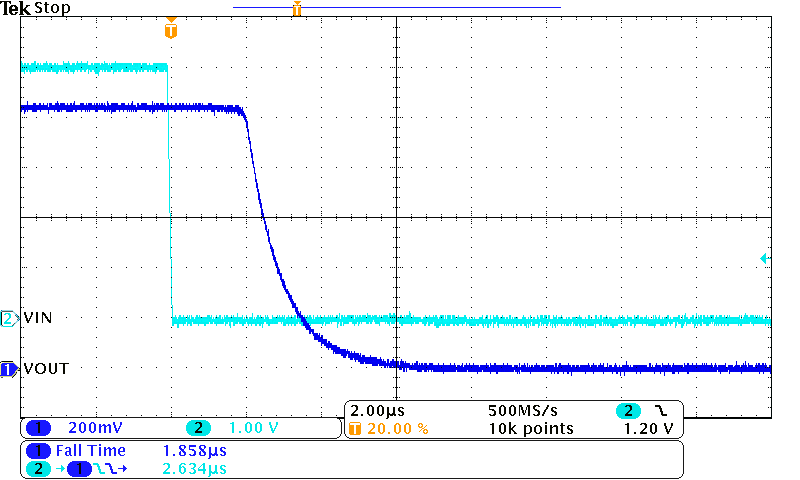

| VIN = 1.05V | CIN = 1μF | CL = 0.1μF |
| RL = 10Ω |
