9.2.3 Application Curves

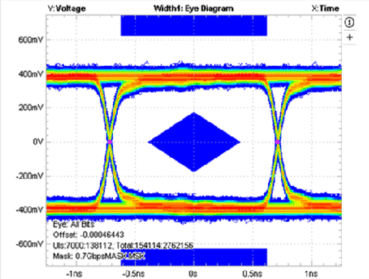

| The TMUX136 contributes only 8.4 ps of peak-to-peak jitter for 0.7-Gbps data rate | ||
| The TMUX136 contributes only 3.8 ps of peak-to-peak jitter for 2.2-Gbps data rate |

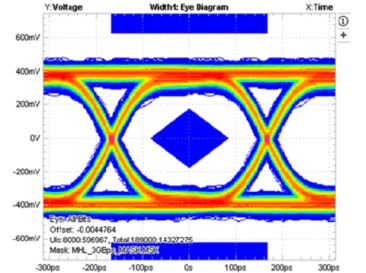

| The TMUX136 contributes only 5.8 ps of peak-to-peak jitter for 3-Gbps data rate | ||

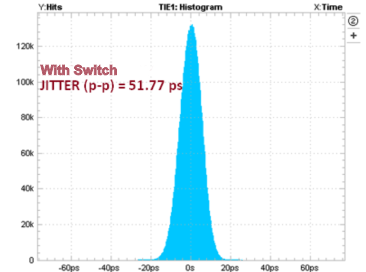

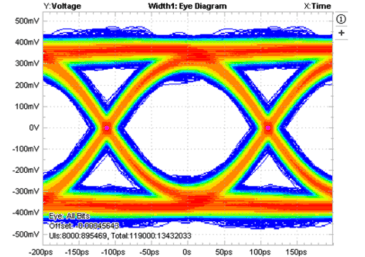

| The TMUX136 contributes only 7.6 ps of peak-to-peak jitter for 4.5-Gbps data rate |

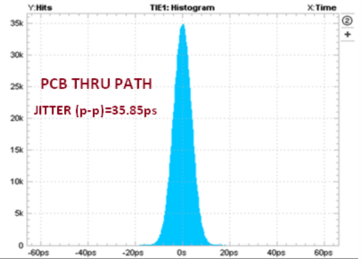

Figure 9-3 Time
Interval Error Histogram: 0.7 Gbps with No Device
| The TMUX136 contributes only 8.4 ps of peak-to-peak jitter for 0.7-Gbps data rate |
Figure 9-7 Time
Interval Error Histogram: 2.2 Gbps with No Device

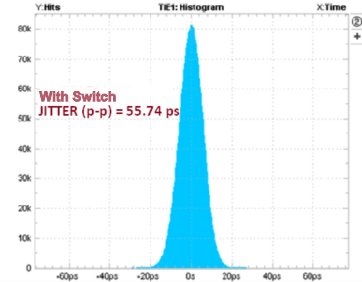

| The TMUX136 contributes only 3.8 ps of peak-to-peak jitter for 2.2-Gbps data rate |

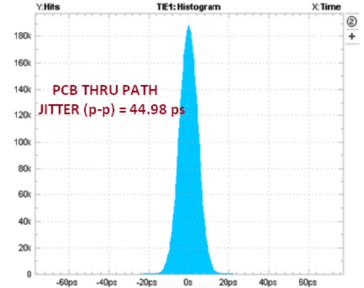

Figure 9-11 Time
Interval Error Histogram: 3 Gbps with No Device
| The TMUX136 contributes only 5.8 ps of peak-to-peak jitter for 3-Gbps data rate |

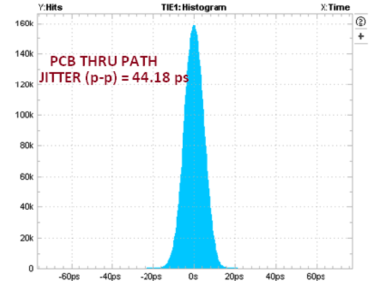

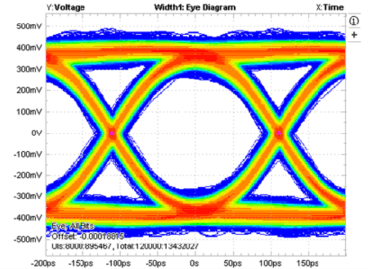

| The TMUX136 contributes only 7.6 ps of peak-to-peak jitter for 4.5-Gbps data rate |
