7 Parameter Measurement Information
A. All input pulses are supplied
by generators having the following characteristics: PRR ≤ 10 MHz,
ZO = 50 Ω , tr < 5 ns, tf < 5
ns.
B. CL includes probe
and jig capacitance.

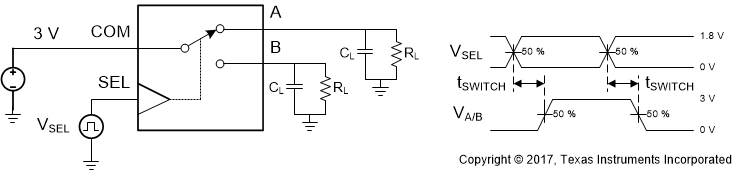

Figure 7-1 Timing Diagram

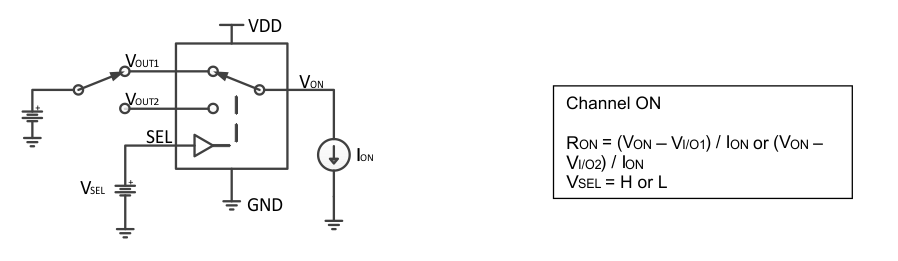

Figure 7-2 ON-State Resistance (RON)
Figure 7-3 OFF
Leakage Current (IOZ)
Figure 7-4 Bandwidth (BW)
