7.2.5 Ultra-low Leakage Current
The TMUX1104 provides extremely low on-leakage and off-leakage currents. The TMUX1104 is capable of switching signals from high source-impedance inputs into a high input-impedance op amp with minimal offset error because of the ultra-low leakage currents. Figure 7-2 shows typical leakage currents of the TMUX1104 versus temperature.

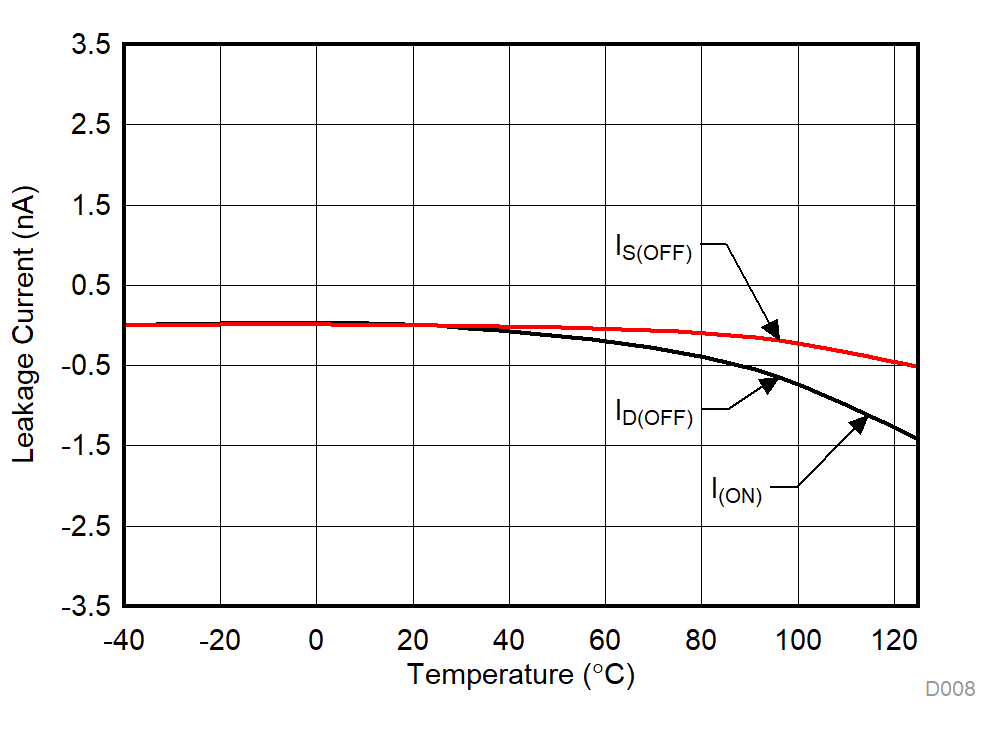

Figure 7-2 Leakage Current vs Temperature
