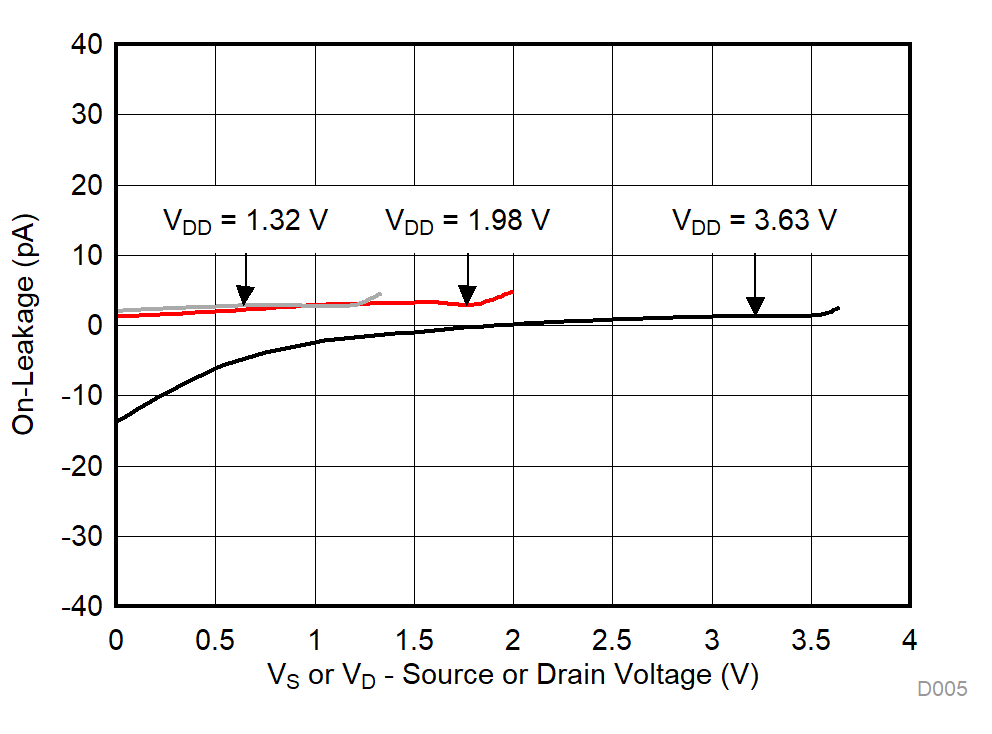

8.2.3 Application Curve
The TMUX1104 is capable of switching signals from high source-impedance inputs into a high input-impedance op amp with minimal offset error because of the ultra-low leakage currents.
| TA = 25°C |
