8.10 Typical Characteristics
at TA = 25°C, V+ = 3.3 V, and apply to D, DGK, and DSG packages (unless otherwise noted)

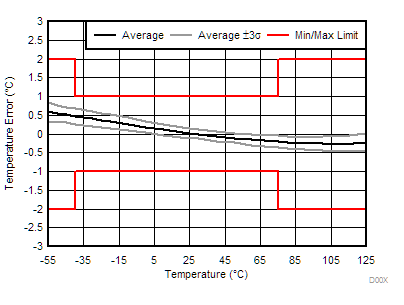

Figure 8-1 DGK & D Temperature Error vs. Temperature
Figure 8-3 TMP1075NDRL Temperature Error vs. Temperature
Figure 8-5 Average Current vs. Conversion Rates and Temperature

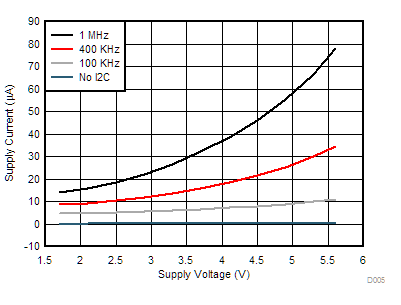

Figure 8-7 Supply Current vs. I2C Bus Clock and Supply Voltage in Shutdown Mode

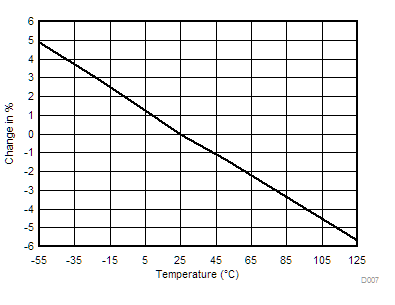

Figure 8-9 Sampling Period Change vs. Temperature (1.7 V to 5.5 V)
Figure 8-2 DSG Temperature Error vs. Temperature

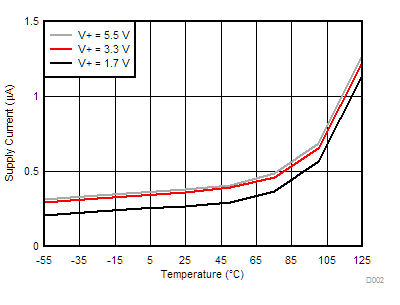

Figure 8-4 Shutdown Current vs. Temperature
Figure 8-6 Supply Current vs. Input Cell Voltage
Figure 8-8 ALERT Pin Output Voltage vs. Sink Current
