5.8 TTL Output Switching Characteristics
over recommended operating conditions (unless otherwise noted)
| PARAMETER | TEST CONDITIONS | MIN | TYP | MAX | UNIT | |
|---|---|---|---|---|---|---|
| VOH | High-level output voltage | IOH = –2mA, VDD = MIN | 2.1 | 2.3 | V | |
| VOL | Low-level output voltage | IOL = 2mA, VDD = MIN | 0.25 | 0.5 | V | |
| tr(slew) | Slew rate (rising), magnitude of RXCLK, RKLSB, RKMSB, RXD0 to RXD15 | 0.8V to 2V, C = 5pF, see Figure 5-2 | 0.5 | V/ns | ||
| tf(slew) | Slew rate (falling), magnitude of RXCLK, RKLSB, RKMSB, RXD0 to RXD15 | 0.8V to 2V, C = 5pF, see Figure 5-2 | 0.5 | V/ns | ||
| tsu | RXD0 to RXD15, RKMSB, RKLSB setup to ↑ RXCLK | 50% voltage swing, TXCLK = 80MHz, see Figure 5-2(1) | 3 | ns | ||
| 50% voltage swing, TXCLK = 125MHz, see Figure 5-2(1) | 2.5 | |||||
| th | RXD0 to RXD15, RKMSB, RKLSB hold to ↑ RXCLK | 50% voltage swing, TXCLK = 80MHz, see Figure 5-2(1) | 3 | ns | ||
| 50% voltage swing, TXCLK = 125MHz, see Figure 5-2(1) | 2 | |||||
(1) Nonproduction tested parameters.
Figure 5-1 TTL Data Input Valid Levels for AC Measurements
Figure 5-2 TTL Data Output Valid Levels for AC Measurements

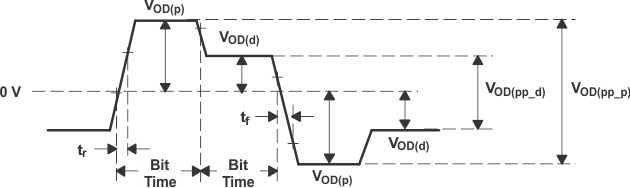

Figure 5-3 Differential and Common-Mode Output Voltage

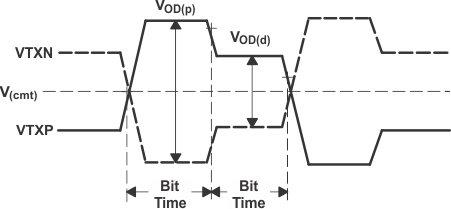

Figure 5-4 Common-Mode Output Voltage Definitions
